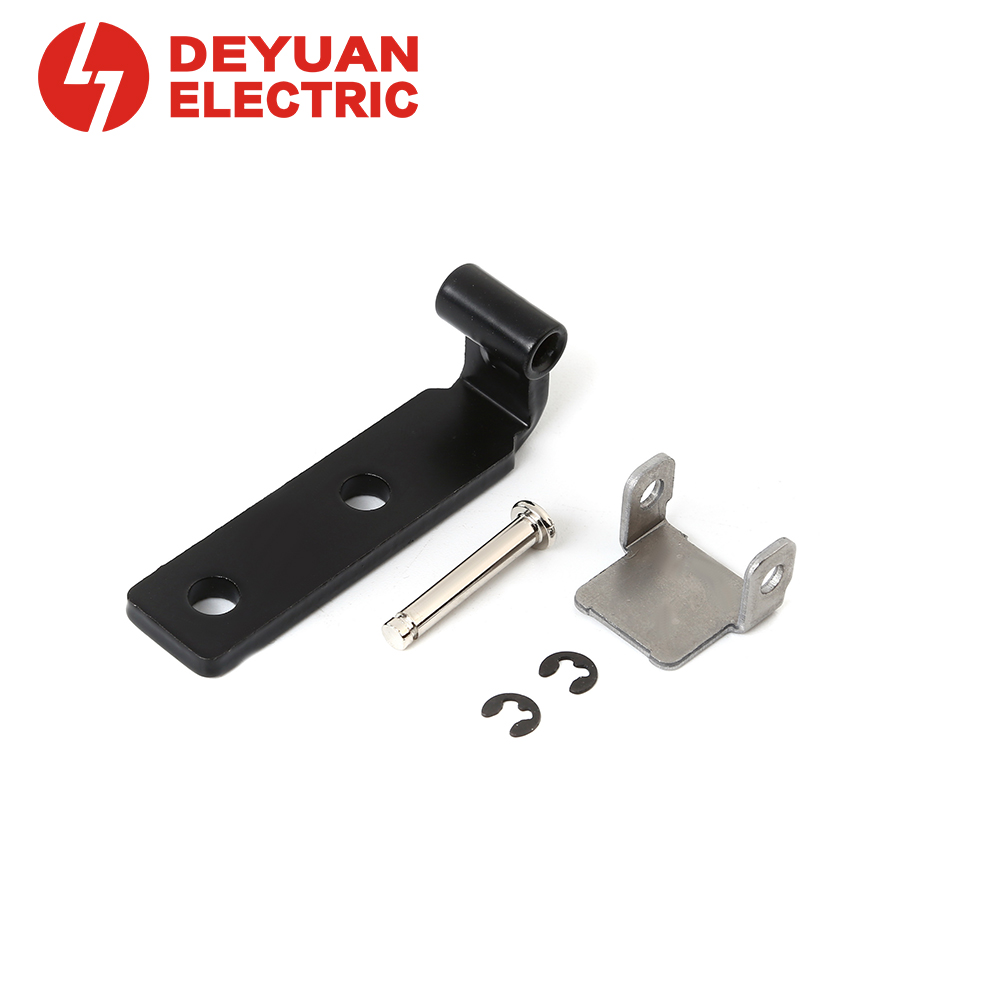

DJL3‑4 LV Switchgear Concealed Drawer Hinge
For low voltage switchgear drawers – cold rolled steel
The DJL3‑4 concealed hinge is specifically designed for drawout switchgear drawers. Made from cold rolled steel (CRS) , it provides reliable, corrosion‑resistant pivoting for drawer front panels. The concealed design ensures a clean, professional appearance while maintaining smooth operation and long service life.
Contact Us
Product Details
| Property | Value |
| Material | Cold rolled steel (CRS / SPCC) |
| Surface treatment | Powder Coating |
| Thickness | 1.5 mm – 2.0 mm |
| Application | Drawer front panel mounting |
- Cold rolled steel construction – High strength, durable, and rigid
- Concealed design – Hidden when door is closed, clean aesthetic
- Zinc‑plated finish – Corrosion resistance for indoor switchgear environments
- Easy mounting – Pre‑drilled holes for quick assembly
- Smooth operation – Precision‑formed barrel for consistent pivoting
- Compatible with drawer front panels – Fits standard MNS, GCS, and similar drawers
| Feature | Size / Position |
| Hole diameter | Φ5.2 mm (for hinge mounting) |
| Through holes (pair) | 2‑Φ5 mm (back‑to‑back fixing) |
| Recommended screw | M4 or M5 self‑tapping screw |
