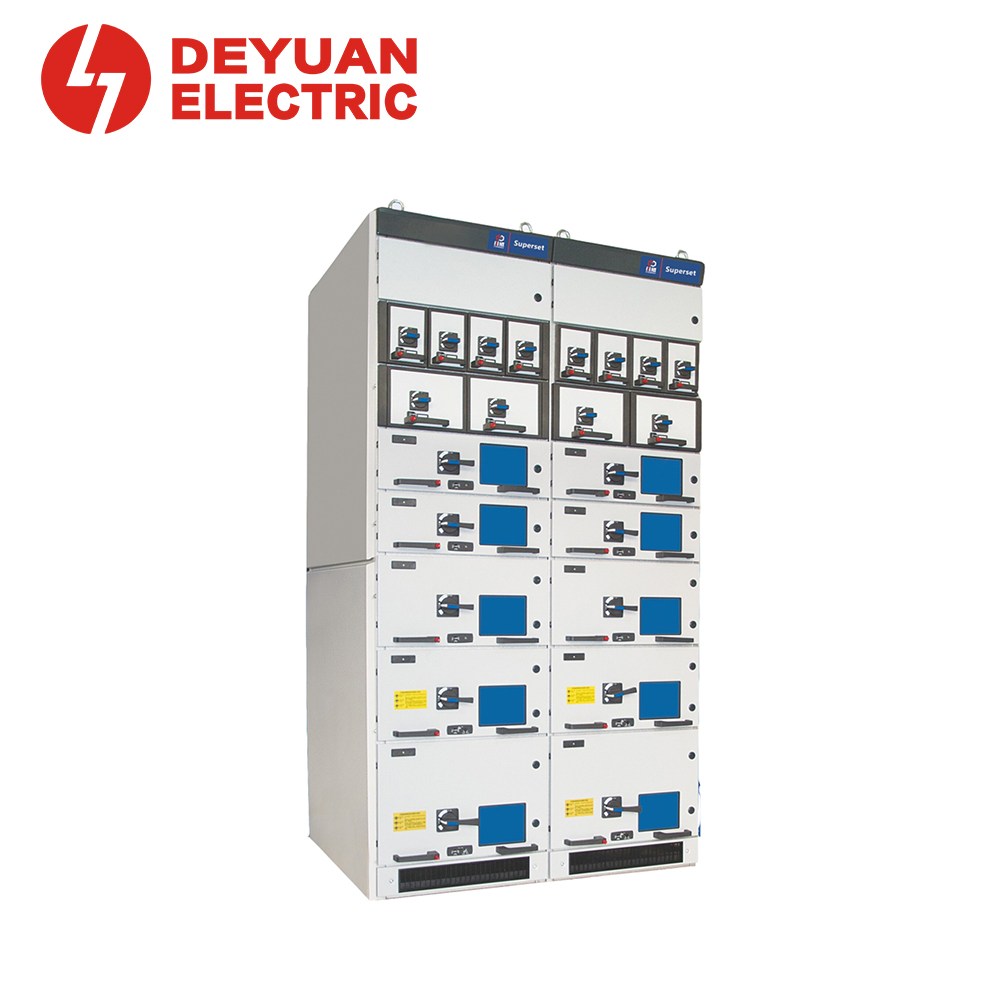

New Low Voltage Switchgear Enclosure (SUPERSET)
New Low Voltage Switchgear Enclosure (SUPERSET)
The Superset (S-Frame) New Low-Voltage Switchgear Enclosure is developed on the basis of GCK, MNS and GCS series, absorbing their electrical and structural advantages while undergoing extensive secondary development.
The result is a fully optimized, highly integrated enclosure with significant universality – its structure and electrical parameters can completely replace traditional platforms. Superset offers a future‑proof, modular solution for power distribution, motor control, and infrastructure projects.
Contact Us
Product Details
Frame Structure – Strength & Precision
The frame uses standard C‑profile (25mm thickness). For high‑tolerance current schemes, a thickened profile (37.5mm) is available.
The G‑beam ends adopt a bending and overlapping buckle design, improving installation accuracy and structural strength.
Integrated bending plates and high‑strength screws ensure reliable frame connections.
Frame connection – stable, high forming precision. Suitable for demanding environments.
Busbar Position & Cable Entry
- Horizontal Busbar Position – Upper part of enclosure
- Incoming Types – Top overhead, bottom incoming
- Cable Entry Directions – Rear bottom, rear top, side bottom, side top
Applications
- Incoming / Bus‑coupler – Standard fixed sections
- Capacitor Banks – Automatic power factor correction
- Variable Frequency Drives (VFD) – Standard integration
- Harmonic Filters – Standard or custom
- Feeder Circuits – Fixed partition or mixed fixed + withdrawable designsMotor control centers (MCC) – Drawer units with hand‑pull or hand‑cranked mechanisms
- We design and manufacture according to customer specifications.
Why Choose Superset?
- Universal Replacement – Directly replaces GCK, MNS, GCS without electrical or structural changes
- High Strength – Thickened profile option for extreme short‑circuit conditions
- Modular Mechanism – Hand‑pull, hand‑cranked, or motorized – same drawer, same cutout
- Flexible Wiring – Rear or side wiring condapters, all‑metal, up to 32 secondary wires
- Humanized Details – Double‑bent edges, steel rivets, positioning slots – safe and efficient assembly
- Universal Design – Compatible with GCK, MNS, GCS accessories and electrical parameters
- Robust Frame – Standard C‑profile (25mm) or thickened profile (37.5mm) for high short‑circuit withstand capability
- Flexible Drawer Options – 1/4, 1/2, 8E, 12E, 16E, 20E, 24E with currents up to 630A
- Multiple Operating Mechanisms – Hand‑pull, hand‑cranked, or motorized – freely switchable
| Technical Specifications | |
| Parameter | Value |
| Rated insulation voltage (Ui) | 1000V |
| Rated operating voltage (Ue) | 400V / 690V |
| Rated impulse withstand voltage (Uimp) | 12kV |
| Overvoltage category | IV |
| Pollution degree | 3 |
| Rated frequency | 50 / 60 Hz |
| Main Busbar | |
| Parameter | Rating |
| Rated current (Ie) | ≤6300A |
| Rated peak withstand current (Ipk) | ≤220kA |
| Rated short‑time withstand current (Icw/1s) | ≤110kA |
| Drawer Unit Ratings | |
| Module | Max Current |
| 8E/4 | 63A |
| 8E/2 | 125A |
| 8E, 12E | 250A |
| 16E | 400A |
| 20E, 24E | 630A |
| Fault Arc Protection | |
| Parameter | Value |
| Operating voltage | 400V / 690V |
| Expected short‑circuit current | 100kA / 65kA |
| Duration | 300ms |
| Protection & Isolation | |
| Item | Rating |
| Enclosure protection (IP) | IP4X (standard), higher on request |
| Internal compartment protection | IP2X |
| Internal isolation type | 3a / 3b / 4a |
| Profile module | 25mm |
Low-Voltage Switchgear Enclosure Dimensions
Standard dimensions (mm) – other sizes available on request.
| Width (W) | Depth (D) | Height (H) |
| 1000 | 1000 | 2200 |
| 800 | 1000 | 2200 |
| 600 | 1000 | 2200 |
| 1000 | 800 | 2200 |
| 800 | 800 | 2200 |
| 600 | 800 | 2200 |
| 1000 | 600 | 2200 |
| 800 | 600 | 2200 |
| 600 | 600 | 2200 |
Service Conditions
| Condition | Value |
| Ambient temperature | -5°C to +40°C |
| Max daily temperature difference | 25°C |
| Altitude | ≤2000m |
| Pollution class | III |
| Relative humidity | ≤50% at 40°C; up to 90% at 20°C |
| Earthquake intensity | ≤8 degrees |
Drawer Unit
Superset drawer units are manufactured with standardized sheet metal featuring double‑bent edges to eliminate sharp burrs and increase strength.
Positioning slots improve assembly efficiency, and steel rivets replace self‑tapping screws to avoid hand injuries.
 |  |
| Module | Rated Current | Secondary Wires | Features |
| 1/4 unit (8E/4) | ≤63A | 16, 24, 32 | Detachable plastic side panels, hand‑pull operation |
| 1/2 unit (8E/2) | ≤125A | 16, 24, 32 | All‑metal condapter (rear or side wiring) |
| 8E / 12E | ≤250A | Up to 32 | Rear wiring, strong mechanical interlock |
| 16E | ≤400A | Up to 32 | For high current feeders |
| 20E / 24E | ≤630A | Up to 32 | Incomer or large motor circuits |
 |  |
- Superset offers a modular combination of three operating mechanism types:
- Hand‑pull type operating mechanism– simple, low cost, reliable locking
- Hand‑cranked – smooth, reduced effort for high‑force drawers
- Motorized – remote control ready
- All three mechanisms share the same front panel layout and structural parts – you can switch between them at any time without modifying the drawer.
Basic Module Features:
- Modular assembly for fast delivery and easy on‑site upgrade
- Up to two sets of normally open / normally closed contacts available at TEST and WORKING positions
- Standard: 1NO+1NC at TEST position; optional additional set at WORKING position
