DLC2 Series 8E Drawer Unit
We can support your OEM/ODM needs and provide one-stop customized solutions.
DLC2 Series 8E Drawer Unit

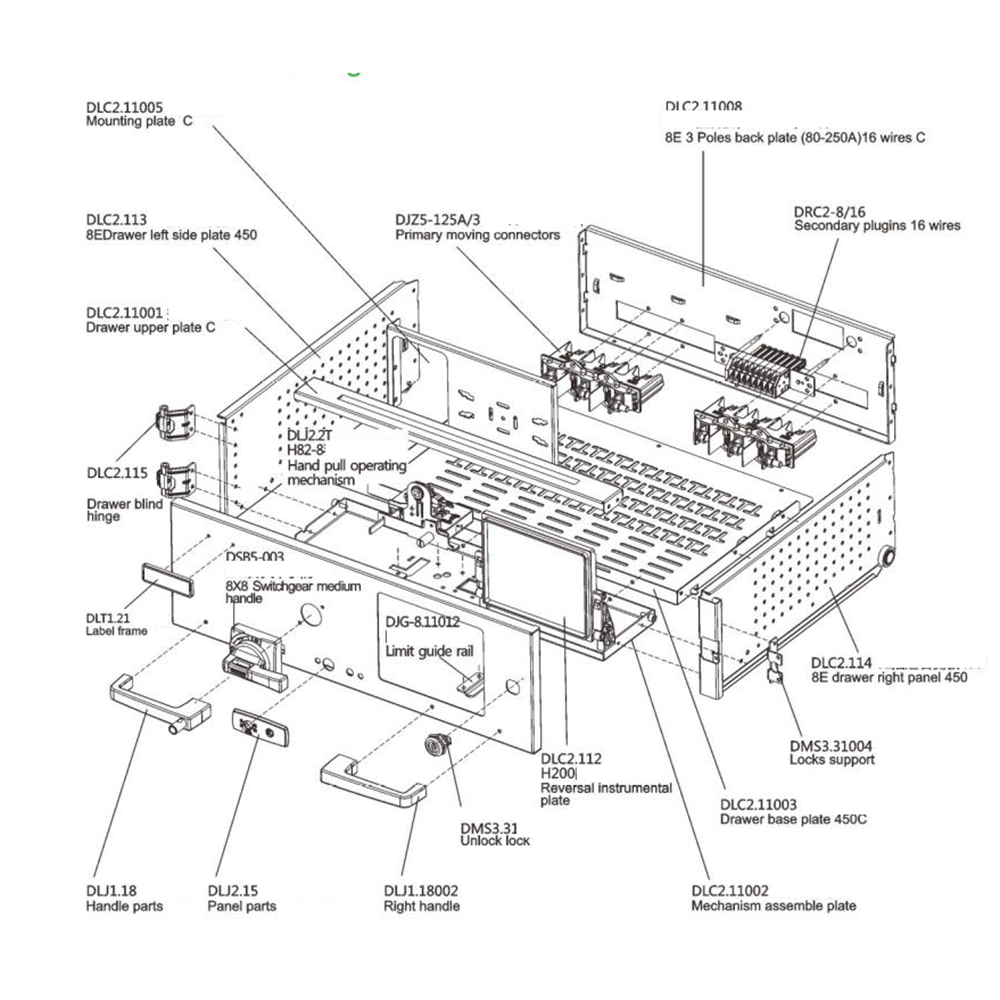

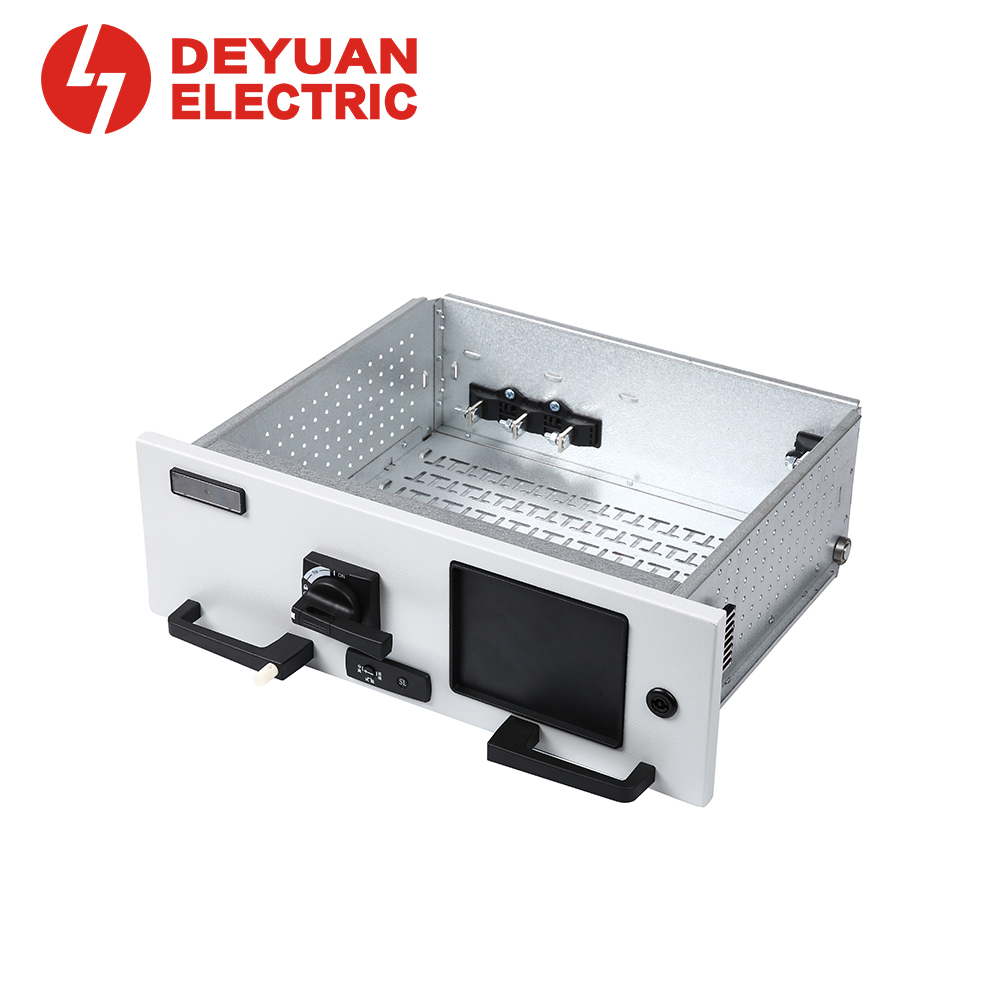

DLC2 series 8E drawer unit with hand pull operating mechanism,delivering reliable performance for low‑voltage switchgear applications.
Designed for ease of use and secure locking, this drawer unit offers flexible configurations to meet diverse project requirements.
Contact Us
Product Details
Operating Positions
- Isolation (Disconnect) – Drawer can be removed from cabinet. Press unlock button to push to TEST or CONNECTION.
- Test Position – Secondary circuit connected, primary disconnected. Press unlock button to move to CONNECTION or back to isolation.
- Connection Position – Both primary and secondary circuits connected. When main switch closes, mechanism locks drawer; can only be withdrawn after switch opens.
Ordering Information
- Please specify when ordering:
- Drawer height (150 / 200 / 300 / 400 / 600 mm)
- Handle height (67 / 82 / 119 mm)
- Rated current (125 / 250 / 400 / 630 A)
- Auxiliary switch configuration (standard or both positions)
- Secondary wiring requirements (number of wires)
Why Choose DLC2 Series?
- Versatile – Multiple heights and currents for various applications
- User-friendly – Hand-pull operation reduces effort
- Safe – Clear position indication and mechanical interlock
- Flexible – Optional auxiliary switch at both positions
- Proven Quality – Manufactured under strict quality control
| Feature | Description |
| Operation Mode | Hand-pull – simple, smooth, and reliable locking |
| Drawer Heights | 150mm, 200mm, 300mm, 400mm, 600mm (covers 8E/4 to 16E modules) |
| Handle Heights | 67mm, 82mm, 119mm – three options for panel design flexibility |
| Three-Position Mechanism | Display, locking, and interlocking functions |
| Wiring Type | Rear wiring structure – easy installation and maintenance |
| Rated Currents | 125A, 250A, 400A, 630A |
| Travel Distance | 24mm from TEST to CONNECTION position |
| TEST Position | Primary disconnected, secondary connected |
| CONNECTION Position | Both primary and secondary connected |
| Auxiliary Switch (Optional) | Can provide 1 set 1NO+1NC at both TEST and CONNECTION positions (standard: only at TEST) |
| Position Indication | Rotating arrow clearly indicates the corresponding position area |
| Mechanical Interlock | When main switch is closed, the lock lever engages and drawer cannot be withdrawn; unlocked when switch is opened |
Ideal for MNS and other withdrawable switchgear systems, the DLC2 Series 8E Drawer Unit is suitable for feeder circuits, motor control centers (MCC), and main distribution applications where compact design and operational reliability are essential.
For detailed specifications or customization inquiries, please contact us.
- Low voltage withdrawable switchgear (MNS, GCS, GCK, etc.)
- Feeder circuits for industrial and commercial power distribution
- Motor control centers (MCC)
- Main distribution panels (incomer applications up to 630A)
- Infrastructure and data center projects
| Parameter | Specification |
| Product Series | DLC2 |
| Module | 8E (other heights available) |
| Operation | Hand-pull |
| Drawer Height | 150 / 200 / 300 / 400 / 600 mm |
| Handle Height | 67 / 82 / 119 mm |
| Rated Current | 125 / 250 / 400 / 630 A |
| Wiring | Rear wiring (primary & secondary) |
| Travel (TEST → CONNECTION) | 24 mm |
| Auxiliary Switch (Standard) | 1 set 1NO+1NC at TEST position |
| Auxiliary Switch (Optional) | Additional set at CONNECTION position |
