GLBS Series Busbar Support Frame
For low voltage switchgear busbar mounting

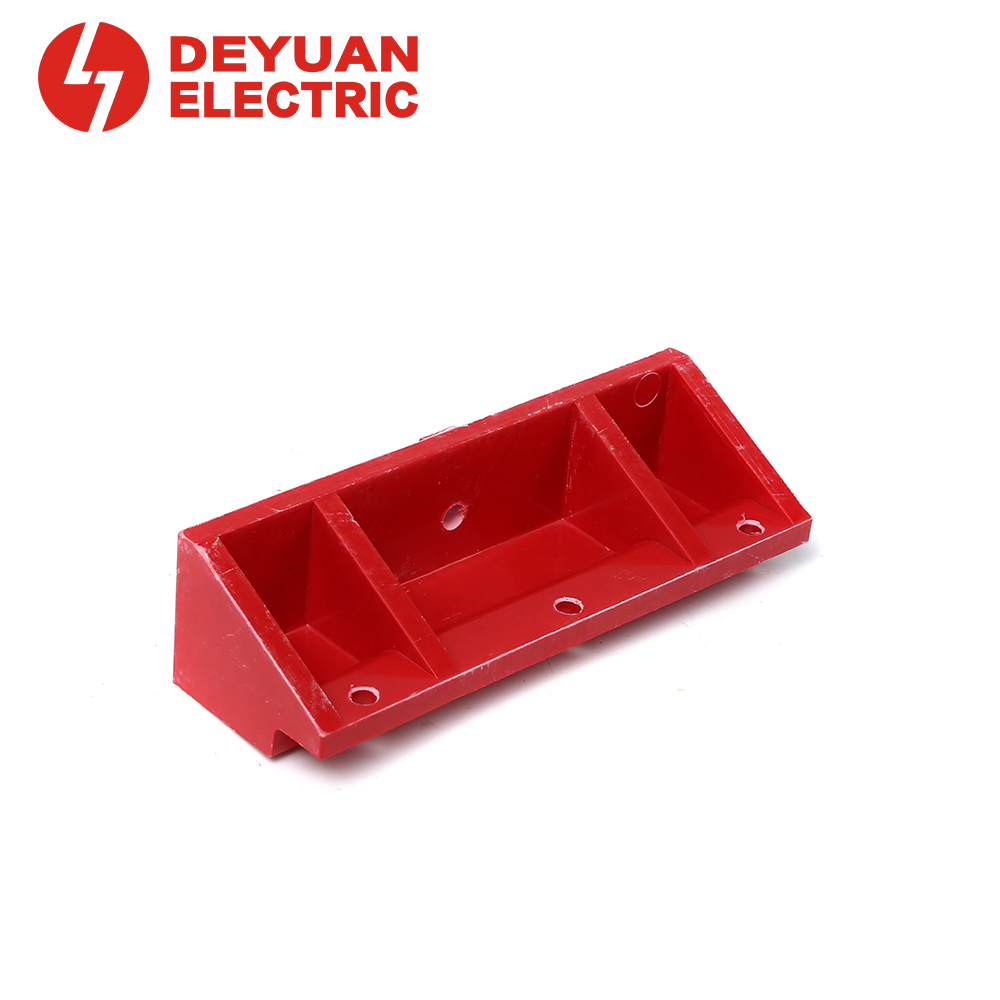

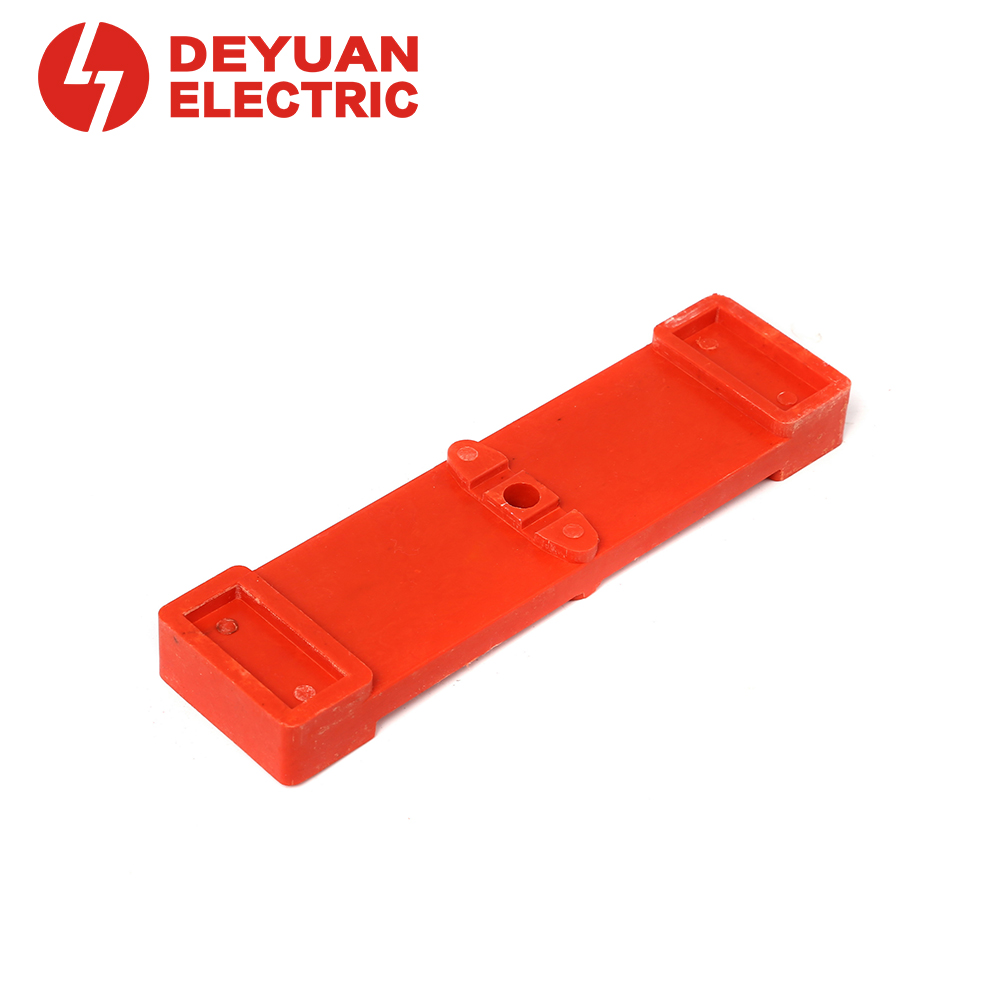

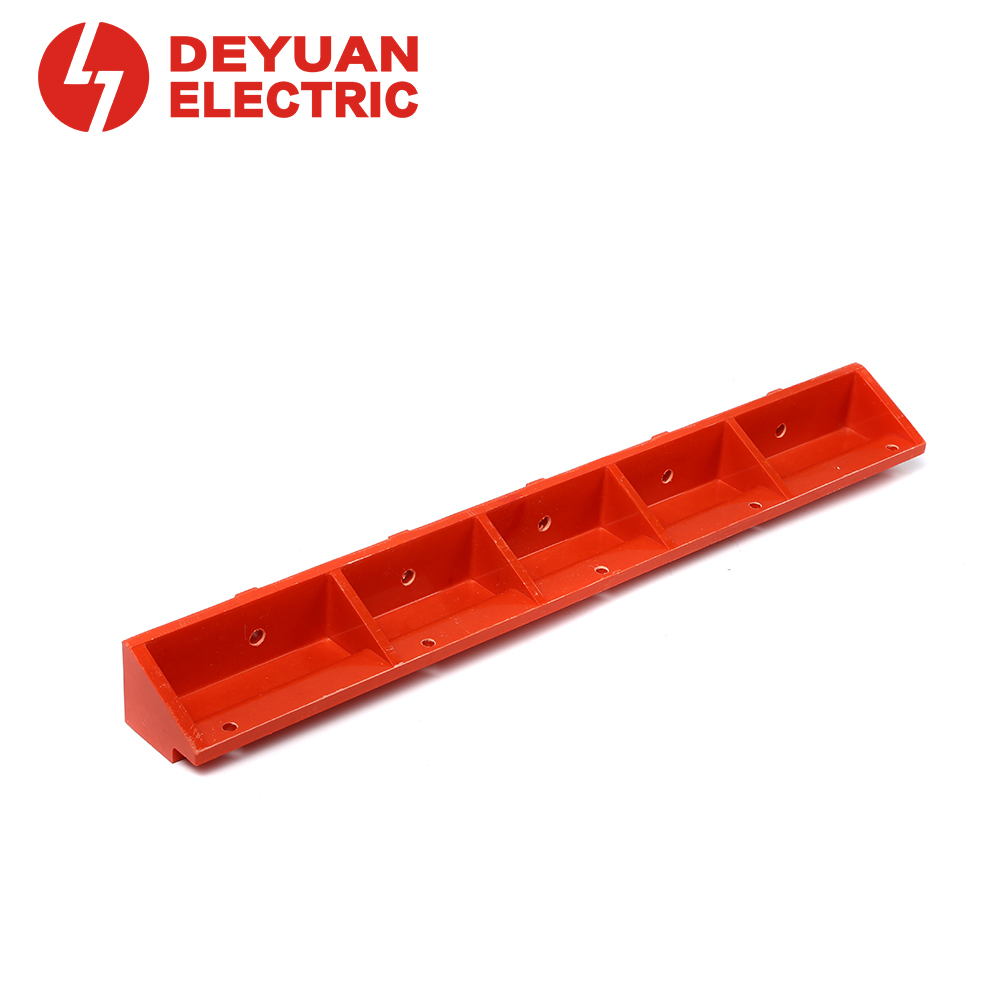

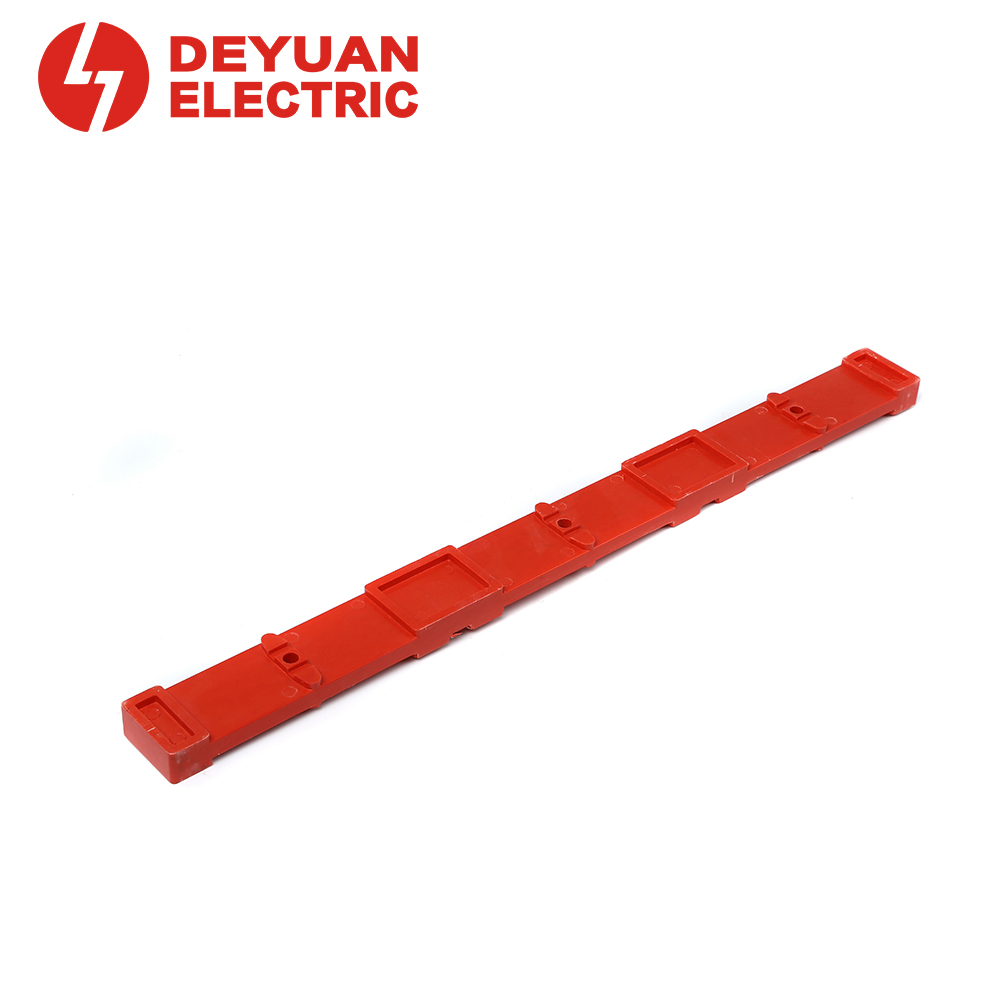

These busbar frames (busbar supports) are designed for fixing and insulating copper inside low voltage switchgear enclosures. They provide reliable mechanical support and electrical insulation for main and neutral (N) busbars. Available in multiple sizes to accommodate different busbar cross-sections.
Contact Us
Product Details
- High mechanical strength – Reliable support for copper/aluminum busbars
- Excellent insulation properties – Suitable for LV switchgear up to 690V / 1000V
- Multiple busbar sizes – Accommodates 10mm thickness with widths from 30mm to 100mm
- Main and neutral busbar options – Dedicated frames for N line busbars
- Middle supports available – For additional support on long busbar runs
| Model No. | Description | Unit | Remark (Busbar Size) |
| GLBS 300 003P2 | Busbar frame | (Pcs) | 10 × 30 mm, 10 × 60 mm, 10 × 80 mm |
| 8LS 110 001 | N line (neutral) busbar frame | (Pcs) | 10 × 30 mm, 10 × 60 mm, 10 × 80 mm, 10 × 100 mm |
| GLBS300 180P1 | Middle busbar support | (Pcs) | – |
| GLBS 300 180P2 | N line middle busbar support | (Pcs) | 10 × 80 mm, 10 × 60 mm |
| Parameter | Value |
| Material | High-strength insulating material SMC |
| Busbar thickness | 10 mm (standard) |
| Busbar width options | 30, 60, 80, 100 mm |
| Flammability rating | UL 94 V‑0 |
| Operating temperature | -25°C to +120°C |
