DLC1 Series 8E/2 Drawer Unit

Compact, Reliable, and Easy to Operate.

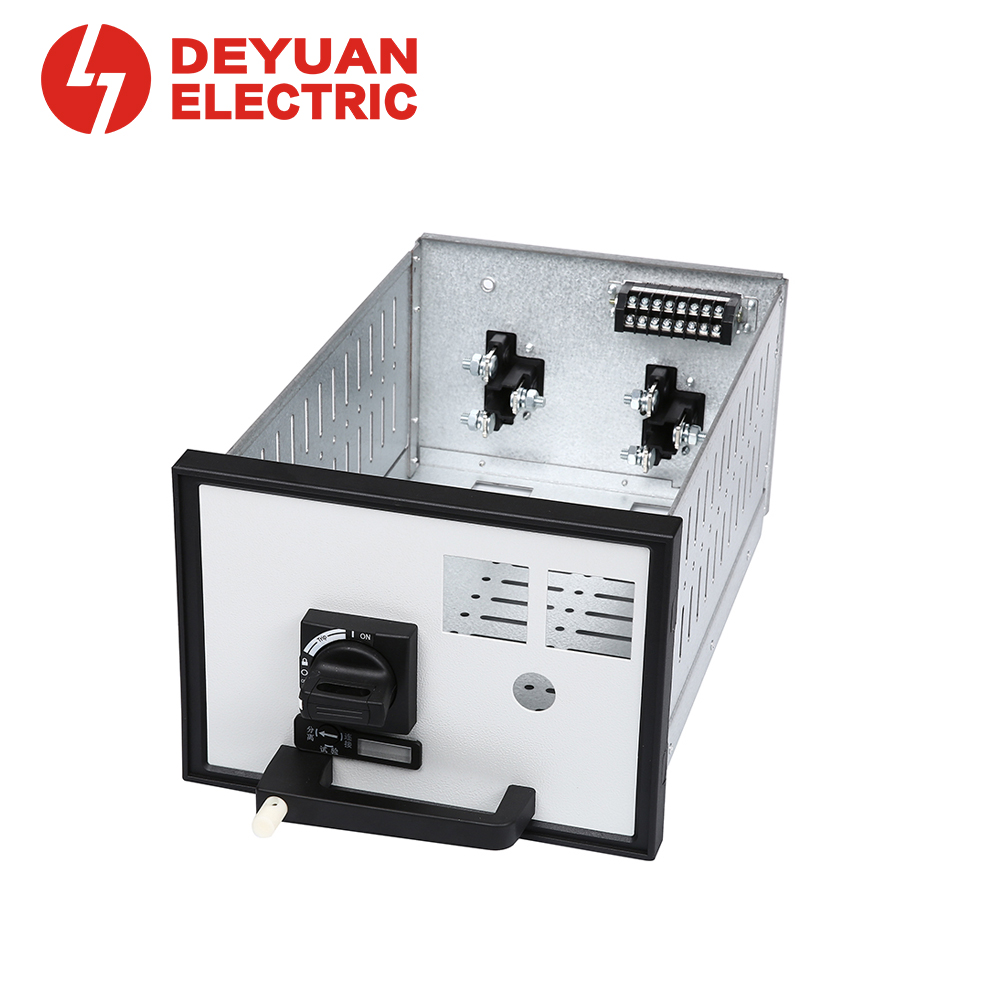

The DLC1 Series 8E/2 Drawer Unit is a hand-pull type drawer unit designed specifically for 8E/2 module sizes in low voltage withdrawable switchgear.With a drawer height of 200mm, rated current of 125A, and flexible secondary wiring options (16, 24, or 32 wires), this drawer unit is ideal for feeder and motor control applications in MNS and similar switchgear systems.

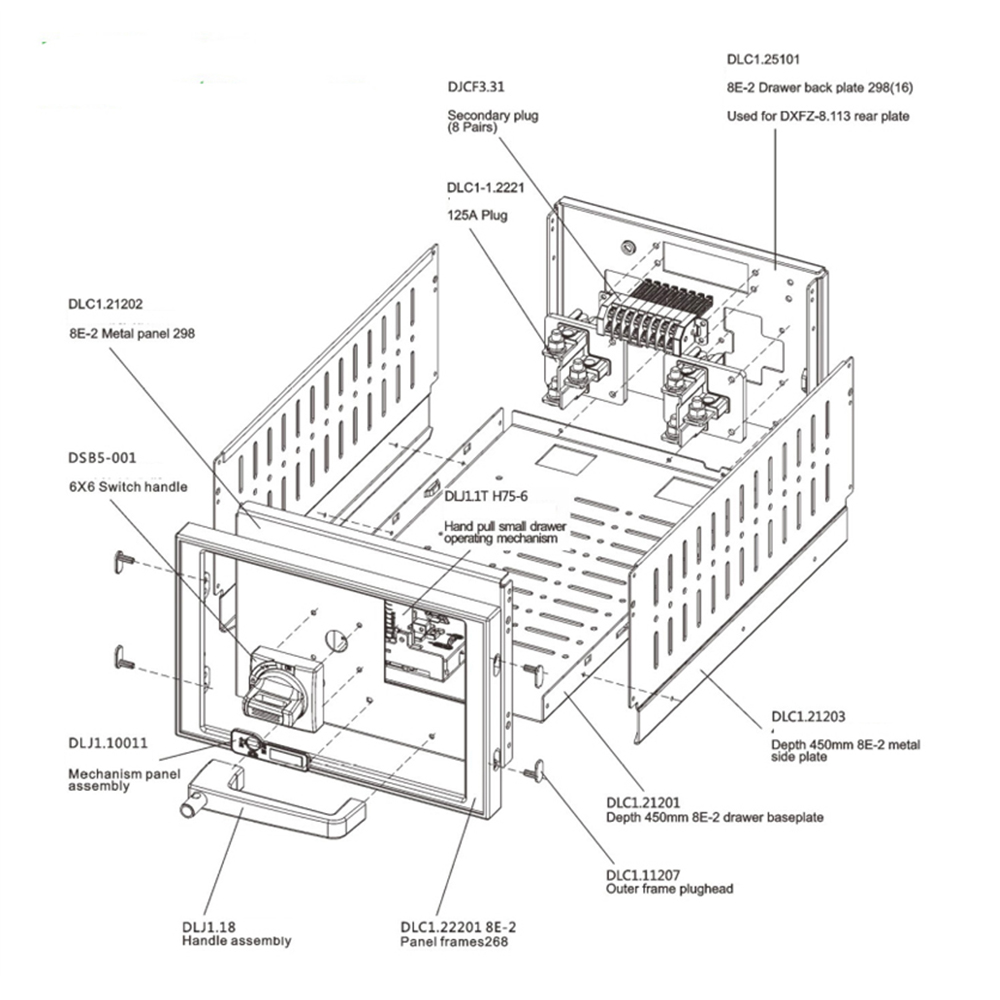

Product Details

1.8E/2 Drawer height H=200mm.

2.Primary/Secondary connector with rear wiring

3.8E/2 Drawer Rated current 125A,16-poles,24-poles,32 poles secondary connectors

4.The operating mechanism of the 8E/4 Drawer has three position : display, locking, interlocking Handle height H=75.

5.The 8E/2 drawer can be pushed into the connecting position by pressing and holding the unlock button on the leftpull hand.

6.Travel distance from test toconnection position is 24mm. Test position: primary disconnection,secondary in connections;Connection position: primary and secondary all in connections

7.8E/2drawer side plate will be metal plate generally, please specify if metal needed.

Why Choose Deyuan Electric DLC1 8E/2 Drawer Unit?

Advantage	Description
Simple Operation	Hand-pull design
Reliable Locking	Positive locking mechanism
Clear Position Indication	Visual arrow indicator with three distinct positions
Complete Interlock Protection	Mechanical interlock ensures safe operation – cannot withdraw drawer when handle is closed
Flexible Secondary Wiring	16, 24, or 32 wire options to match your control requirements
Optional Auxiliary Switch	Additional switch at CONNECTION position available for enhanced monitoring
Quality Construction	Metal side plate standard for durability; plastic option available

Feature	Description
Hand-Pull Operation	Simple and easy to operate with reliable mechanical locking
8E/2 Module Size	Drawer height = 200mm – compact and space-saving
Three-Position Mechanism	Display, Locking, and Interlocking functions
75mm Handle Height	Comfortable Operation
Rear Wiring Structure	Both primary and secondary wiring at the rear – easy installation and maintenance
Rated Current	125A – suitable for standard feeder and MCC circuits
Secondary Wiring Options	Available with 16, 24, or 32 wires to meet various control requirements
Precise Travel Distance	24mm travel from TEST position to CONNECTION position
TEST Position	Primary disconnected, secondary connected
CONNECTION Position	Both primary and secondary connected
Auxiliary Switch (Optional)	Can provide 1 set of 1NO+1NC auxiliary switch at both TEST and CONNECTION positions (standard only at TEST position)
Position Indication	Rotating arrow clearly indicates the corresponding position area
Mechanical Interlock	When handle is closed, lock lever engages and drawer cannot be withdrawn; unlocked when handle is opened
Side Plate Material	Metal side plate as standard (please specify if plastic side plate is required)

Parameter	Specification
Product Series	DLC1 Series
Module Size	8E/2
Drawer Height	200mm
Operation Mode	Hand-pull
Handle Height	75mm
Rated Current	125A
Secondary Wire Options	16, 24, or 32 wires
Wiring Type	Rear wiring (primary & secondary)
TEST → CONNECTION Travel	24mm
TEST Position Status	Primary disconnected, secondary connected
CONNECTION Position Status	Primary and secondary both connected
Auxiliary Switch	1 set 1NO+1NC at TEST position (standard); optional additional set at CONNECTION position
Position Indication	Rotating arrow indicator
Mechanical Interlock	Yes – drawer locked when handle closed
Side Plate Material	Metal (standard); plastic available upon request
