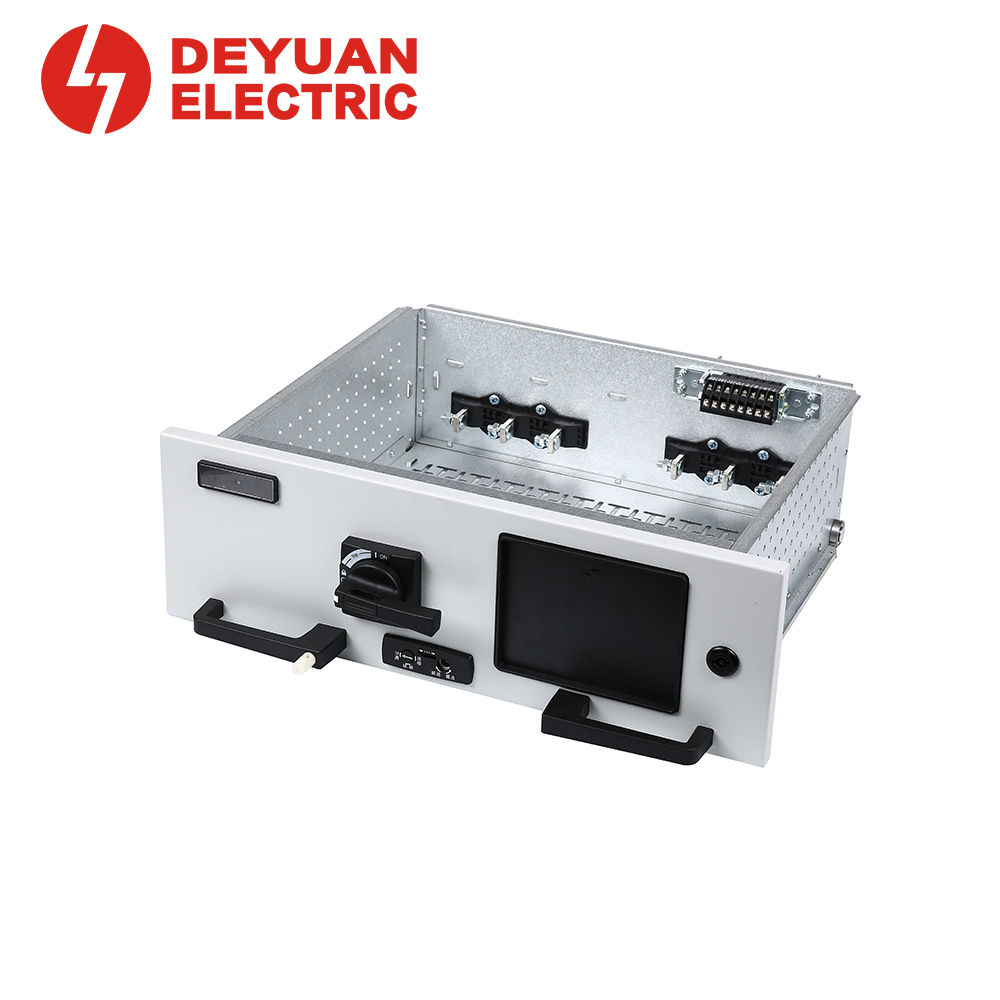

DLC3 Series 16E Drawer Unit
DLC3 Series 16E Drawer Unit
DLC3 Series 16E Drawer Unit
Hand‑rotary mechanism with three positions (test/connection/disconnect). 24mm travel, back‑wiring up to 630A. Clear position indication and mechanical interlock for safe operation. Available in multiple drawer heights.
Contact Us

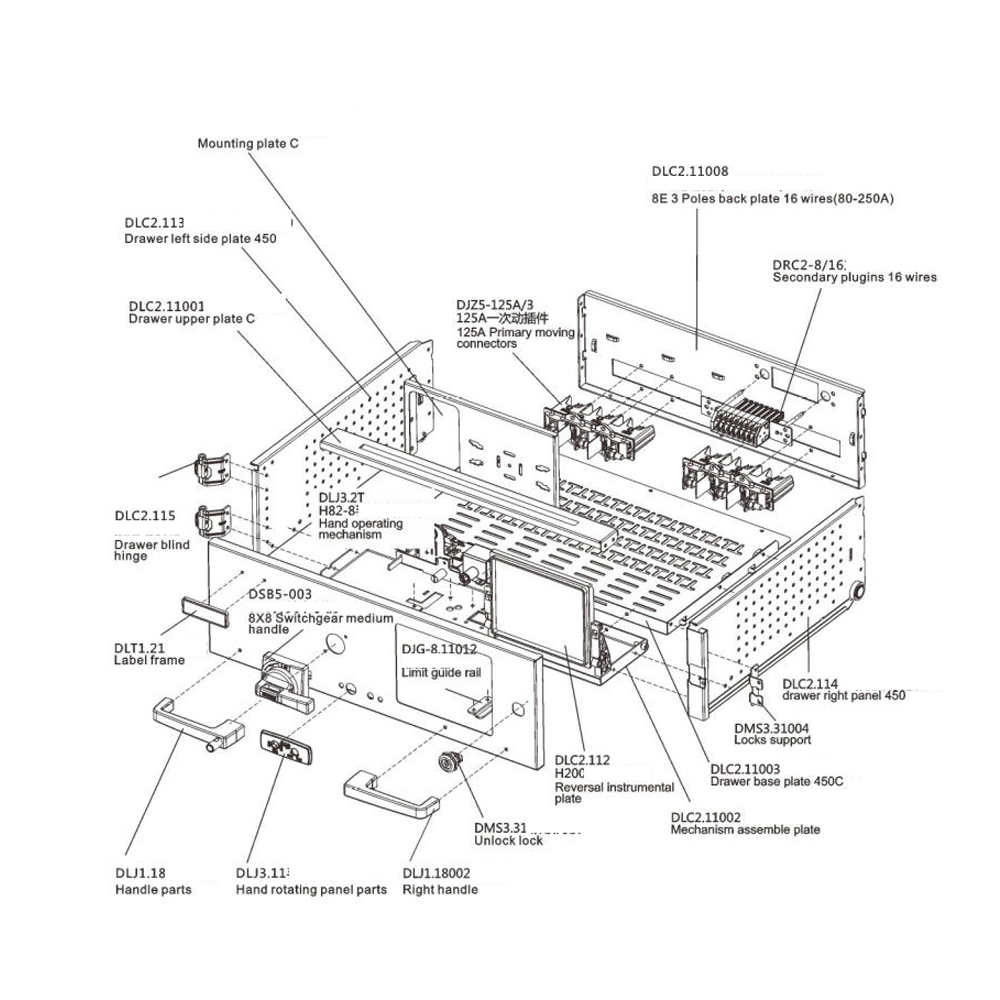

Product Details
1.Mechanism is operated by hand rotating, which is easy to operate and reliable to lock.Drawer height H=150,200,300,400,600mm.
2.The mechanism has three position : display, locking, interlocking.Handle height H=67, 82,119 for choice.
3.Back wiring structure drawer, current: 125A, 250A, 400A, 630A
4.Travel distance from test to connection position is 24mm. Test position: primary disconnection, secondary in connections;Connection position: primary andsecondary all in connections
5.The mechanism can provide 1 set of 1ON 1 OFF conversion switches at bothtest position and connectionposition.Regular can onlyprovide 1 set of1 ON 1 OFF at the test position.
6.Drawer position indicator is indicatedby rotating the arrow to indicate thecorresponding position area.
7.The drawer can be pushed into theconnecting position by pressing andholding the unlock button on the left pullhand. After closinghandle is closed, themechanism lock lever will pass throughthe bottom board of the drawer and lockthe positioning block on thelayerpartition. Meanwhile, the unlockbutton is locked, and the drawer can beunlocked after the handle is locked, andthe drawer can be pulledout by pressingthe unlock button.
| Feature | Description |
| Operation Mode | Hand-pull – simple, smooth, and reliable locking |
| Drawer Heights | 150mm, 200mm, 300mm, 400mm, 600mm (covers 8E/4 to 16E modules) |
| Handle Heights | 67mm, 82mm, 119mm – three options for panel design flexibility |
| Three-Position Mechanism | Display, locking, and interlocking functions |
| Wiring Type | Rear wiring structure – easy installation and maintenance |
| Rated Currents | 125A, 250A, 400A, 630A |
| Travel Distance | 24mm from TEST to CONNECTION position |
| TEST Position | Primary disconnected, secondary connected |
| CONNECTION Position | Both primary and secondary connected |
| Auxiliary Switch (Optional) | Can provide 1 set 1NO+1NC at both TEST and CONNECTION positions (standard: only at TEST) |
| Position Indication | Rotating arrow clearly indicates the corresponding position area |
| Mechanical Interlock | When main switch is closed, the lock lever engages and drawer cannot be withdrawn; unlocked when switch is opened |
Ideal for MNS and other withdrawable switchgear systems, the DLC2 Series 8E Drawer Unit is suitable for feeder circuits, motor control centers (MCC), and main distribution applications where compact design and operational reliability are essential.
For detailed specifications or customization inquiries, please contact us.
- Low voltage withdrawable switchgear (MNS, GCS, GCK, etc.)
- Feeder circuits for industrial and commercial power distribution
- Motor control centers (MCC)
- Main distribution panels (incomer applications up to 630A)
- Infrastructure and data center projects
| Parameter | Specification |
| Product Series | DLC2 |
| Module | 8E (other heights available) |
| Operation | Hand-pull |
| Drawer Height | 150 / 200 / 300 / 400 / 600 mm |
| Handle Height | 67 / 82 / 119 mm |
| Rated Current | 125 / 250 / 400 / 630 A |
| Wiring | Rear wiring (primary & secondary) |
| Travel (TEST → CONNECTION) | 24 mm |
| Auxiliary Switch (Standard) | 1 set 1NO+1NC at TEST position |
| Auxiliary Switch (Optional) | Additional set at CONNECTION position |
