DLC2 Series Withdrawable Unit in Side Wiring
DLC2 Series withdrawable unit in Side Wiring.
Modular Drawer Unit for Low Voltage Withdrawable Switchgear.

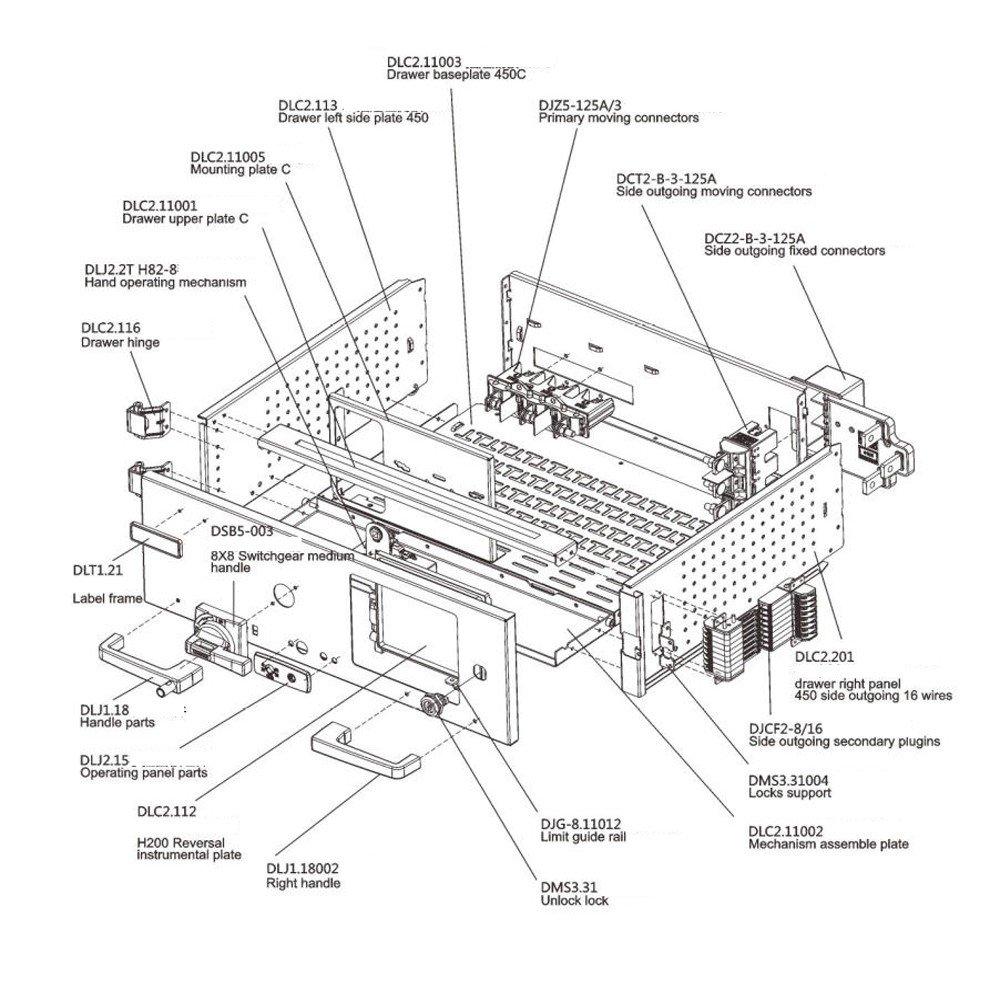

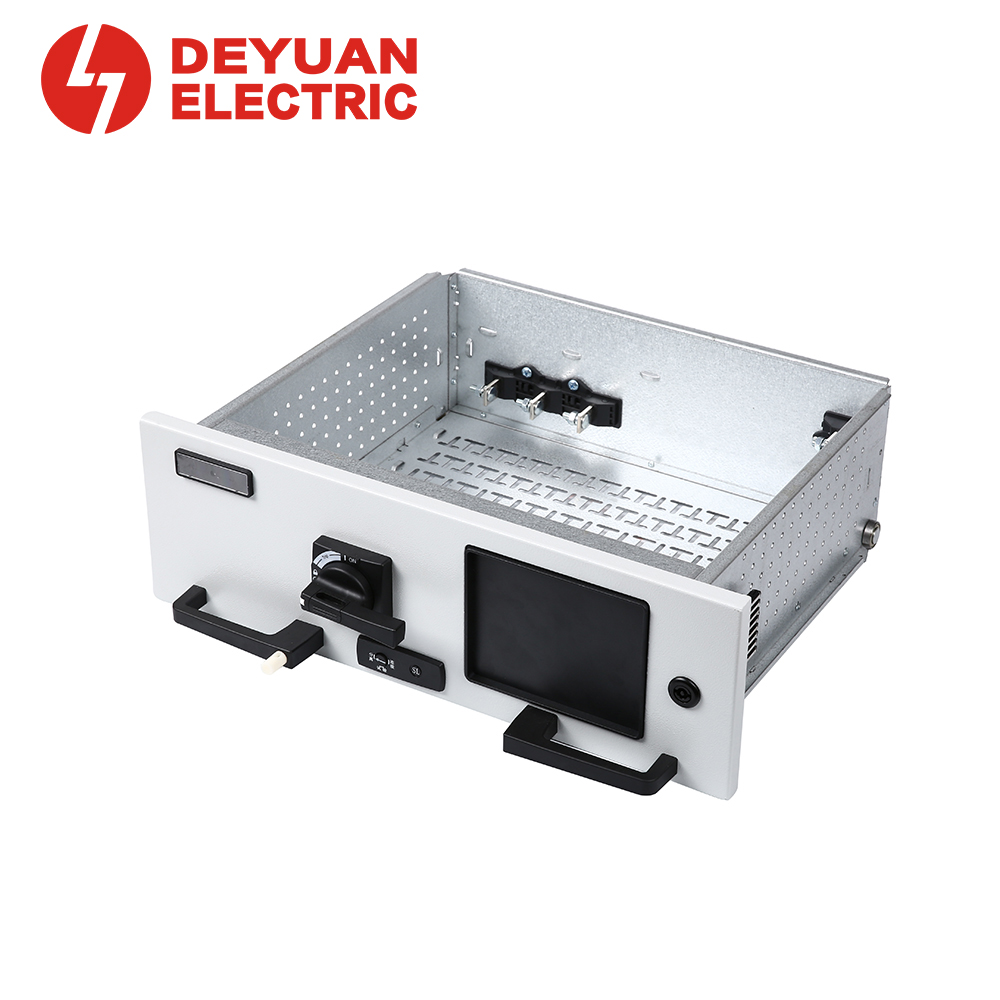

The DLC2 Series Hand-Pull Side Wiring Drawer Unit is a modular drawer unit developed by Deyuan Electric specifically for low voltage withdrawable switchgear. Featuring a hand-pull operating mechanism, it supports both primary and secondary side wiring solutions.
Available in multiple height options from 150mm to 600mm, with rated currents from 125A to 630A, it is widely used in feeder circuits and motor control centers for MNS and other low voltage drawer-type switchgear.
Contact Us
Product Details
Applications
- Low voltage withdrawable switchgear (MNS, GCS, GCK, etc.)
- Industrial power distribution feeder circuits
- Motor control centers (MCC)
- Data center distribution cabinets
- Commercial building power distribution systems
- Infrastructure project power distribution
Why Choose Deyuan Electric DLC2 Drawer Unit?
| Advantage | Description |
| Integrated Design | Enclosure, operating mechanism, connectors, hardware – one-stop supply |
| Precision Manufacturing | In-house mold development ensures precise dimensional control |
| Flexible Configuration | Multiple height, current, and handle height options to meet diverse requirements |
| Safe & Reliable | Comprehensive mechanical interlock design ensures operational safety |
| Quality Assurance | ISO 9001 certified with end-to-end quality control |
| Feature | Description |
| Dual Operation Modes | Supports both hand-pull and hand-cranked operation to suit different user preferences |
| Side Wiring Solution | Primary and secondary side wiring available, adaptable to compact cabinet layouts |
| Three-Position Mechanism | Provides display, locking, and interlocking functions for safe and reliable operation |
| Multiple Height Options | Available in 150mm, 200mm, 300mm, 400mm, and 600mm – covering 8E/4 to 24E modules |
| Multiple Handle Heights | Three handle height options: 67mm, 82mm, and 119mm to suit different panel designs |
| Rear Wiring Structure | Both primary and secondary use rear wiring for easy installation and maintenance |
| Wide Current Range | Rated currents: 125A, 250A, 400A, 630A to meet various distribution requirements |
| Precise Travel Distance | 24mm travel from TEST position to CONNECTION position ensures accurate engagement |
| Auxiliary Switch Configuration | Can provide 1 set of 1 NO + 1 NC auxiliary switch at both TEST and CONNECTION positions |
| Mechanical Interlock Protection | Drawer locked when circuit breaker is closed; can only be withdrawn when opened – ensures safe operation |
| Parameter | Specification |
| Product Series | DLC2 Series |
| Operation Mode | Hand-pull / Hand-cranked |
| Drawer Height | 150mm / 200mm / 300mm / 400mm / 600mm |
| Handle Height | 67mm / 82mm / 119mm |
| Rated Current | 125A / 250A / 400A / 630A |
| Wiring Type | Rear wiring (primary & secondary) |
| TEST → CONNECTION Travel | 24mm |
| TEST Position Status | Primary disconnected, secondary connected |
| CONNECTION Position Status | Primary and secondary both connected |
| Auxiliary Switch | 1 set 1NO+1NC at TEST position + 1 set at CONNECTION position (optional) |
| Position Indication | Rotating arrow indicates corresponding position area |
| Mechanical Interlock | Drawer locked when handle closed; can be withdrawn only when handle opened |
- Side Wiring Solution: Both hand-pull and hand-cranked operation modes support primary and secondary side wiring
- Side Wiring Solution: Both hand-pull and hand-cranked operation modes support primary and secondary side wiring
- Side Wiring Solution: Both hand-pull and hand-cranked operation modes support primary and secondary side wiring
- Precise Travel Distance: 24mm travel from TEST position to CONNECTION position
- TEST position: Primary disconnected, secondary connected
- CONNECTION position: Both primary and secondary connected
- Auxiliary Switch Configuration: The mechanism can provide 1 set of 1 NO + 1 NC auxiliary switch at both TEST and CONNECTION positions
- Position Indication: Rotating arrow clearly indicates the corresponding position area
- Safety Interlock: Press and hold the unlock button on the left pull-hand to push the drawer to CONNECTION position.
Handle Height Options
| Handle Height | Application |
| 67mm | Compact panels |
| 82mm | Standard panels |
| 119mm | High operating force requirements |
