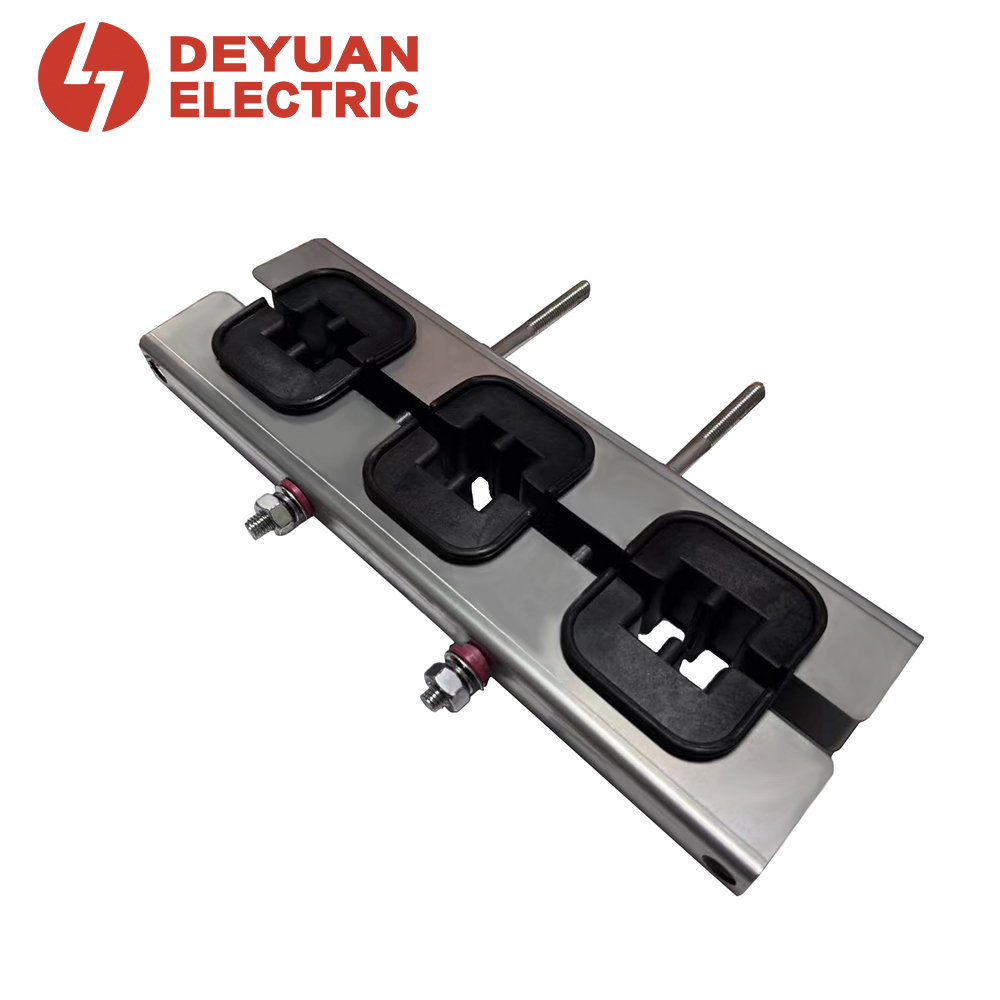

Combined Busbar Clamp with Shroud
Special for State Grid – modular design for standardized production
The combined busbar clamp with sheath is specifically designed for low voltage switchgear used in State Grid applications. It features a modular assembled structure that can be configured into multiple specifications to suit different busbar arrangements (single row, double row, or triple row). The high‑performance insulating sheath provides excellent mechanical strength and flame retardancy.
Contact Us
Product Details
- Universal support design – Standardized for efficient sheet metal production
- 1×8, 1×10, 1×12 single‑row sheath supports (universal)
- 2×10, 2×12 double‑row sheath supports (universal)
- 3×10, 3×12 triple‑row sheath supports (universal)
- High‑performance insulating material – High mechanical strength, maximum flame retardancy rating (UL 94 V‑0)
- Modular assembled structure – Can be combined into various specifications as required
- High short‑time withstand current ratings
| Parameter | Value |
| Product name | Combined busbar clamp with sheath |
| Application | State Grid LV switchgear |
| Configuration options | Single row / Double row / Triple row |
| Busbar sizes supported | 8, 10, 12 mm width |
| Material | High‑performance insulating material (flame retardant) |
| Flame rating | Highest grade (UL 94 V‑0) |
| Rated short‑time withstand current (single row) | 50 kA |
| Rated short‑time withstand current (double row) | 65 kA |
| Rated short‑time withstand current (triple row) | 100 kA |
| Structure | Modular, assembled |
 |  |
