3rd Superset 1/4 Module Drawer
We can support your OEM/ODM needs and provide one-stop customized solutions.
3rd Superset 1/4 Module Drawer

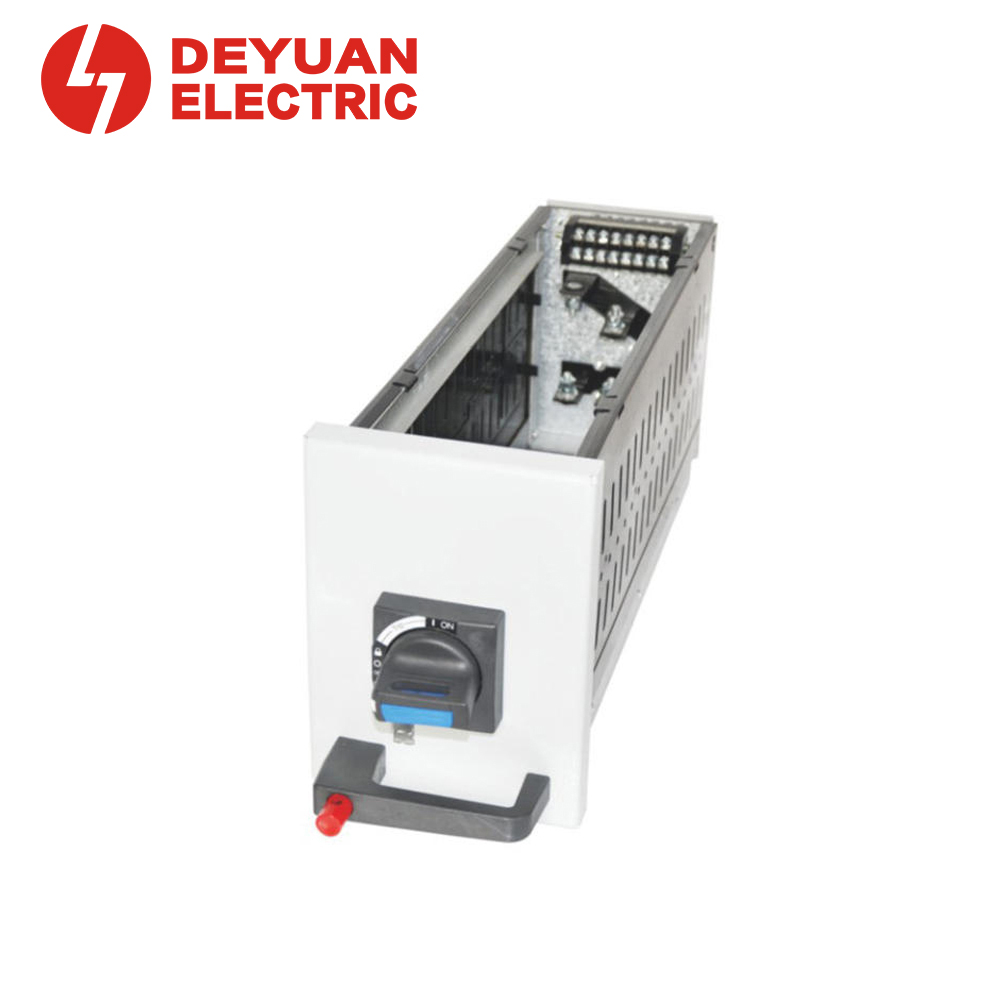

1/4 module Drawer is a compact, hand-pulled operating mechanism drawer designed for low voltage withdrawable switchgear. With a module size of 1/4(200mm height), it is ideal for small current feeder circuits and motor control applications up to 63A.
The drawer features a space-saving design, detachable side panels, and clear three-position indication, making it a reliable and user-friendly choice for MNS and similar switchgear systems.
Contact Us
Product Details
Design Advantages
- Compact size –1/4 module Drawer saves valuable panel space, allowing more circuits per cabinet.
- Easy component access – Detachable side panels simplify installation of breakers, contactors, and other devices.
- Clear position indication – Visual indication helps operators quickly identify drawer status.
- Reliable locking – Positive locking at TEST and CONNECTION positions prevents accidental movement.
Applications
- Low voltage withdrawable switchgear (MNS, GCS, GCK, etc.)
- Feeder circuits up to 63A
- Lighting distribution panels
- Small motor control centers (MCC)
- Commercial and industrial power distribution
| Feature | Description |
| Hand-Pulled Operation | Simple and easy to operate – no special tools required |
| Three-Position Indication | Provides DISCONNECT, TEST, and CONNECTION positions; drawer can be locked at both TEST and CONNECTION positions |
| Precise Travel Distance | 24mm travel from TEST to CONNECTION position ensures smooth engagement |
| Detachable Side Panels | Removable side panels allow easy installation of electrical components and cable connections inside the drawer |
| Secondary Wiring | 16 wires for control and signal circuits |
| Drawer Depth | 450mm – fits standard switchgear compartments |
| Parameter | Value |
| Product Name | 1/4 module Drawer |
| Operation Mode | Hand-pulled |
| Rated Current | 63A |
| Number of Secondary Wires | 16 wires |
| Drawer Depth | 450mm |
| Travel (TEST → CONNECTION) | 24mm |
| Locking Positions | TEST and CONNECTION |
Get In Touch
Tell us about your LV switchgear project – we’ll get back to you within 24 hours with a tailored solution.
