8LS.750 Distribution Busbar Clamp
8LS.750 Distribution Busbar Clamp
For vertical busbar fixing in drawout switchgear drawers

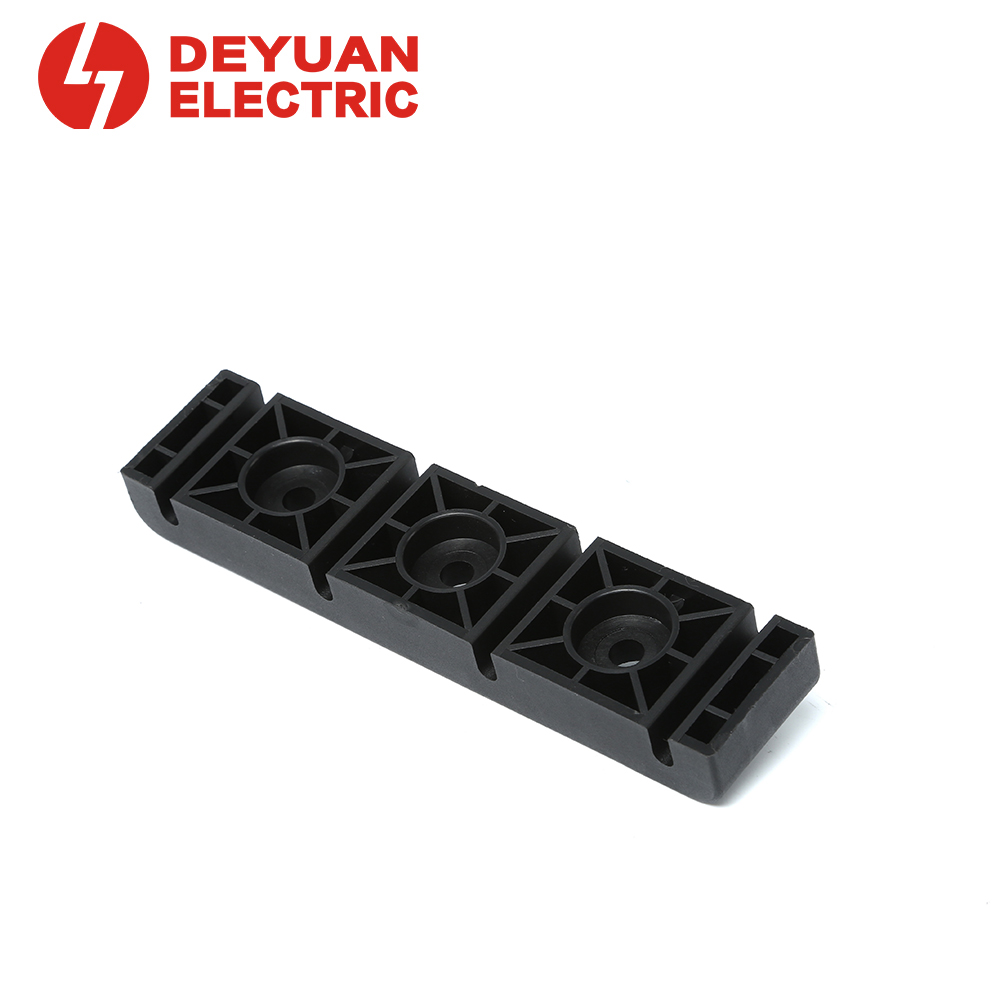

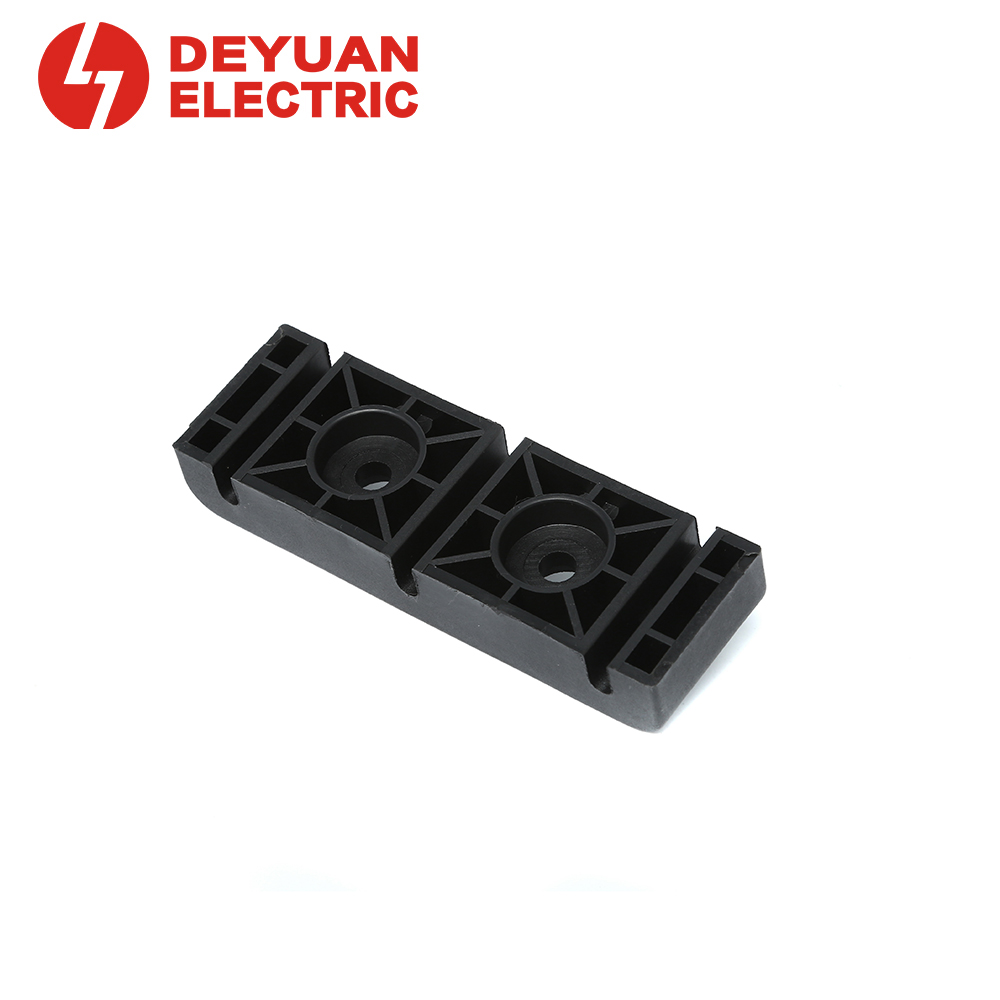

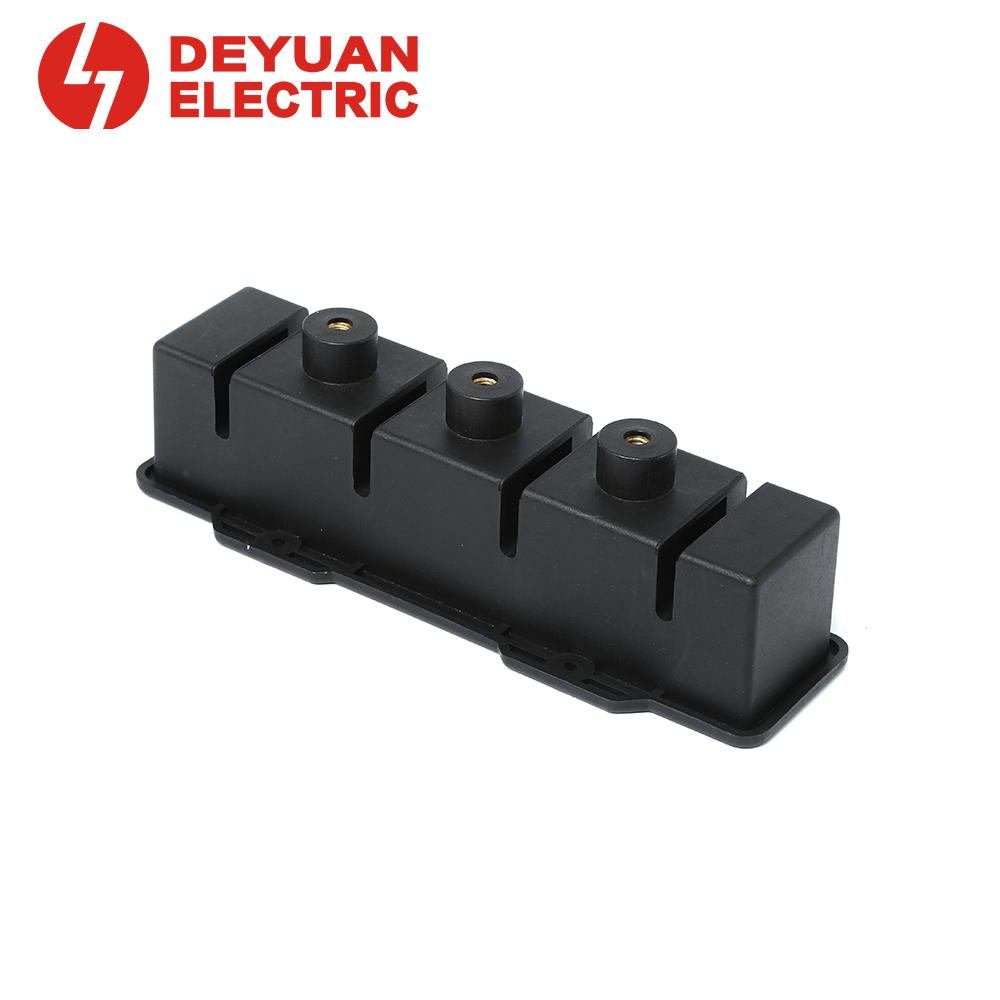

The distribution bar clamp (busbar clamp) is used together with the distribution bar clamp cover and support posts to securely fix vertical busbars inside drawout switchgear drawers. Manufactured from flame‑retardant nylon PA66, it offers excellent mechanical strength, heat resistance, and self‑extinguishing properties, ensuring safe operation and preventing fire propagation in the event of an electrical fault.
Available in two phase spacing options – 55 mm and 50 mm – to accommodate different busbar configurations.
Contact Us
Product Details
- Flame‑retardant PA66 material – UL 94 V‑0 rated, self‑extinguishing, enhances fire safety
- High mechanical strength – resists deformation under short‑circuit forces
- Excellent heat resistance – suitable for continuous operation up to 120°C
- Two phase spacing options – 55 mm and 50 mm for flexible design
- Compatible with multiple busbar sizes – supports various widths and thicknesses
- Complete assembly – used with clamp cover and support posts
- Reliable fixing – ensures stable vertical busbar positioning in drawer units
- Special provision – 10 mm extra length for 50 mm phase spacing with primary contacts
| Phase Spacing | Busbar Size (Thickness × Width) |
| 55 mm | 6 × 40 mm, 6 × 50 mm, 6 × 60 mm, 6 × 80 mm |
| 50 mm | 5 × 50 mm, 5 × 60 mm, 5 × 80 mm |
| Property | Value |
| Material | Flame‑retardant nylon PA66 |
| Flame rating | UL 94 V‑0 (self‑extinguishing) |
| Operating temperature | -40°C to +120°C |
| Insulation resistance | High |
Important Note
When using 50 mm phase spacing distribution bars with primary contacts (including the 1/2 unit condapter), the busbar length must be extended by 10 mm to ensure proper connection.
