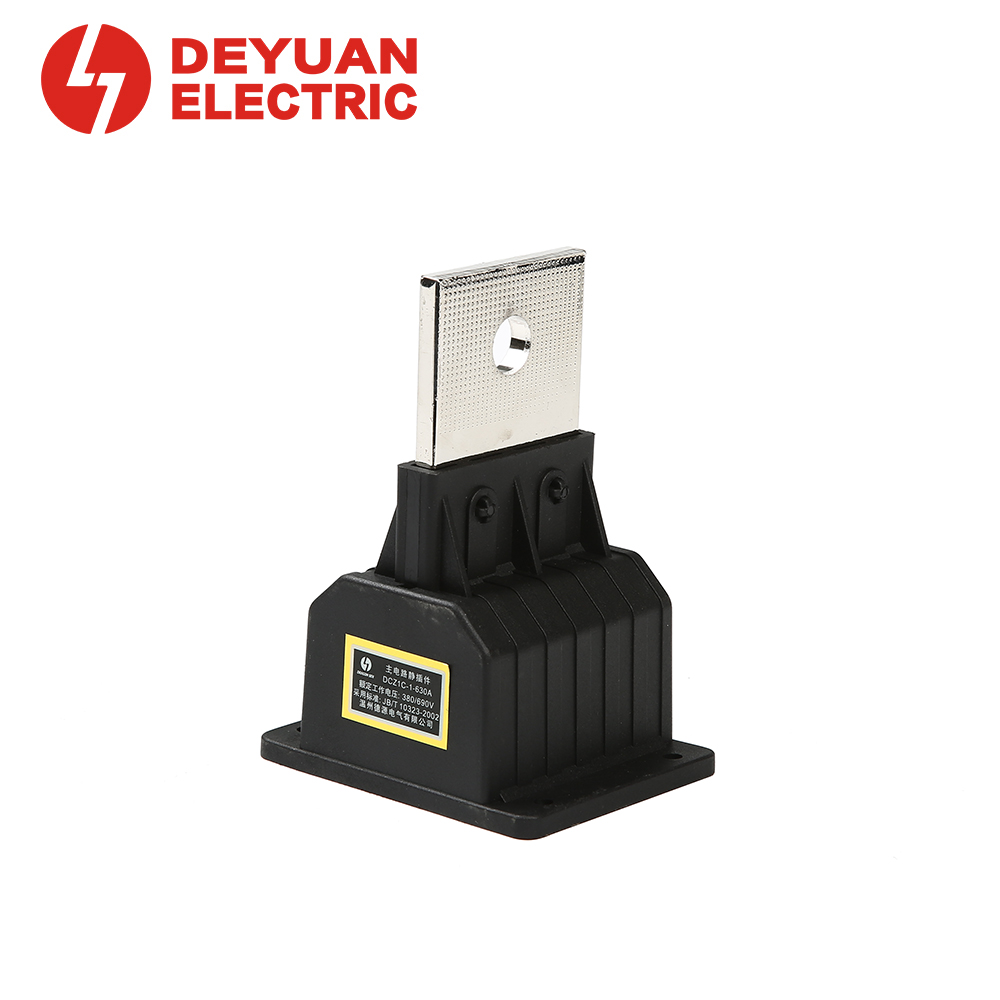

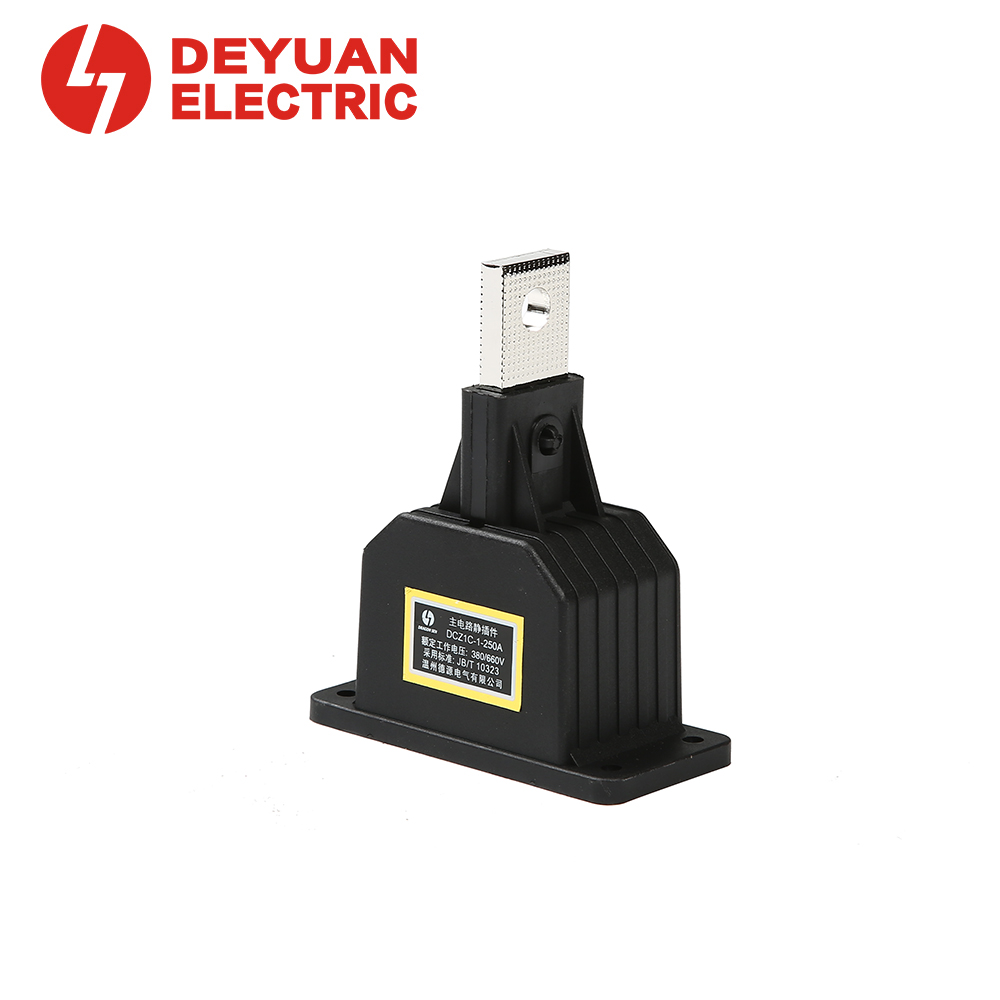

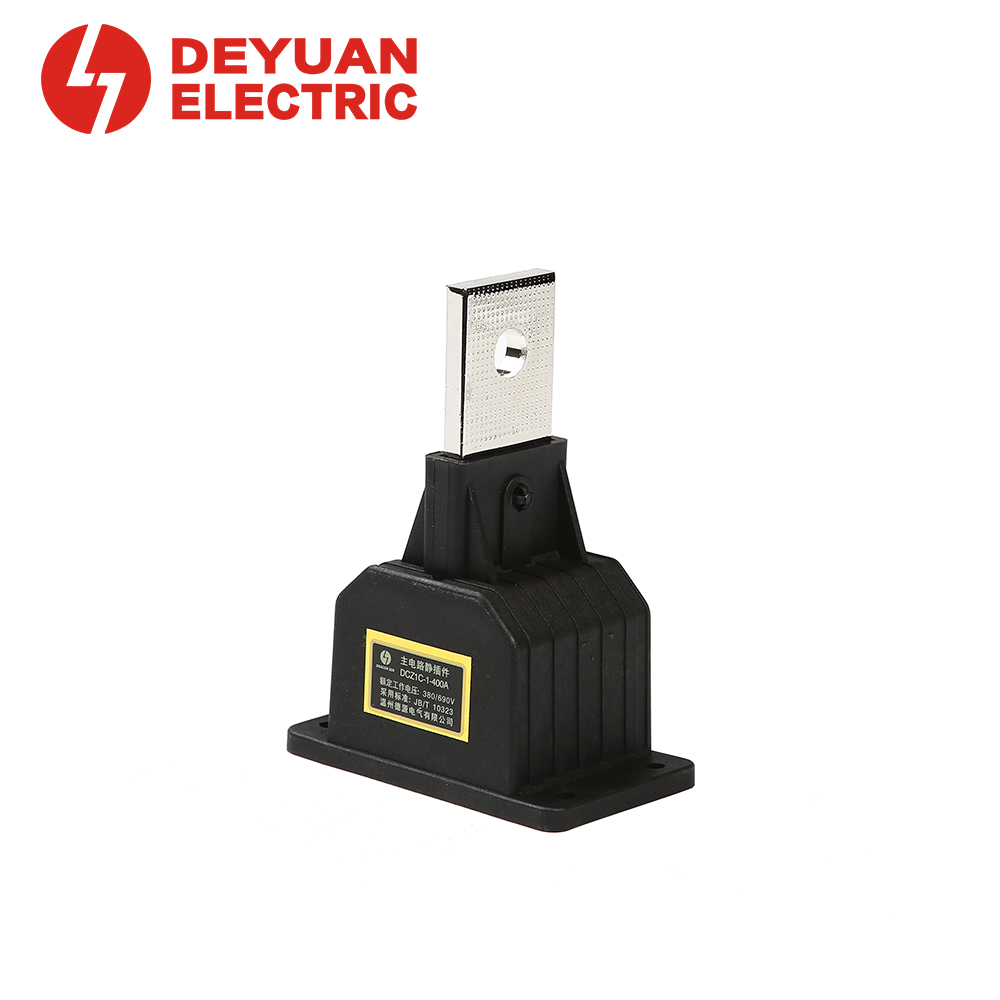

DCZ1C Fixed Circuit Connector
DCZ1C Fixed Circuit Connector
The DCZ1C series single-pole fixed connector is mounted on the vertical busbar inside the low voltage switchgear enclosure.
It mates with the moving connector from the drawer unit to complete the main circuit connection. Designed for reliable long-term performance, it accommodates copper bars of various thicknesses (6mm or 5mm) and is available for 80A to 630A ratings.
Contact Us
Pairing Moving Connector
Product Details
The DCZ1C series single-pole fixed connector is mounted on the vertical busbar inside the low voltage switchgear enclosure. It mates with the moving connector from the drawer unit to complete the main circuit connection. Designed for reliable long-term performance, it accommodates copper bars of various thicknesses (6mm or 5mm) and is available for 80A to 630A ratings.
| Rated voltage | AC690V |
| Rated current | 80A、125A、250A、400A、630A |
| Rated insulation voltage | 1000V |
| Power frequency withstand voltage | 3500V |
| Vertical busbar phase clearance | 55mm |
| Vertical busbar thickness | 6mm |
| Model No. | Rated current | Cooper Bar Size | Hole Size | A | B | W |
| DCZ1C-1-250A | 125A-250A | 6X20 | 58X39 | 70 | 25 | 0 |
 |  |
| Model No. | Rated current | Cooper Bar Size | Hole Size | A | B | W |
| DCZ1C-1-400A | 400A | 6X30 | 58X49 | 70 | 30 | 0 |
 | |
| Model No. | Rated current | Cooper Bar Size | Hole Size | A | B | W |
| DCZ1C-1-630A | 630A | 6X50 | 58X67 | 70 | 45 | 25 |
 | |
This fixed connector is designed to pair with our DCT1C series moving connector.
 |  |  |  |
| DCT1C Series-125A | DCT1C Series-250A | DCT1C Series-400A | DCT1C Series-630A |
