Low Voltage Secondary Connector – S8E / B8E Series
*For MNS2.0 / GCS low voltage drawout switchgear*
The S8E / B8E series secondary connectors are designed for auxiliary circuit connection in low voltage drawout switchgear (MCC), specifically for MNS2.0 and GCS type drawer units. They provide reliable plug‑in/out performance for control, metering, and protection signals.
These connectors are available with pre‑wired cables (1.5mm² or 2.5mm², length 900mm), simplifying field wiring and reducing assembly time.
Contact Us
Product Details
- Pre‑wired option – 1.5mm² or 2.5mm² stranded wire, 900mm length.
- Compatible with moving contact assemblies – B8E, B8E4.4, B8E5.5 series.
- Extended version available – DTC‑1.21 long‑travel secondary connector corrects the standard defect where primary and secondary circuits make/break simultaneously.
- Rated current – 10A
- Rated voltage – AC 220V/380V, DC 110V
- Application – MNS2.0, GCS low voltage drawout switchgear.
| Series | Description | Wire Size | Wire Length | Compatibility |
| B8E | Standard secondary connector | 1.5mm² or 2.5mm² | 900mm | B8E, B8E4.4, B8E5.5 moving assemblies |
| S8E | Standard secondary connector | 1.5mm² or 2.5mm² | 900mm | Same as above |
| DTC‑1.21 | Extended secondary connector | – | – | Corrects simultaneous primary/secondary switching |
| Note: B8E4.4 and B8E5.5 are specific contact configurations (e.g., 4‑pole / 4‑pair variants). Please confirm when ordering. | ||||
Contact Configurations
| Model | Contacts (pairs / poles) |
| B8E / S8E – 8 contacts | 4 pairs / 8 poles |
| B8E / S8E – 16 contacts | 8 pairs / 16 poles |
| Parameter | Value |
| Rated current | 10A |
| Rated voltage | AC 220V/380V, DC 110V |
| Wire size (pre‑wired) | 1.5mm² or 2.5mm² (stranded) |
| Wire length | 900 mm ± 10 mm |
| Insulation resistance | ≥ 100 MΩ |
Secondary Connector
In standard drawer designs, primary and secondary circuits often make/break at the same time, which may not be desirable for some control schemes. The DTC‑1.21 extended secondary connector provides a longer travel, ensuring secondary circuits remain connected while primary is disconnected (or vice versa), allowing safer testing and sequencing.
*DTC‑1.21 corrects the defect of simultaneous primary/secondary circuit switching in standard drawers.*
When ordering, please specify:
- Series (B8E / S8E / DTC‑1.21)
- Number of contacts (e.g., 8, 16)
- Wire size (1.5mm² or 2.5mm²)
- Wire length (standard 900mm or custom)
- Type (moving plug or fixed socket)
- For special requirements, please contact our technical department.

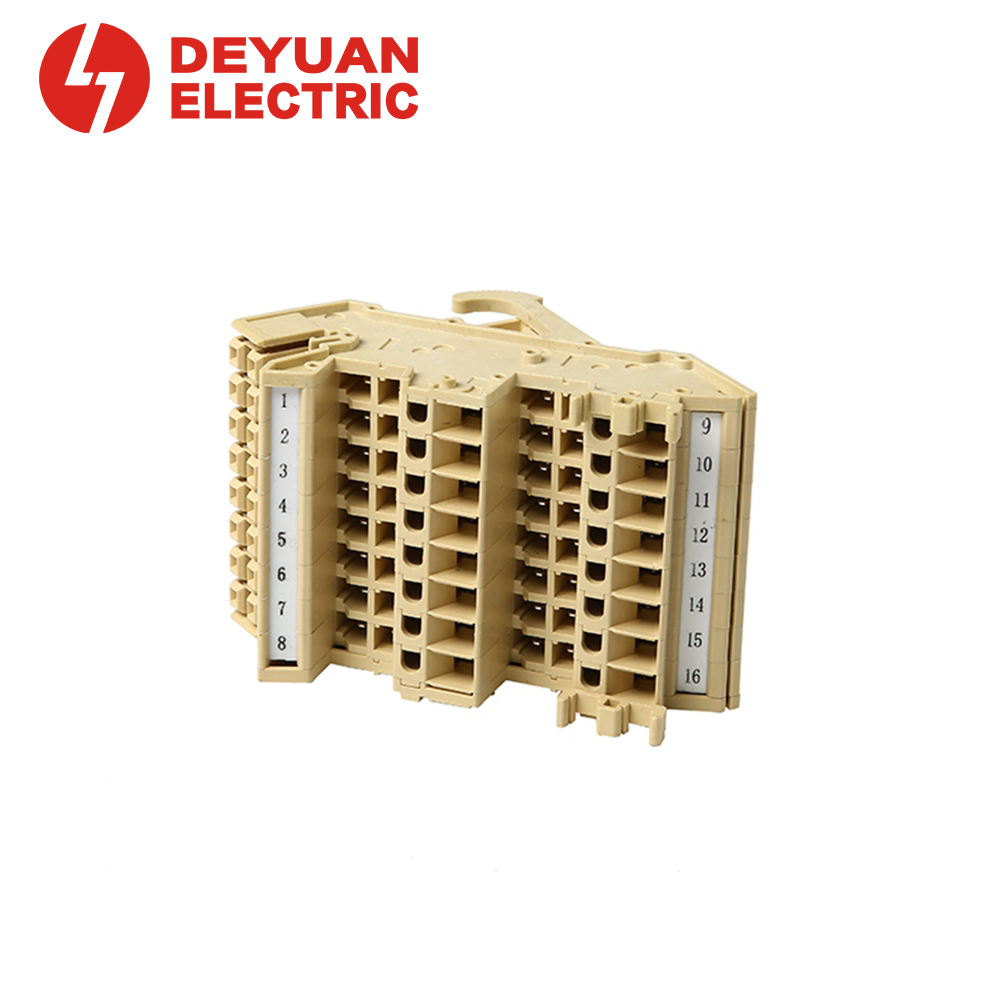

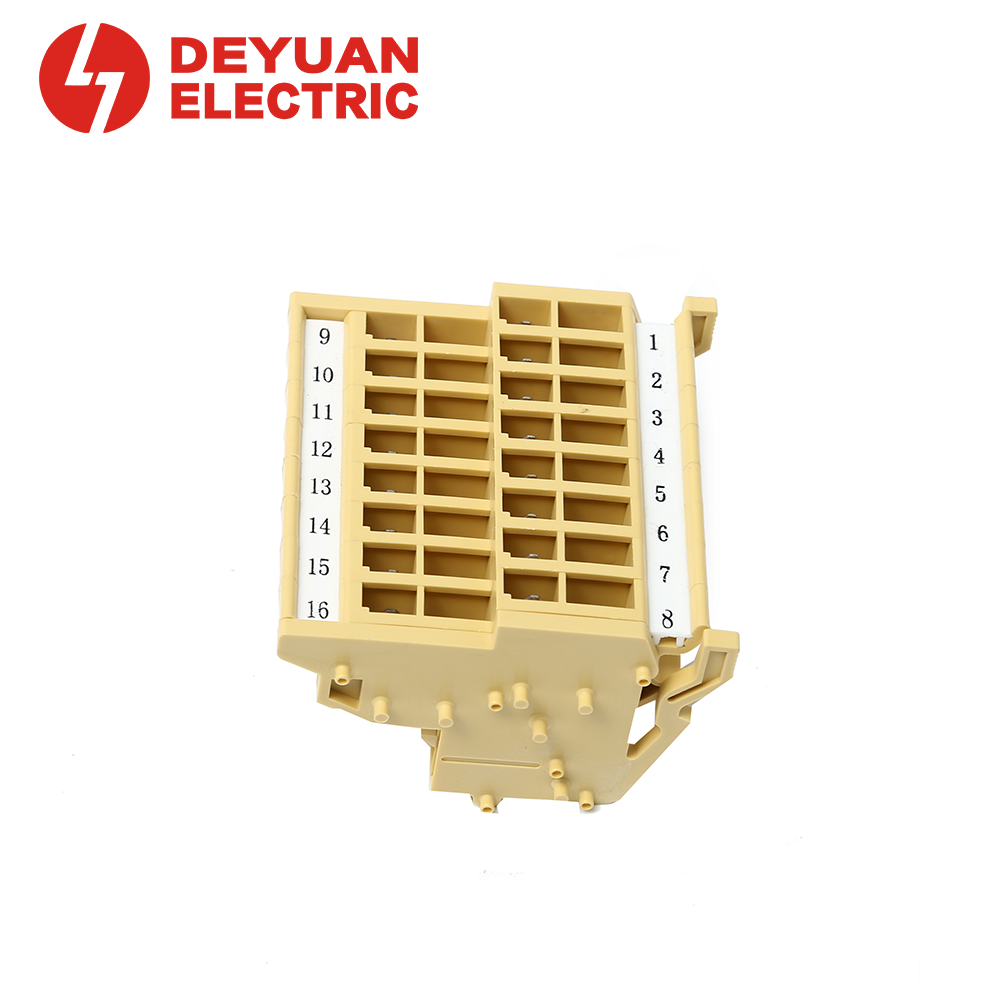

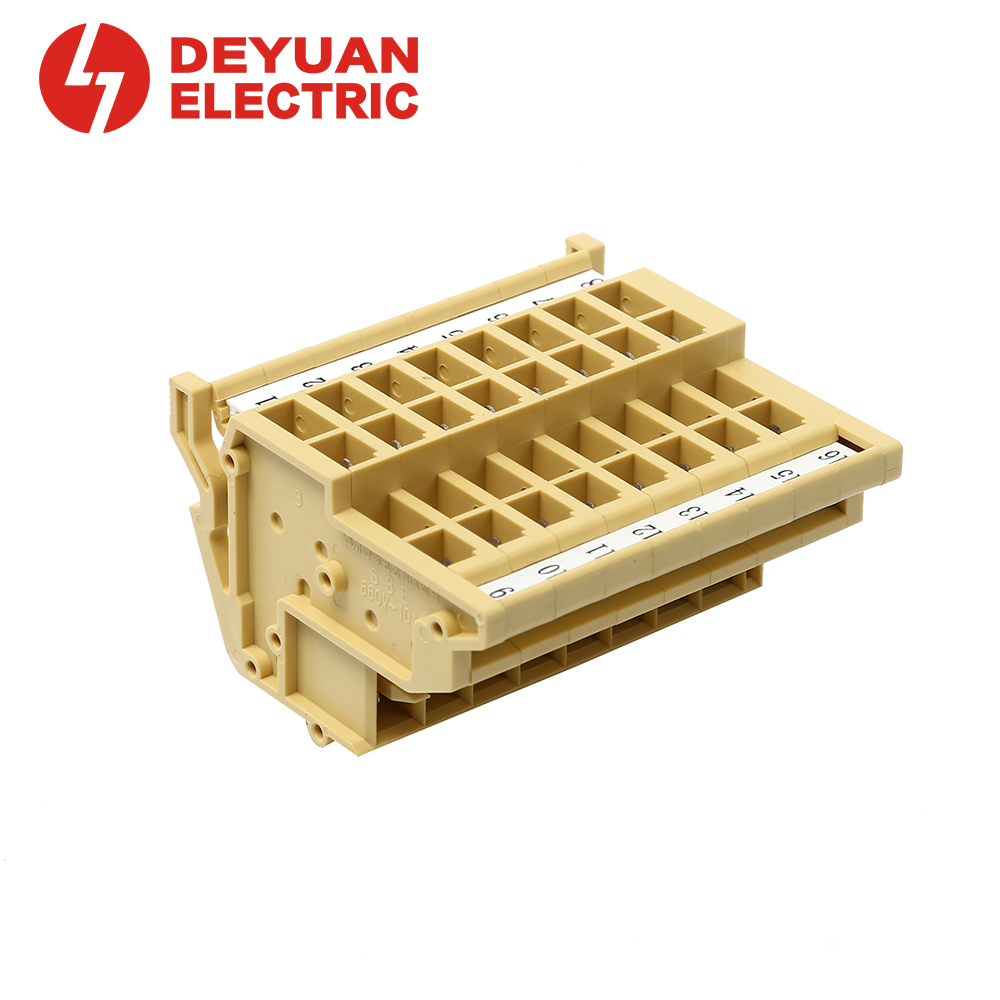

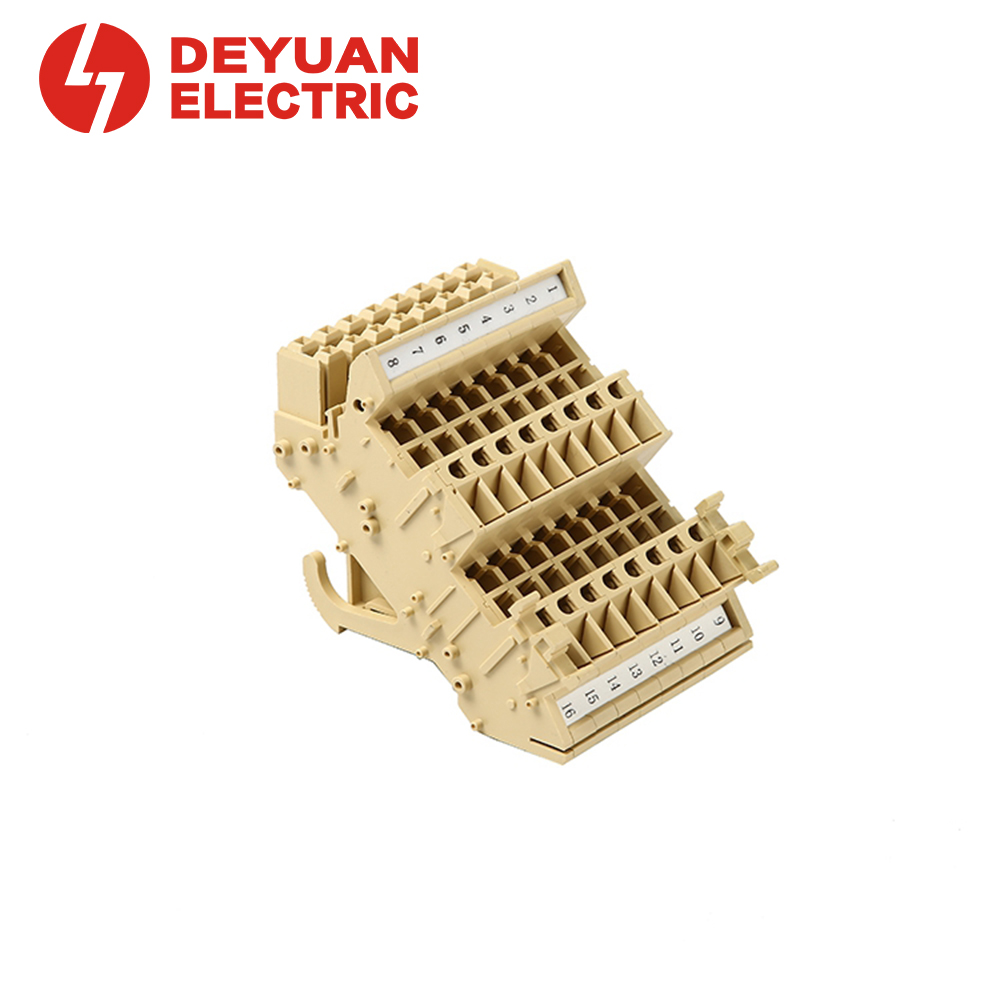

*B8E / S8E – pre‑wired secondary connectors for MNS2.0 and GCS drawout switchgear.*
