DLJ Series Manual Drawout Mechanism
Three‑position drawout mechanism for LV switchgear drawers

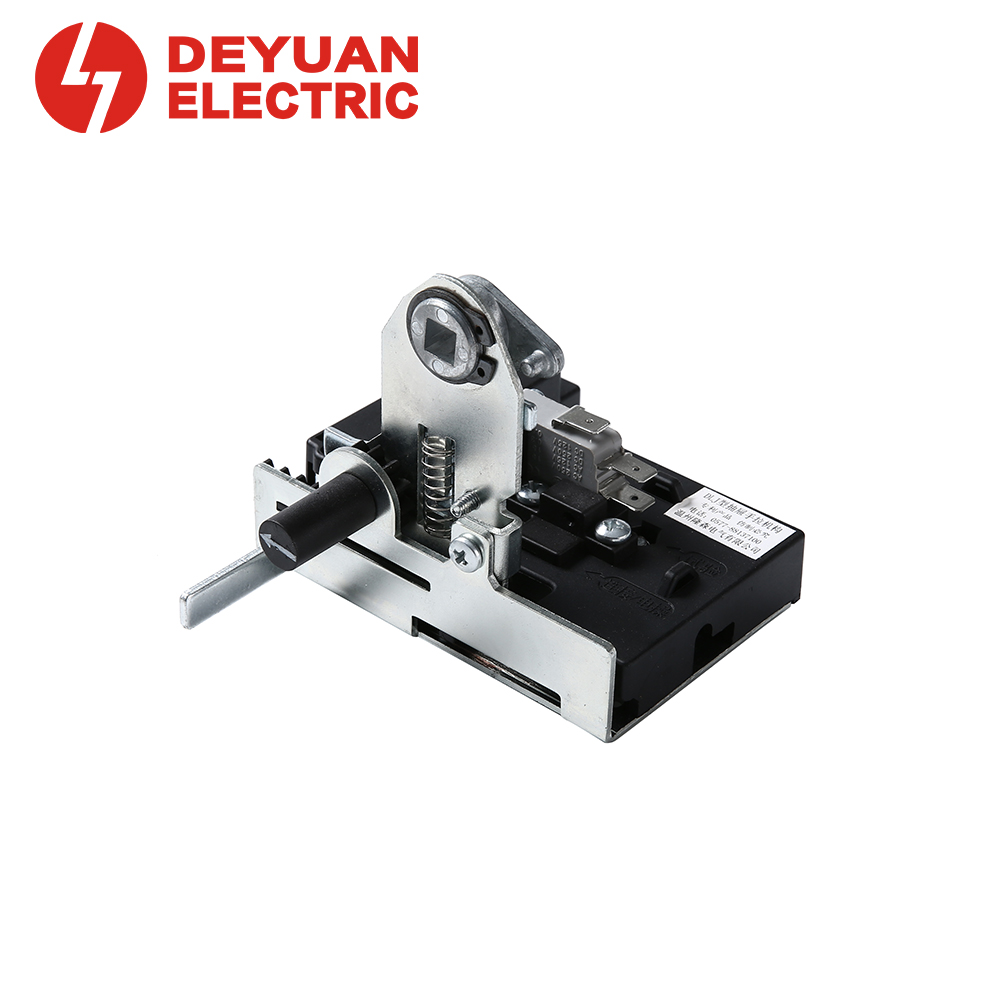

The DLJ series is a hand-operated Mechanism designed for low voltage MCC drawout drawers. It provides simple, tool‑free push/pull operation with reliable locking at three positions – separation, test, and connection.
Contact Us
Product Details
| Position | Primary Circuit | Secondary Circuit | Drawer Status |
| Disconnect | Disconnected | Disconnected | Drawer can be pushed in or pulled out |
| Test | Disconnected | Connected | Drawer locked |
| Connection | Connected | Connected | Drawer locked; main switch can be closed |
- Hand‑pull operation – Easy to operate, no special tools required
- Three positions – Separation (disconnect), test, and connection
- 24 mm travel from test to connection position
- Position locking – Standard locking at test and connection positions;
- Clear position indication – Visual display for each position
| Model No. | Micro Switch at Test Position | A (mm) | H (mm) |
| DLJ1.5T | 1 set | 6.2 | 75 |
| DLJ1.5T-1 | 1 set | 8.2 | |
| DLJ1.6T | 1 set | 6.2 | 82 |
| DLJ1.6T-1 | 1 set | 8.2 |
