DCT2 Series Main Circuit Moving Plug (Side Wiring)
Primary moving connector for side‑outgoing drawout switchgear
The DCT2 series is a main circuit moving plug specifically developed for economic side‑wiring outgoing schemes in low voltage drawout switchgear. Designed for 3‑pole applications, it is rated from 125A to 630A and fits drawers as low as 150mm in height (6E).
Contact Us
Pairing Fixed Connector
Product Details
- Side‑wiring outgoing – simplifies cable routing and reduces enclosure depth
- Double‑clip contact design with stainless steel magnetic insulation – minimizes eddy current temperature rise
- Convex points between inserts – increases surface area for better heat dissipation and conduction
- Ventilation slots in the plug housing – further reduces operating temperature
- Compatible with 55mm phase clearance and 6mm vertical busbar
| Current rating | 125A, 250A, 400A, 630A |
| Rated voltage | AC690V |
| Insulation voltage | 1000V |
| Withstand voltage | 3500V |
| Busbar thickness | 6mm |

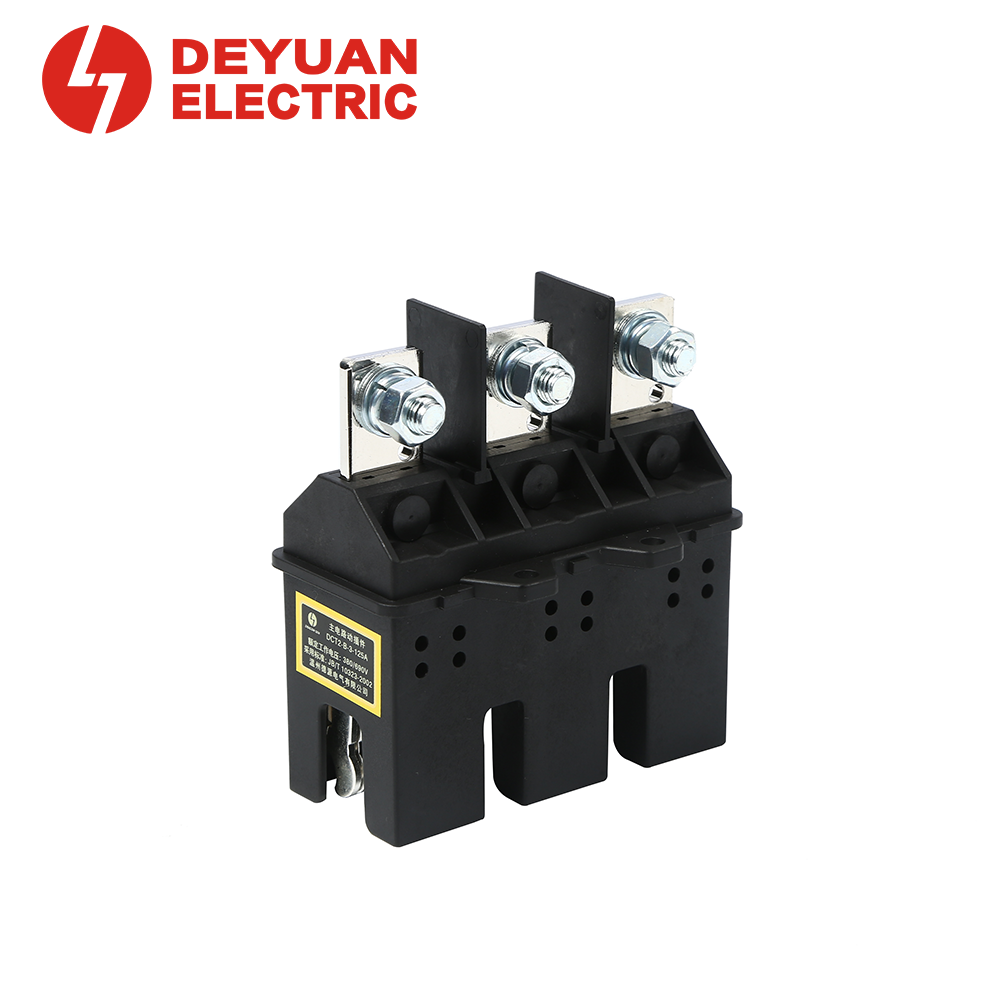

| Model No. DCT2-B-3-125A |  |  |  |
| Rated Current 125A |  | ||
| Side Wiring Assembly Drawing |  | ||

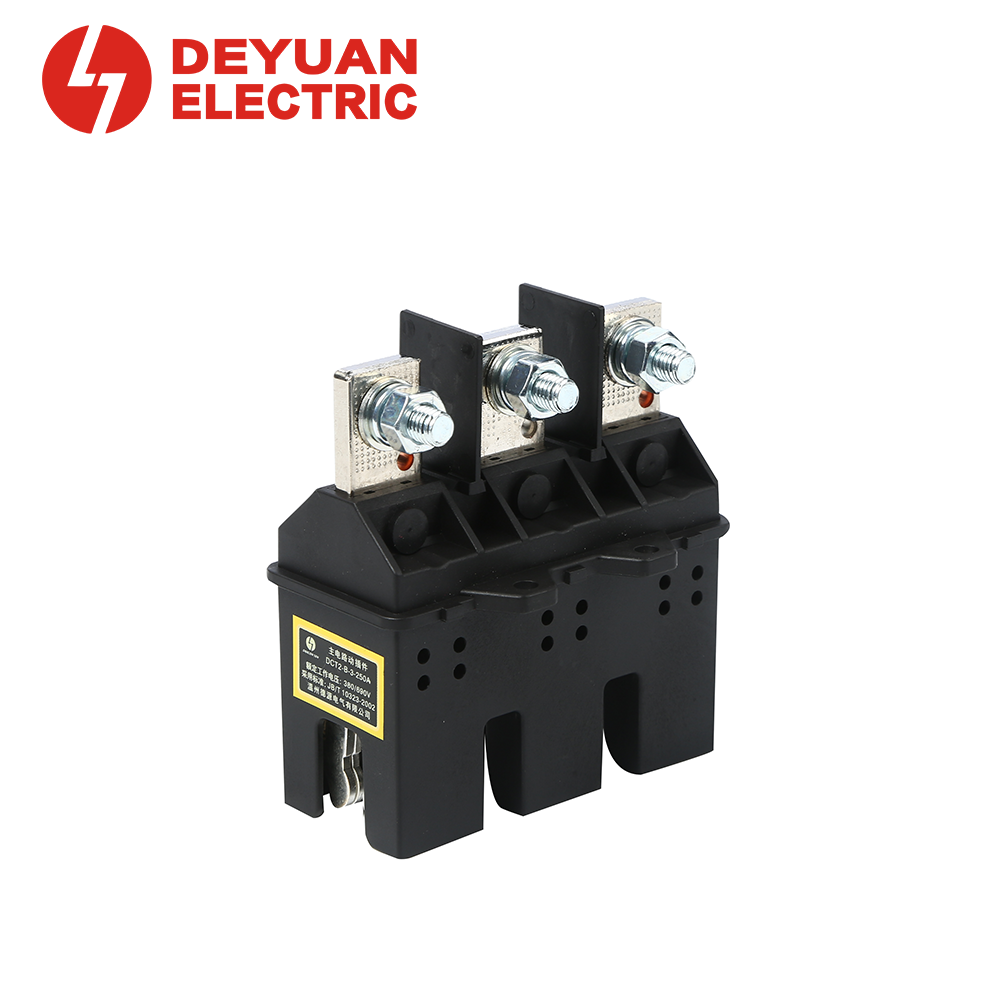

| Model No. DCT2-B-3-250A |  |  |  |
| Rated Current 250A | | ||
| Side Wiring Assembly Drawing | | ||

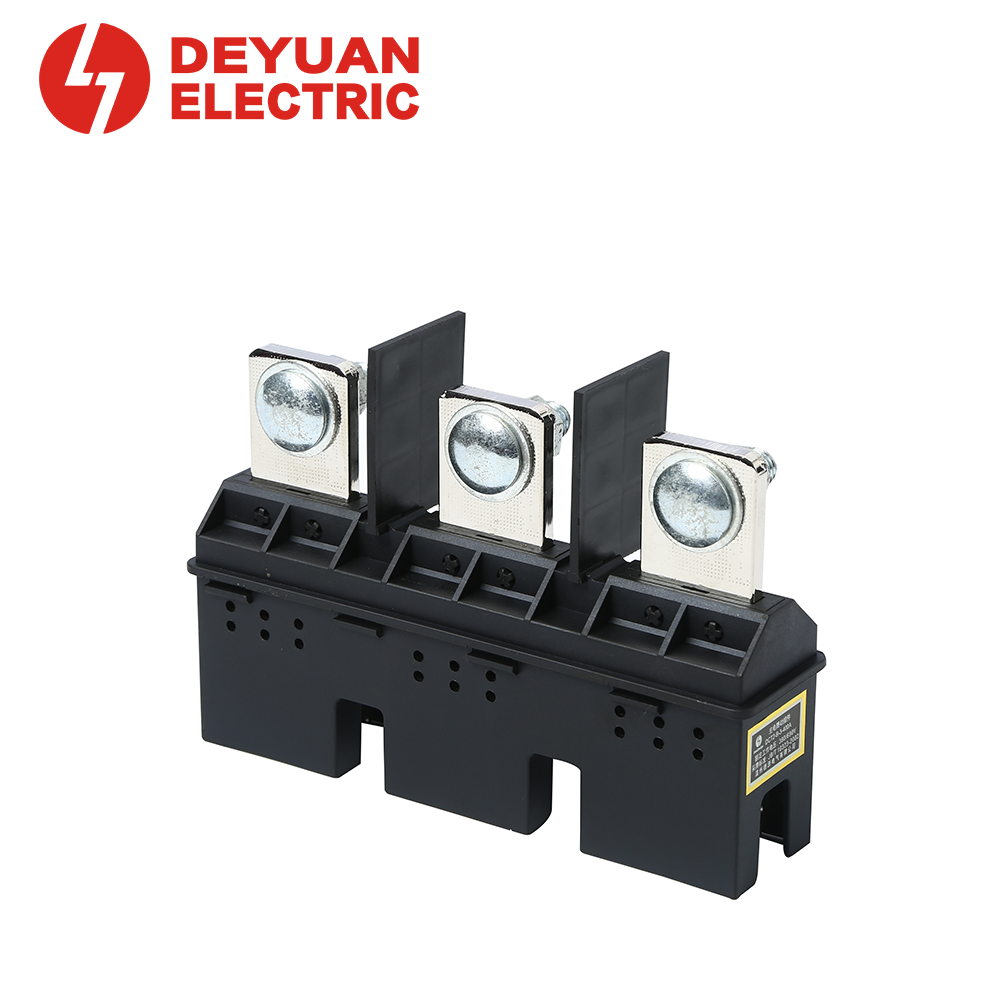

| Model No. DCT2-B-3-400A |  |  |  |
| Rated Current 400A |  | ||
| Side Wiring Assembly Drawing | | ||

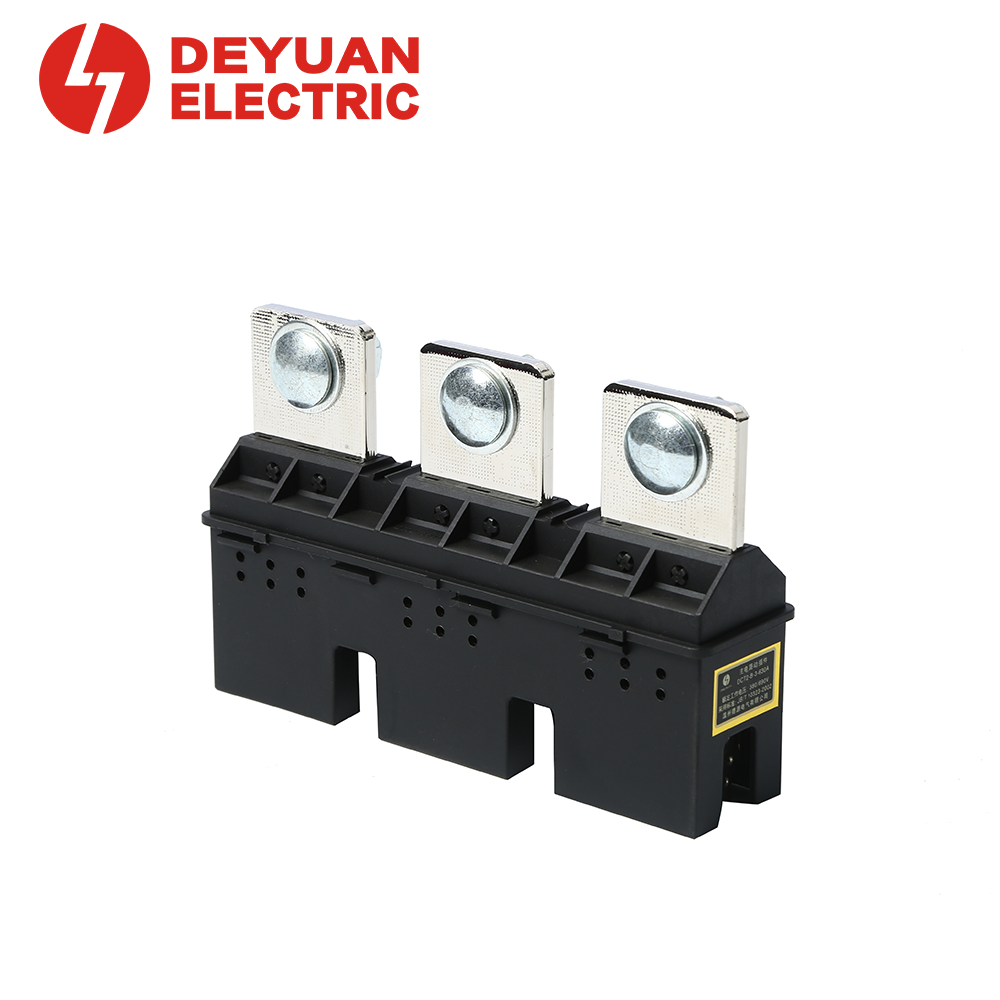

| Model No. DCT2-B-3-630A |  |  |  |
| Rated Current 630A | | ||
| Side Wiring Assembly Drawing | | ||
DCT2 Series Main Circuit Moving Plug (Side Wiring) must be used with the DCZ2 series fixed connector as a matched pair.
Cost‑effective, reliable, and space‑saving – DCT2 is the ideal main circuit moving plug for side‑outgoing MCC drawers.
 |  |  |  |
| DCZ2-B-3-125A | DCZ2-B-3-250A | DCZ2-B-3-400A | DCZ2-B-3-630A |
