DJL3-8 Electrical Enclosure Hinge
DJL3-8 Electrical Enclosure Hinge
For low voltage switchgear enclosure doors – cold rolled steel with powder coating

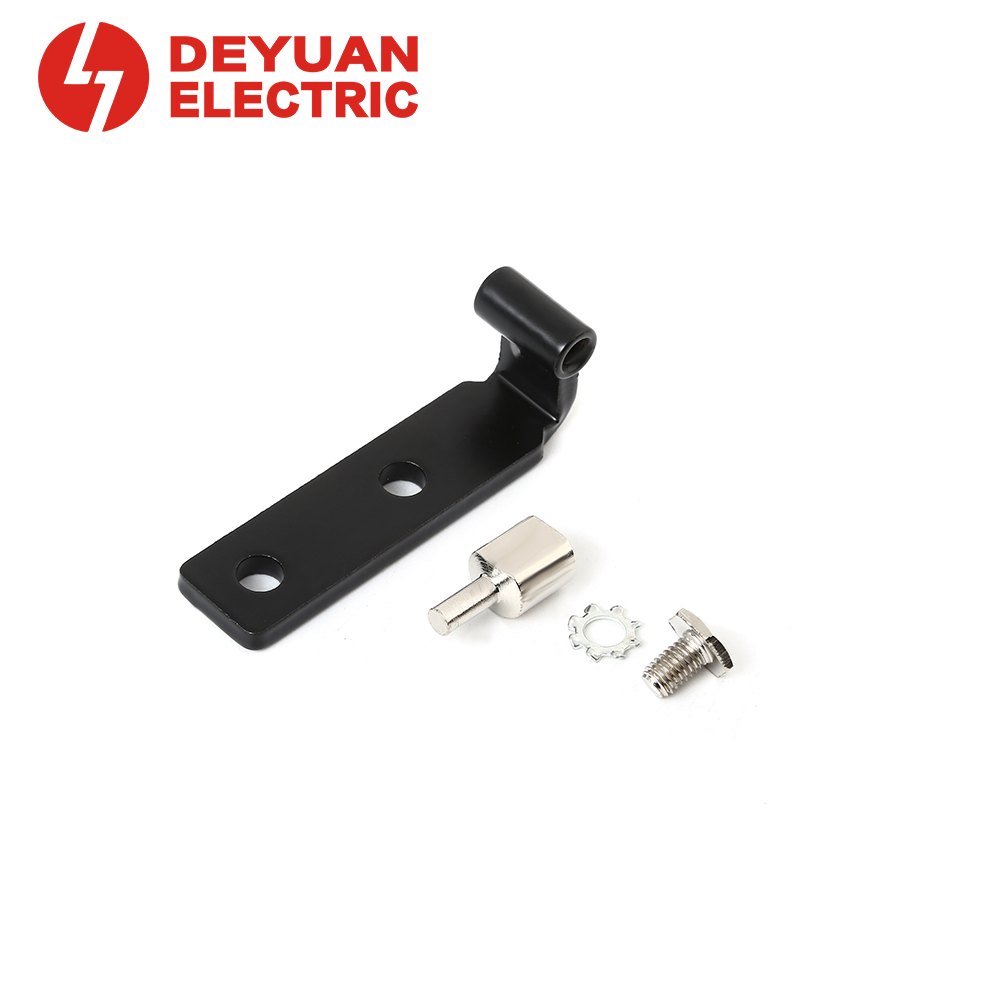

DJL3‑8 Electrical Enclosure Hinge is designed for large enclosure doors on low voltage switchgear. Made from cold rolled steel (CRS) with a powder coating (spray plastic) finish, it provides robust, corrosion‑resistant pivoting for heavy doors. The concealed design ensures a clean, professional appearance while maintaining smooth operation and long service life.
Contact Us
Product Details
| Property | Value |
| Material | Cold rolled steel (CRS / SPCC) |
| Surface treatment | Powder coating (spray plastic) |
| Thickness | 1.5 mm – 2.0 mm (typical) |
| Application | Enclosure door mounting |
Dimensions (Reference) – DJL3‑8
| Parameter | Value (mm) |
| Overall height | 25 |
| Width (mounting flange) | 20 |
| Offset (to pivot) | 7.8 |
| Door panel cutout length | 22.5 |
| Material thickness | 1.5 |
Door Panel Cutout (Mounting Holes)
| Feature | Size / Position |
| Hole diameter | Φ5 mm (for through fixing) |
| Through holes (pair) | 2‑Φ5 (back‑to‑back fixing) |
| Recommended screw | M4 or M5 self‑tapping screw / machine screw with nut |
DJL3‑8.1 Welded Hinge Version
The DJL3‑8.1 is a variant designed for welding directly onto the door frame or enclosure structure. Welding dimensions are available in the product drawing. Please contact technical department for detailed welding dimensional drawings.
- Cold rolled steel construction – High strength, durable, and rigid
- Concealed design – Hidden when door is closed, clean aesthetic
- Powder coating finish – Excellent corrosion resistance, uniform appearance, scratch‑resistant
- Two fixing options – Screw‑mount (DJL3‑8) or weld‑mount (DJL3‑8.1)
- Smooth operation – Precision‑formed barrel for consistent pivoting
- Compatible with large enclosure doors – Suitable for MNS, GCS, and similar switchgear
