DCT6C Series 4-Pole Primary Moving Connector
We can support your OEM/ODM needs and provide one-stop customized solutions.

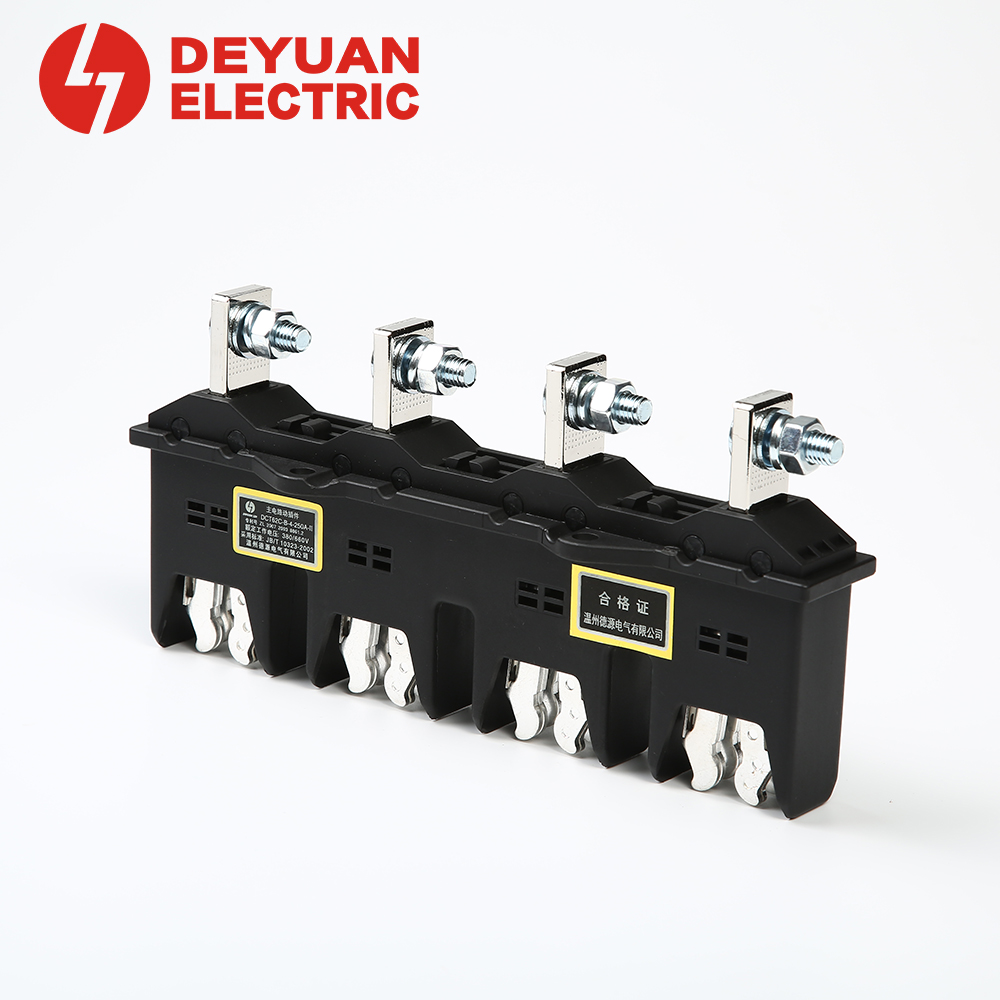

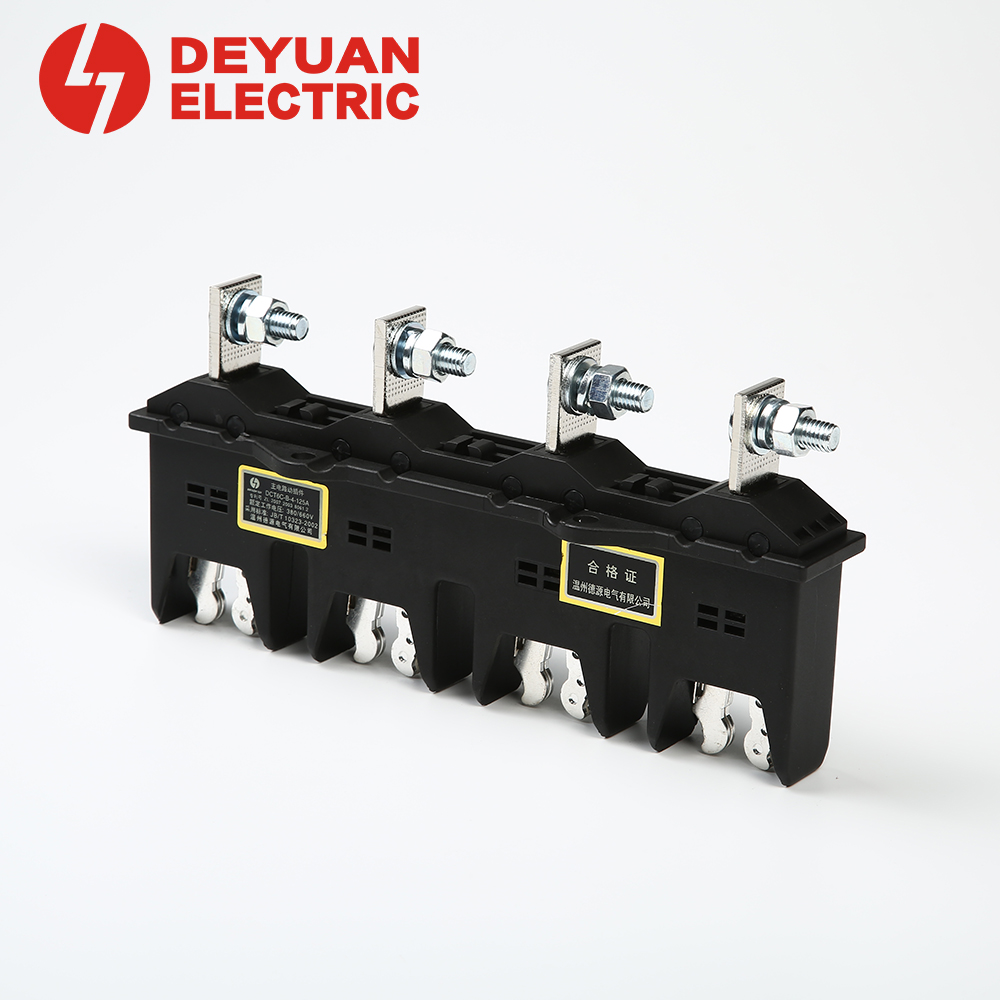

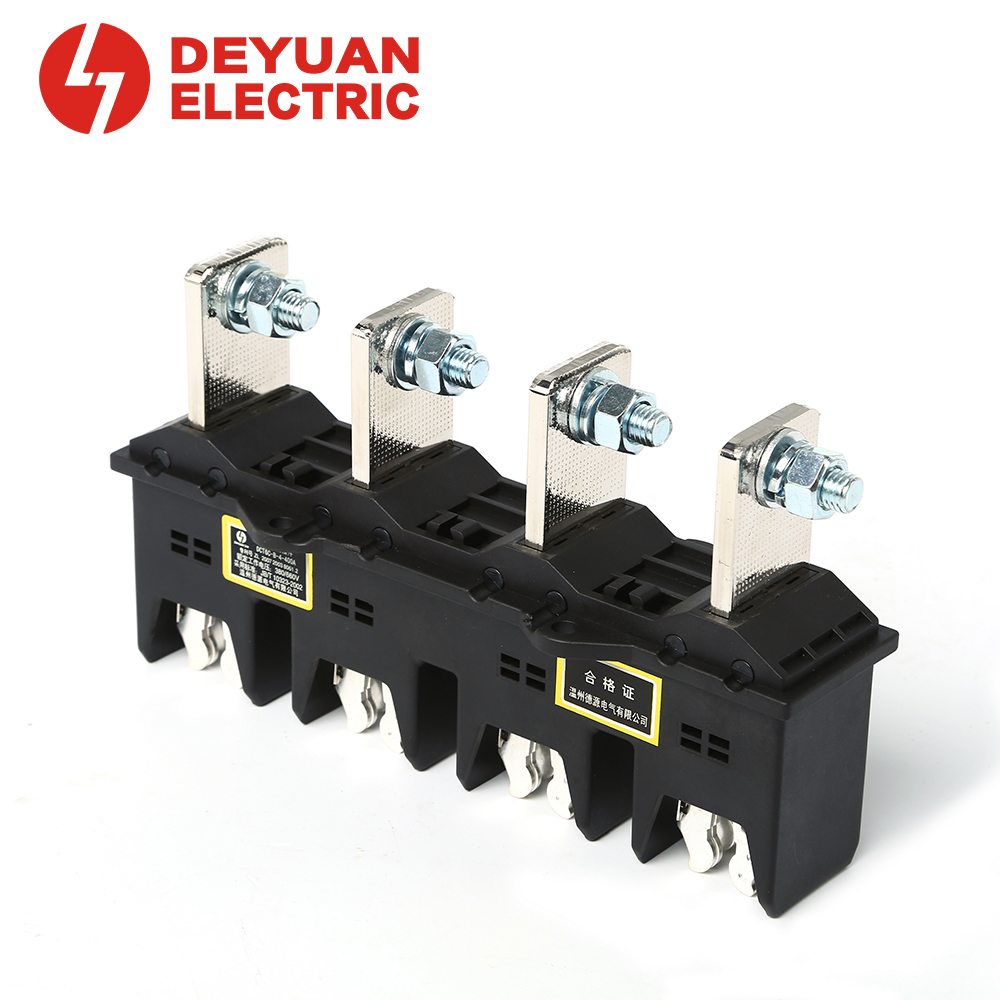

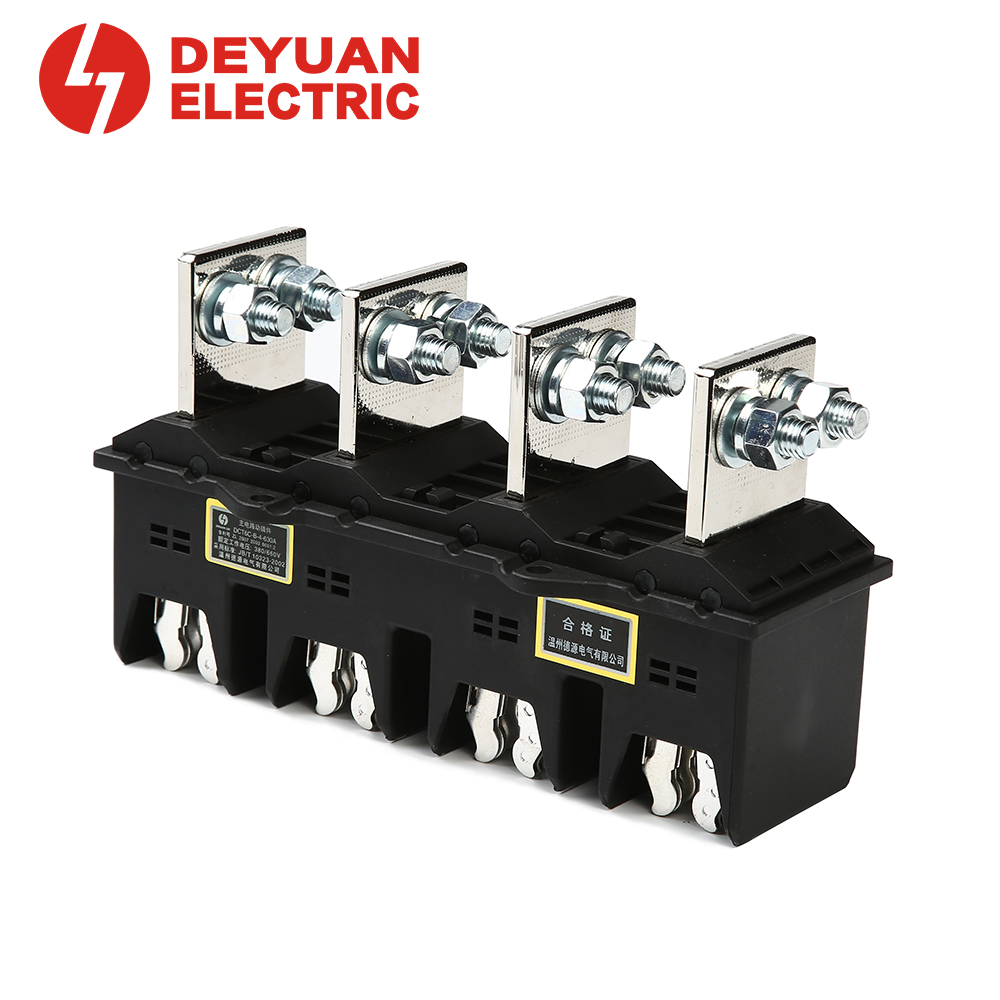

DCT6C Series 4-Pole Primary Moving Connector
High‑reliability main circuit connection with patented double‑clip design
The DCT6C series 4‑pole moving connector is engineered for drawer‑type LV switchgear requiring four‑pole main circuit switching (e.g., for neutral or protected conductor switching). Its double‑clip contact structure ensures consistent mating force, while convex points between inserts increase surface area for superior heat dissipation. Ventilation slots on both plug and socket housings further reduce temperature rise – a critical advantage for high‑density applications.
Contact Us
Pairing Fixed Connector
Product Details
- Double‑clip design – reliable plug‑in performance
- Enhanced heat dissipation – convex inserts + ventilation slots
- Standardized phase clearance (55mm) and busbar thickness (6mm)
| Rated voltage | AC690V |
| Rated current | 80A,125A,250A,400A,630A |
| Rated insulation voltage | 1000V |
| Power frequency withstand voltage | 3500V |
| Vertical busbar phase clearance | 55mm |
| Vertical busbar thickness | 6mm |
 |  |
DCT6C Series 4-Pole Primary Moving Connector must be used with the DCZ6 series 4‑pole fixed connector as a matched pair. Both are required for proper main circuit connection.
 |  |  |  |
| DCZ6-B-4-125A | DCZ6-B-4-250A | DCZ6-B-4-400A | DCZ6-B-4-630A |
