D8PT538 Series MCC Panel Door Lock
We can support your OEM/ODM needs and provide one-stop customized solutions.

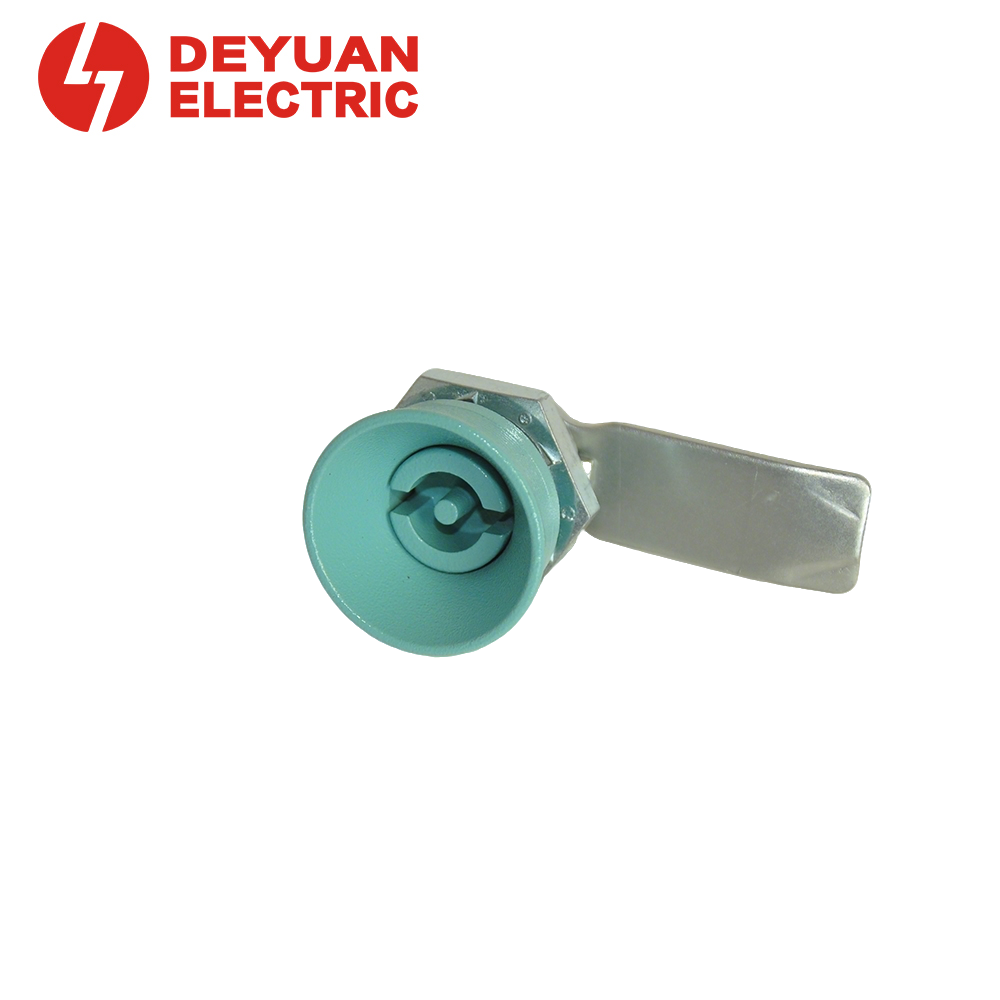

D8PT538 Series MCC Panel Door Lock
Cam lock for low voltage switchgear and MCC enclosures
The D8PT538 series is a cam lock (lock with tongue) specifically designed for MCC panel doors and low voltage switchgear enclosures. It provides secure locking with a rotating tongue mechanism. Available in multiple height (H) options to suit different door panel thicknesses and mounting requirements.
Manufactured from Cold rolled steel with a corrosion‑resistant finish, these locks offer reliable operation and long service life in indoor electrical environments.
Contact Us
Product Details
| Property | Value |
| Body material | Zinc alloy / Cold rolled steel |
| Surface treatment | Powder coating / Zinc‑plated |
| Tongue material | Steel, zinc‑plated |
| Color | Black (standard) / Custom available |
- Cam locking mechanism – Rotating tongue (ordered separately or included) engages with cabinet frame
- Multiple height options – H from 22 mm to 49 mm, suitable for various door panel thicknesses
- Standardised width – Most models share 38 mm B dimension for uniform cutout
- Corrosion resistant – Suitable for indoor MCC and switchgear environments
- Key operated – Standard key lock (2 keys included)
- Easy installation – Single hole mounting, secured with nut or retaining ring
| Parameter | Value |
| Mounting hole shape | Round (typical Φ19–22 mm) or square |
| Recommended panel thickness | 1.5 mm – 3.0 mm (depending on H value) |
| Locking type | Cam lock (tongue) |
| Rotation | 90° or 180° (standard) |
D8PT538 series – reliable cam locks for MCC panel doors and LV switchgear enclosures.
