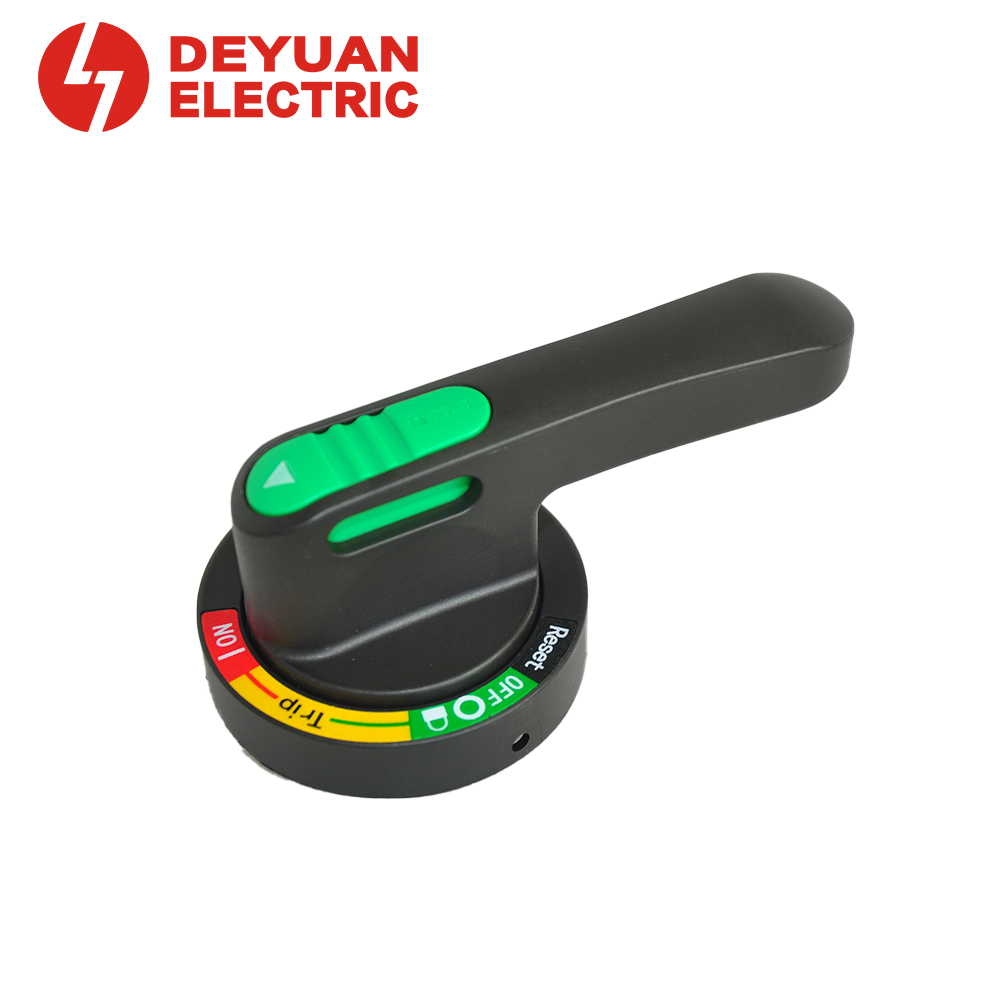

DSB7 Drawer Mechanism Handle
Opening/closing handles for drawout switchgear drawers
The DSB7 and DSB8 series are Drawer Modular Mechanism Handle designed for low voltage drawout switchgear. They are used to operate the main switch (circuit breaker) from the drawer front panel, with mechanical interlock compatibility. Available in multiple sizes – small, short, medium, and long – to suit different drawer heights (8E/4, 8E/2, and unit drawers).
Contact Us
Product Details

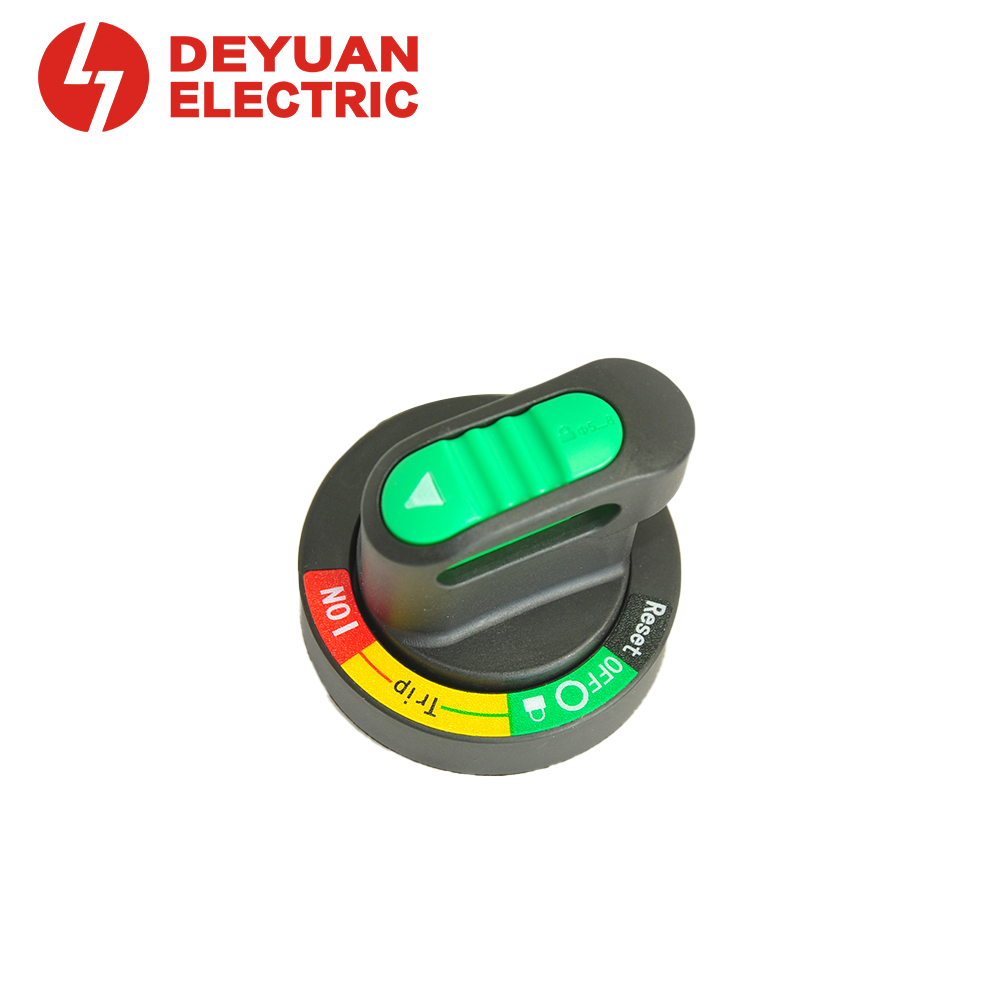

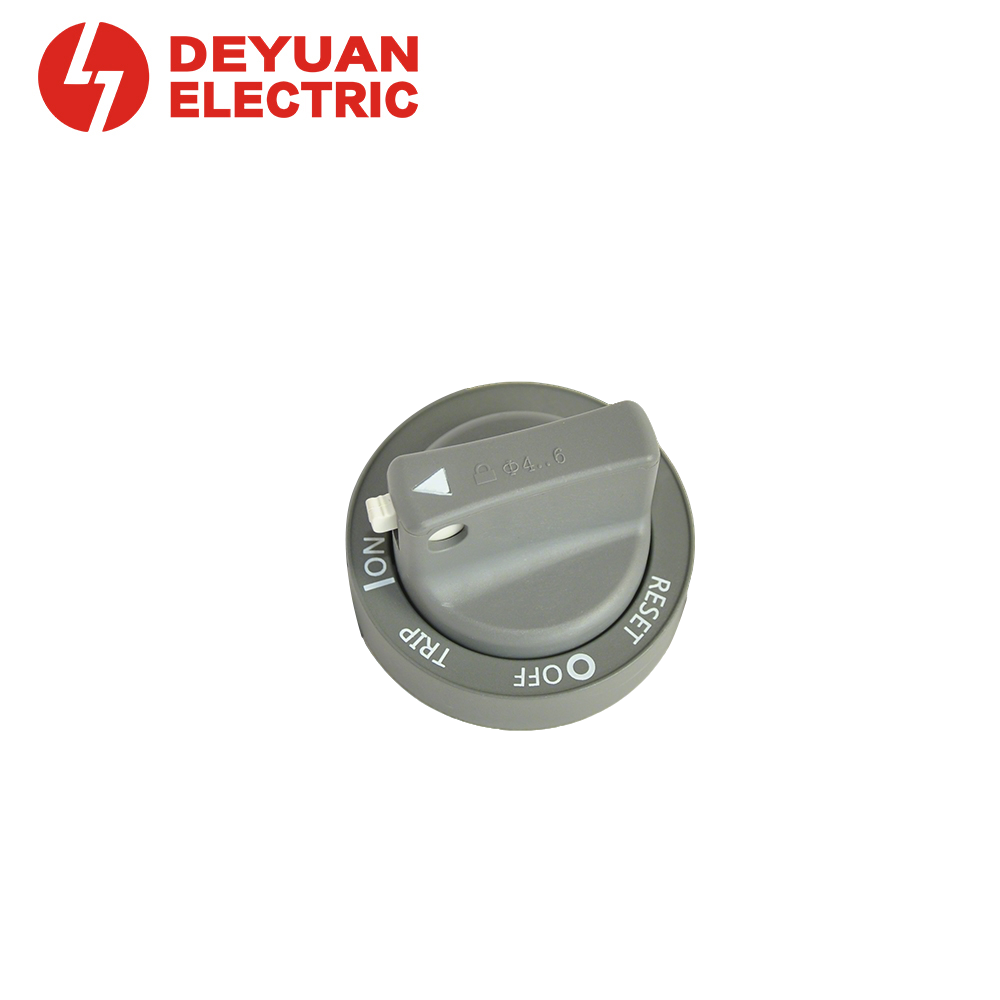

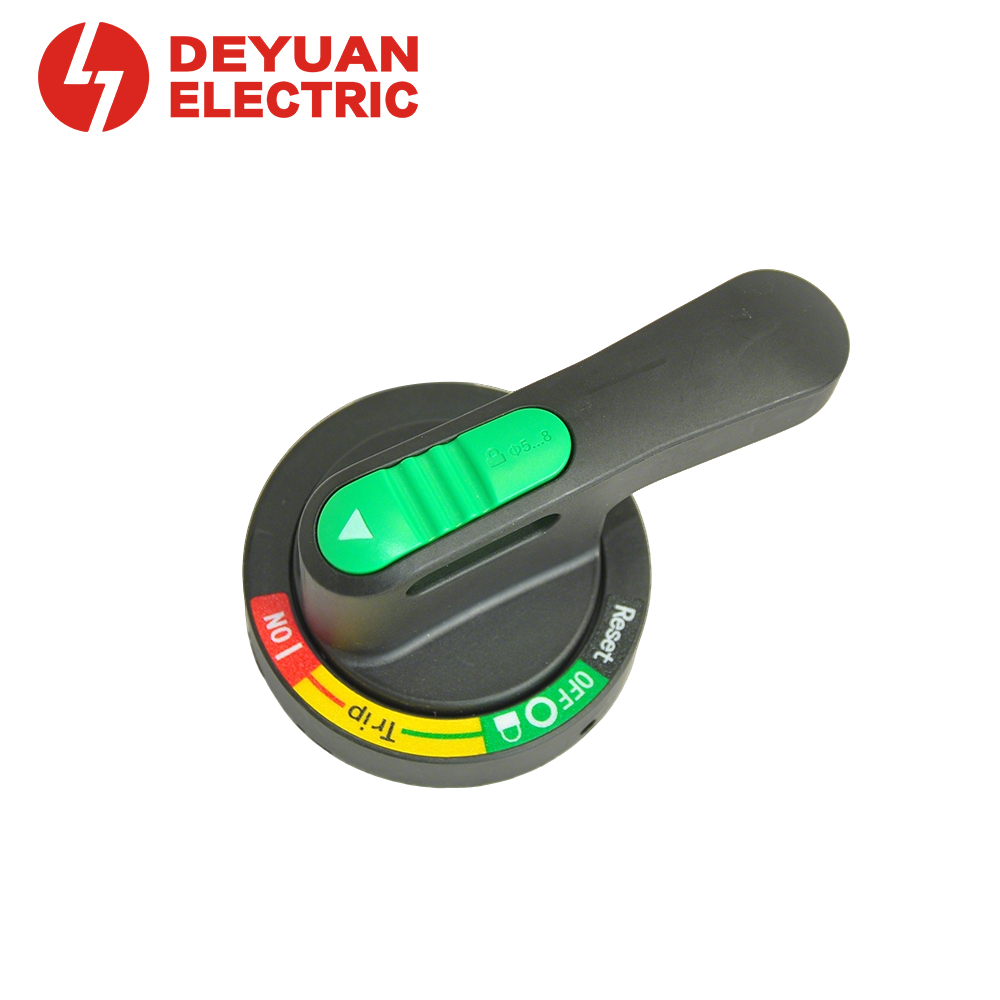

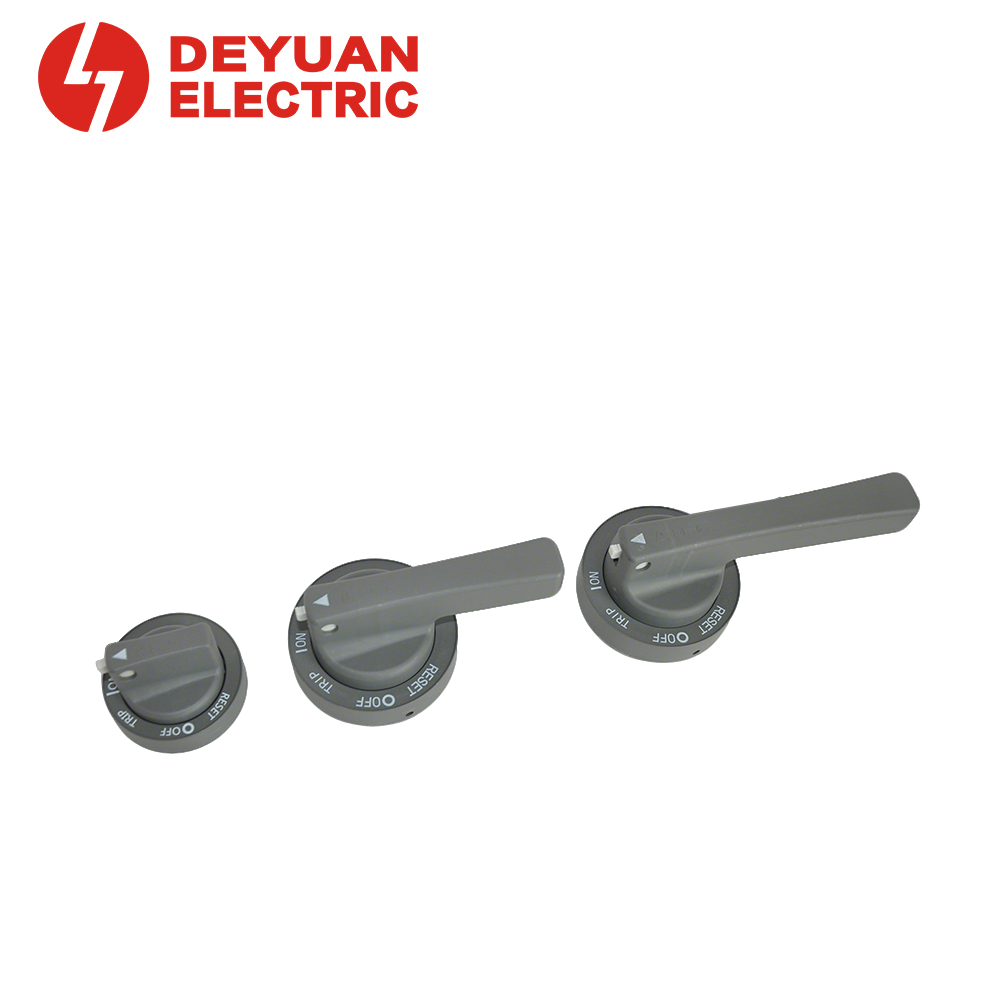

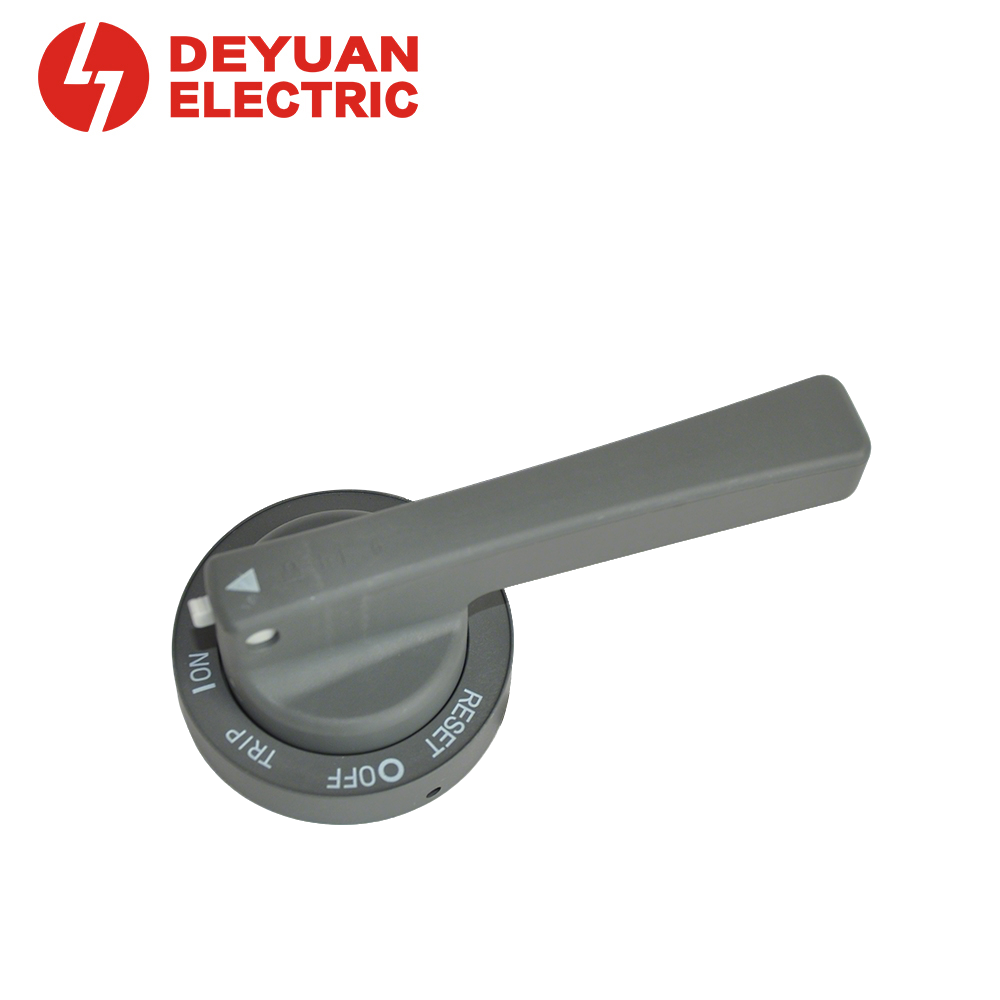

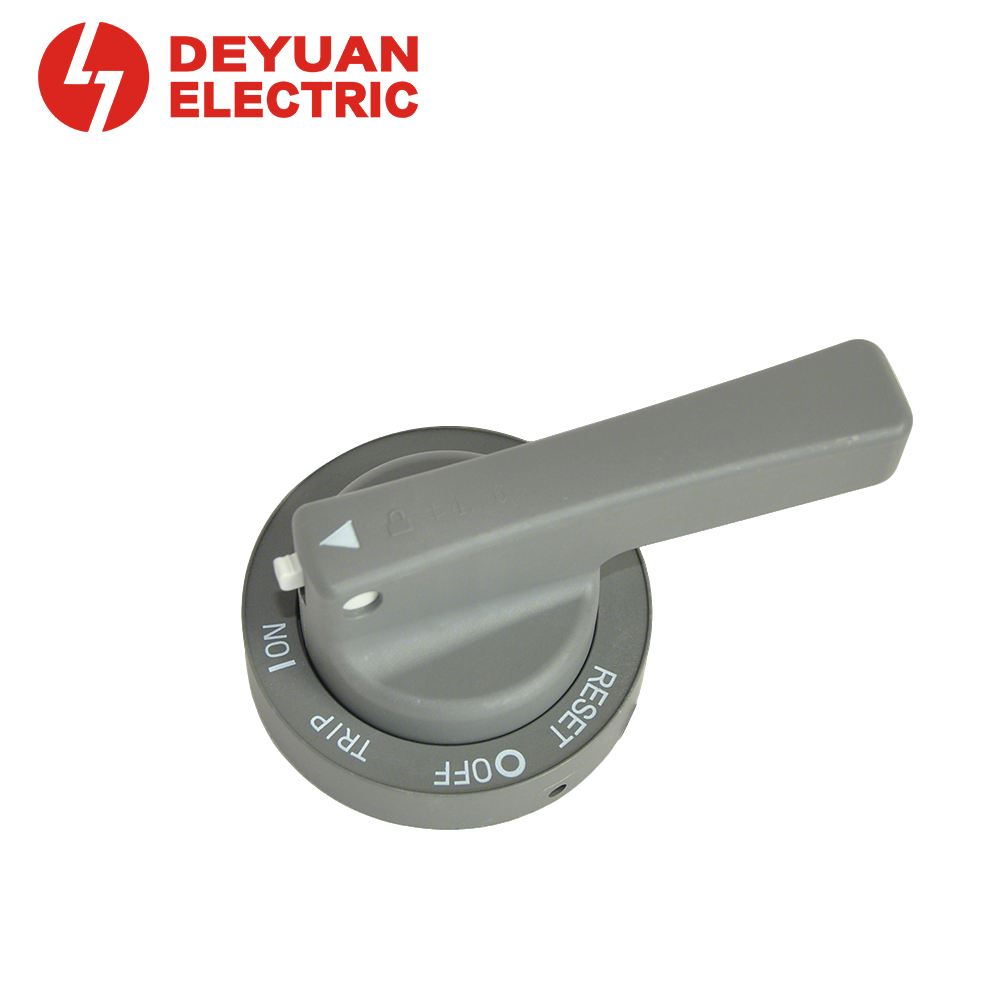

- Multiple handle sizes – Small, short, medium, long
- Shaft options – 6×6 mm, 8×8 mm, 10×10 mm square drive
- Compact to full-size – For 8E/4, 8E/2, and standard unit drawers
- Standard mounting – Front panel installation with self‑tapping screws
- Durable construction – Engineering plastic, suitable for frequent operation
| Parameter | Value |
| Material | High‑strength engineering plastic |
| Shaft sizes | 6×6 mm, 8×8 mm, 10×10 mm square |
| Mounting | Front panel with self‑tapping screws |
| Mechanical life | ≥10,000 operations |
| Operating temperature | -25°C to +70°C |
| Color | Black / Red / Grey (custom on request) |
