DJCF13 Control Circuit Connector

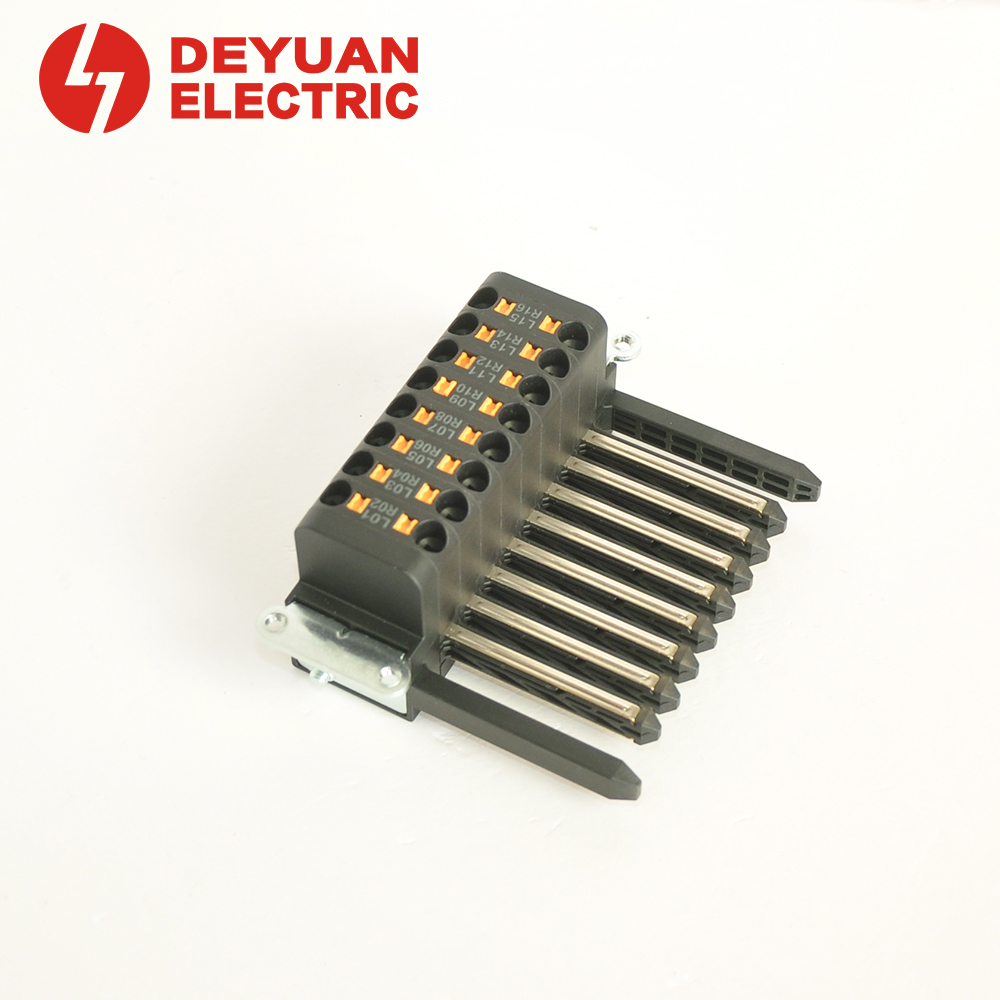

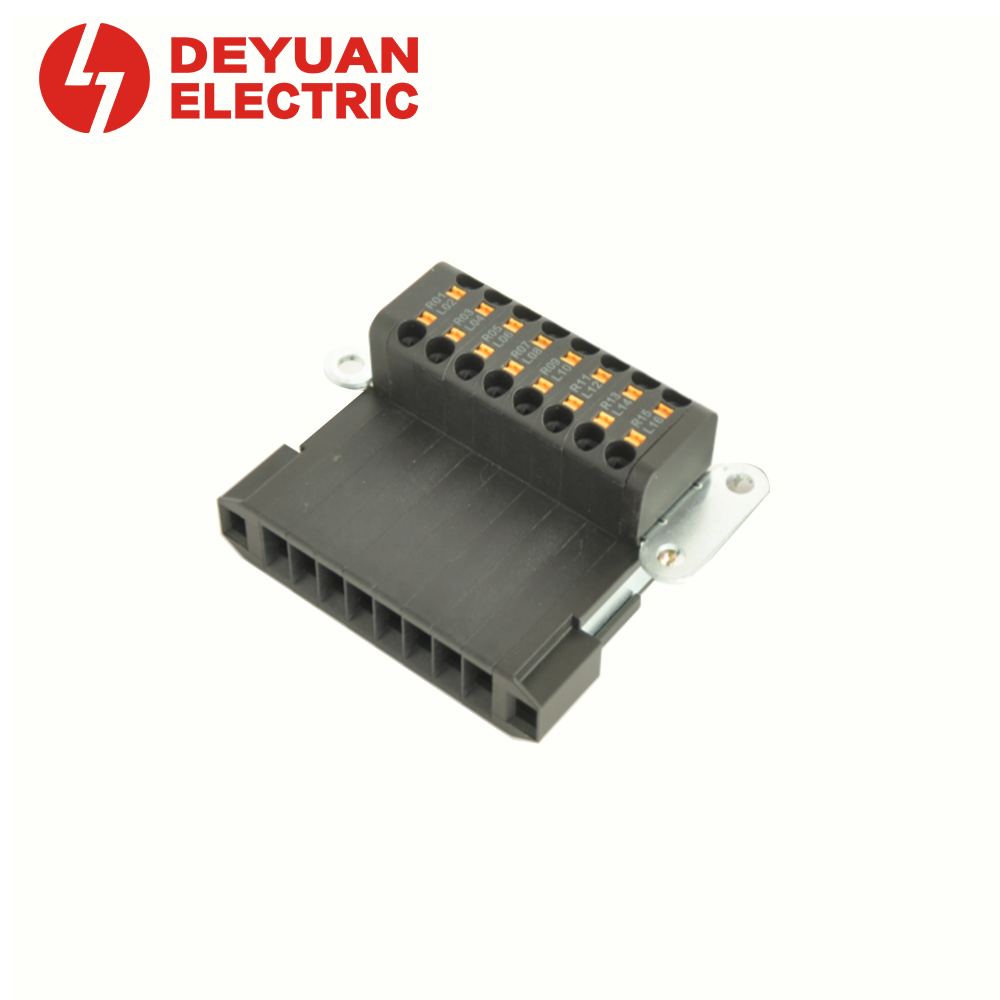

DJCF13 Series Control Circuit Connector (Plug-in Spring Terminal)
Floating design, guided plug-in, fast spring terminal connection for drawout switchgear
The DJCF13 series Control circuit connector are designed for control circuits in low voltage drawout switchgear. They feature a plug-in spring terminal that replaces traditional screw terminals, enabling faster and more efficient wiring. The floating fixed connector compensates for sheet metal tolerances, while the guided design minimizes the risk of damage during mating.
Contact Us
Product Details
- Fast wiring – Plug-in spring terminal, no screw tightening required
- Guided design – Reduces misalignment and prevents product damage
- Floating fixed connector – Compensates for manufacturing tolerances, ensures reliable mating
- Movable after mounting – Shoulder self-tapping screws allow fine adjustment of the socket position
| Parameter | Value |
| Rated current | 10A |
| Rated voltage | AC 220V/380V, DC 110V |
| Wiring type | Plug-in spring terminal |
| Mounting screws | M4×8 cross recessed pan head self-tapping screws (4 pcs) + shoulder self-tapping screws (4 pcs) |
| Application | Side-wiring drawer units |
Models & Dimensions
| Model No. | L1 (mm) | L2 (mm) | L3 (mm) |
| DJCF13-5/10 | 52 | 71 | 65 |
| DJCF13-6/12 | 60 | 79 | 73 |
| DJCF13-8/16 | 76 | 95 | 89 |
| DJCF13-10/20 | 92 | 111 | 105 |
| DJCF13-12/24 | 108 | 127 | 121 |
| DJCF13-13/26 | 116 | 135 | 129 |
| DJCF13-16/32 | 140 | 159 | 153 |
- Overall dimension at connection position: 100.5 mm
- Symmetric centerline of secondary pins – aligns with right side panel and terminal block
- Mounting location: Right side panel of the drawer (internal)
- After shoulder screw installation – the secondary socket can move slightly for easier mating
