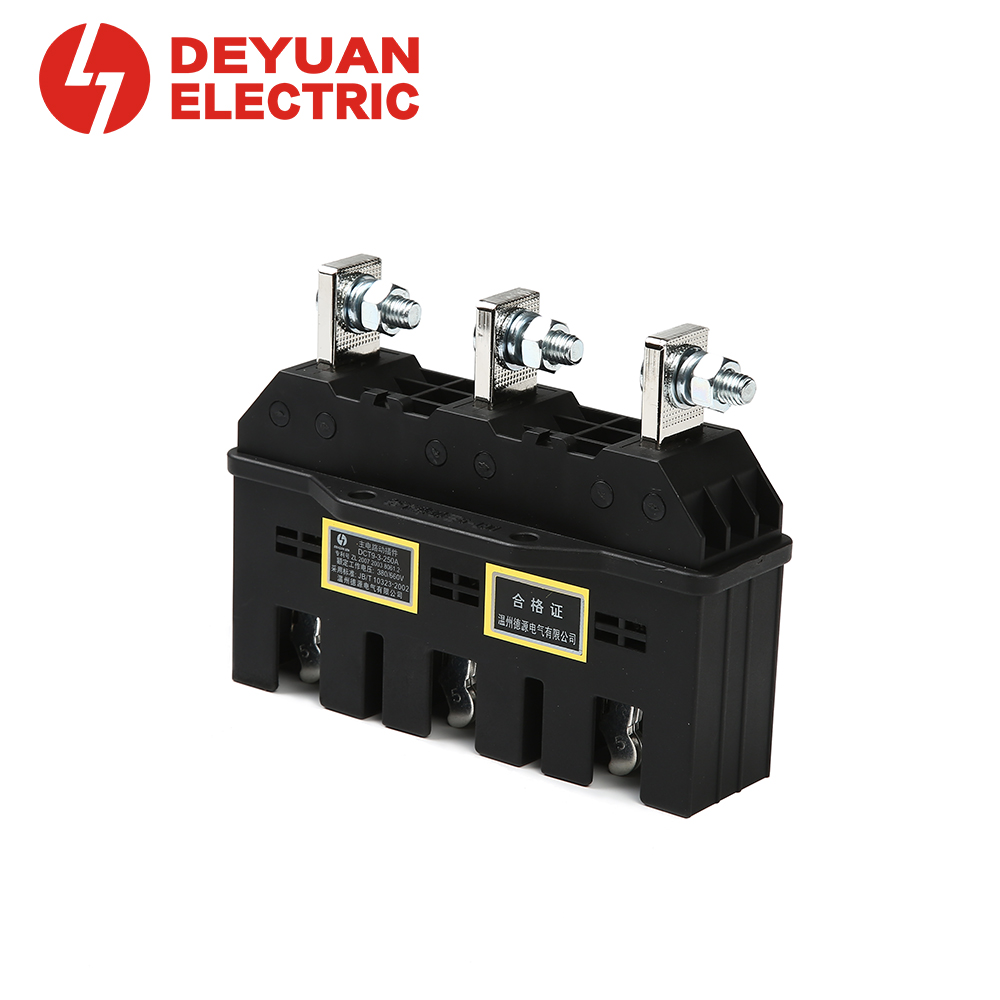

DCT9 Series 3-Pole Main Circuit Moving Connector
Designed for 50mm busbar phase clearance – 5mm busbar thickness
The DCT9 series three‑pole moving connector is specifically engineered for low voltage switchgear enclosures with 50mm vertical busbar phase spacing and 5mm thick busbars. It delivers reliable primary power transmission from drawer units to the main busbar system.
Contact Us
Pairing Fixed Connector
Product Details
| Model | Code | Current Rating |
| DCT9-B-3-125A | DCT9-31-3 | 125A |
| DCT9-B-3-250A | DCT9-32-3 | 250A |
| DCT9-B-3-400A | DCT9-33-3 | 400A |
Key features
- Optimized for 50mm phase distance and 5mm busbar thickness
- Robust contact design for stable electrical performance
- Suitable for MCC drawer units requiring compact phase spacing
 |  |

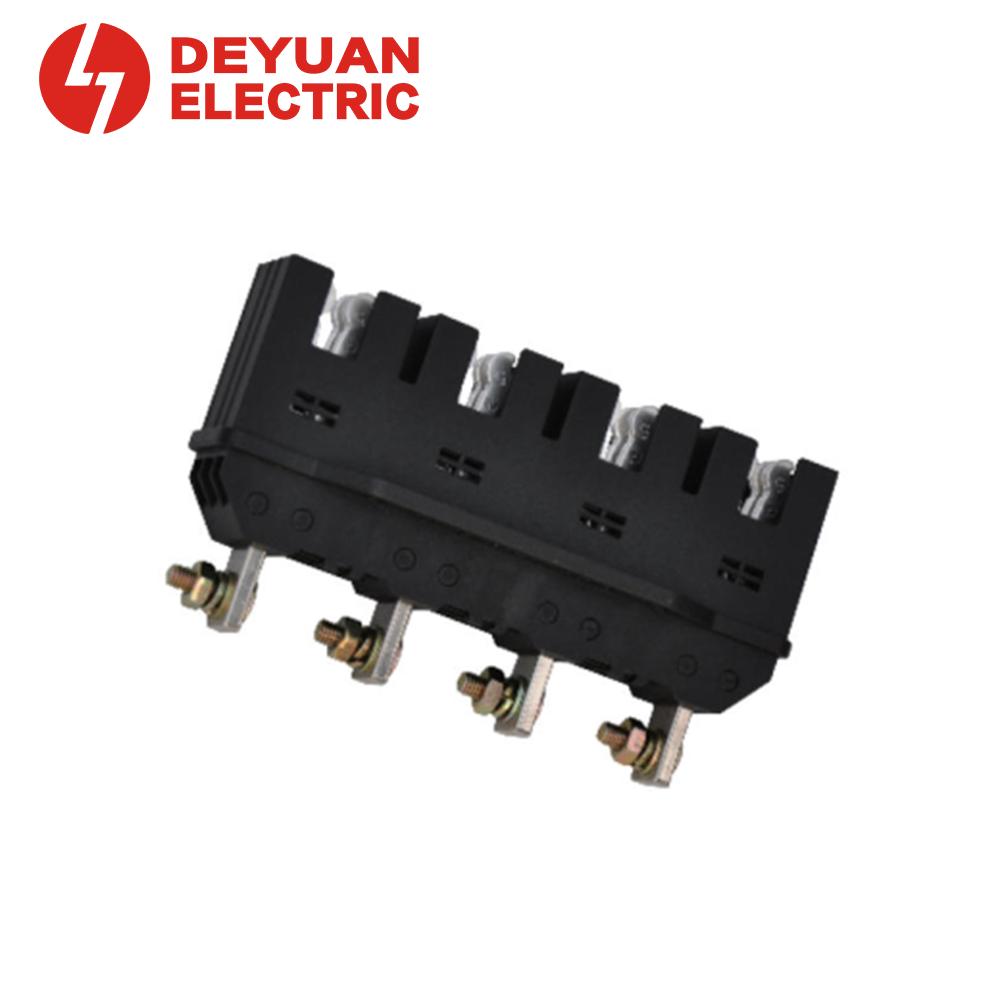

This moving connector is designed to mate with the corresponding 50mm Phase Clearance 3-Pole Fixed Socket. Both must be used as a matched pair for proper main circuit connection.
 | |  | |
| 250A 3 Poles fixed socket | 400A 3 Poles fixed socket | 250A 4 Poles fixed socket | 400A 4 Poles fixed socket |
| 5DY 573 007.2 | 5DY 573 008.2 | 5DY 573 007.1 | 5DY 573 007.1 |
