DJCF7 Secondary Circuit Connector

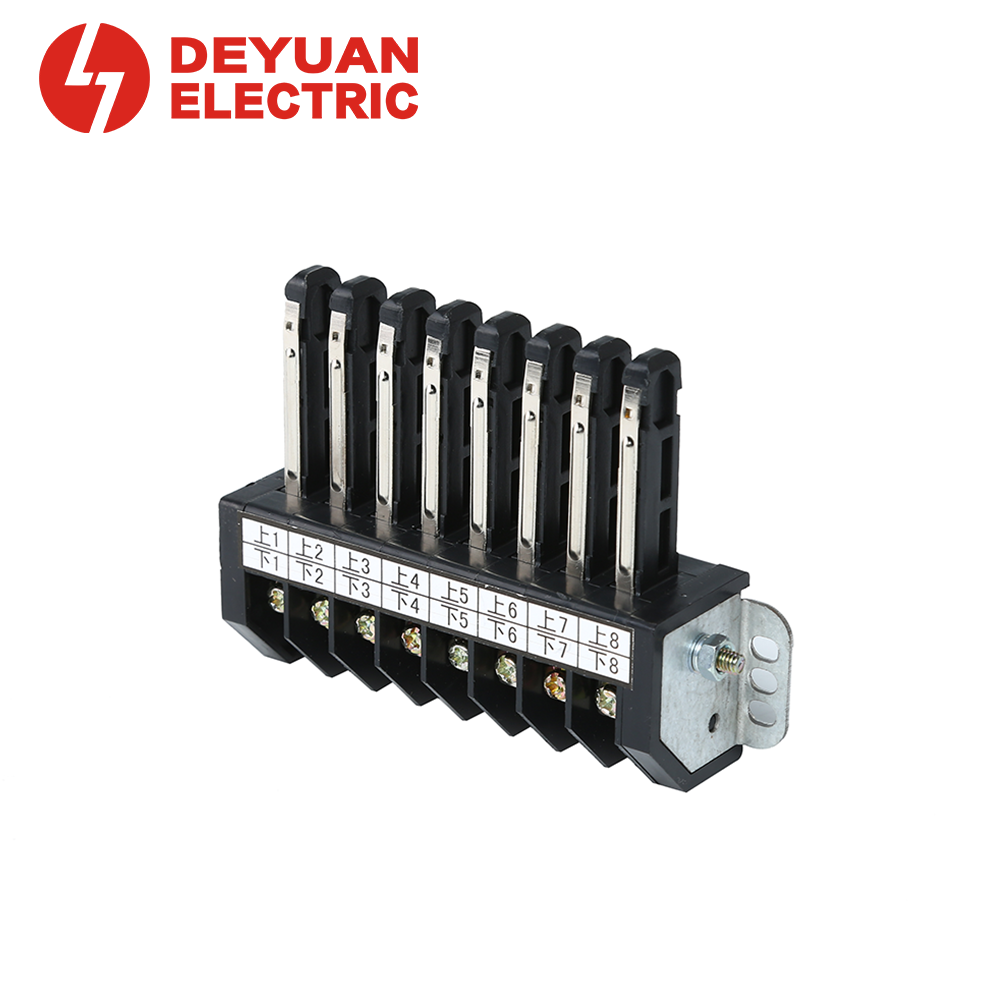

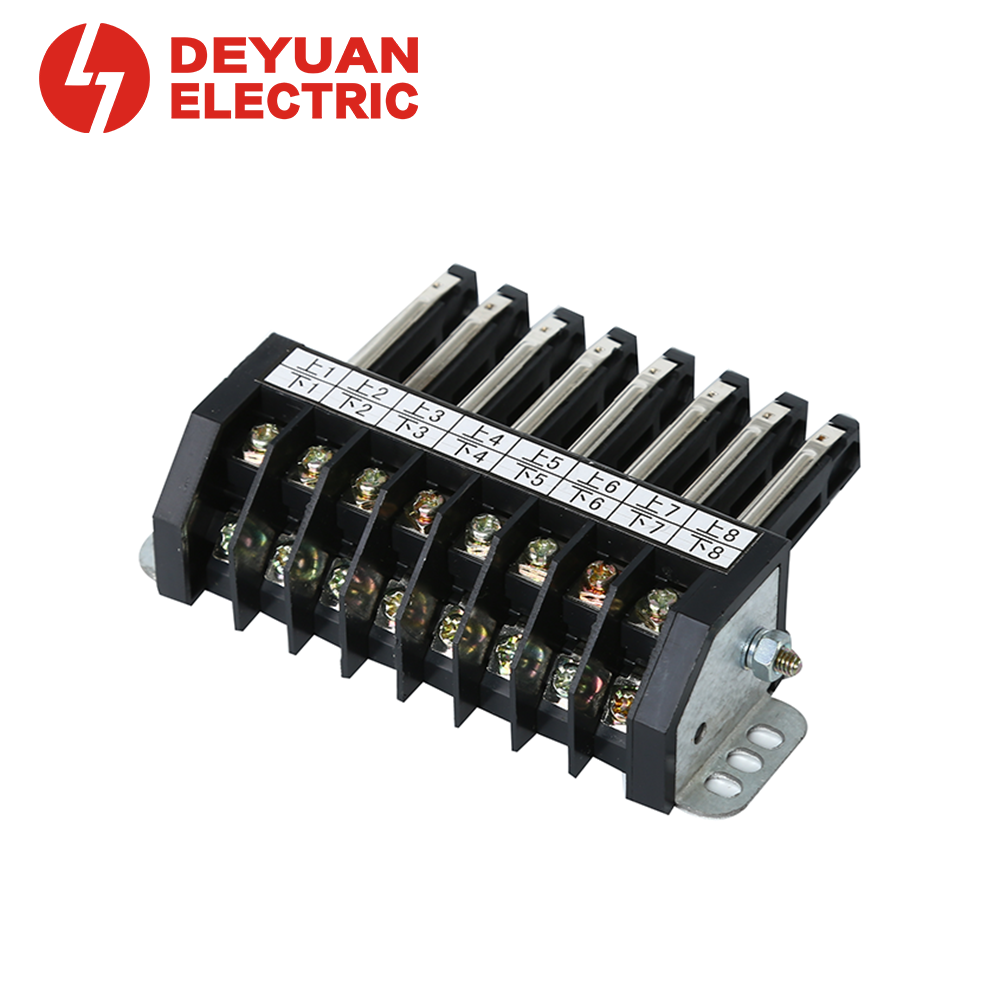

DJCF7 Series Secondary Circuit Connector
Reliable control circuit connection for drawout switchgear drawers
The DJCF7 series Circuit Connector (also known as control circuit plugs and sockets) are designed for low voltage drawout switchgear, providing reliable transmission of control, metering, and protection signals between the drawer unit and the enclosure.
Contact Us
Product Details
- Reliable contact design for repeated plug‑in/out cycles (≥10,000 operations)
- Suitable for AC and DC control circuits
- Standardized mounting dimensions for easy retrofit or new panel design
- Robust insulating housing, flame‑retardant V0 material
- Silver plated contacts available for low contact resistance
Pairing Information
The DJCF7 series moving plug must be used with the corresponding DJCF7 series fixed socket as a matched pair.
Both are required for proper secondary circuit connection.
| Parameter | Value |
| Rated current | 10A |
| Rated voltage | AC 220V / 380V, DC 110V |
| Contact Numbers | Up to 12 pairs (24 poles) |
| Insulation voltage | 500V |
| Model No. | Contacts (pairs/poles) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) |
| DJCF-5/10 | 5 pairs / 10 poles | 60 | 70 | 69.5 | 83 |
| DJCF-6/12 | 6 pairs / 12 poles | 70 | 80 | 80 | 93.5 |
| DJCF-8/16 | 8 pairs / 16 poles | 90 | 100 | 100 | 113.5 |
| DJCF-10/20 | 10 pairs / 20 poles | 112 | 120 | 120 | 134 |
| DJCF-11/22 | 11 pairs / 22 poles | 122 | 130 | 130 | 144.5 |
| DJCF-12/24 | 12 pairs / 24 poles | 132 | 140 | 140 | 154.5 |
