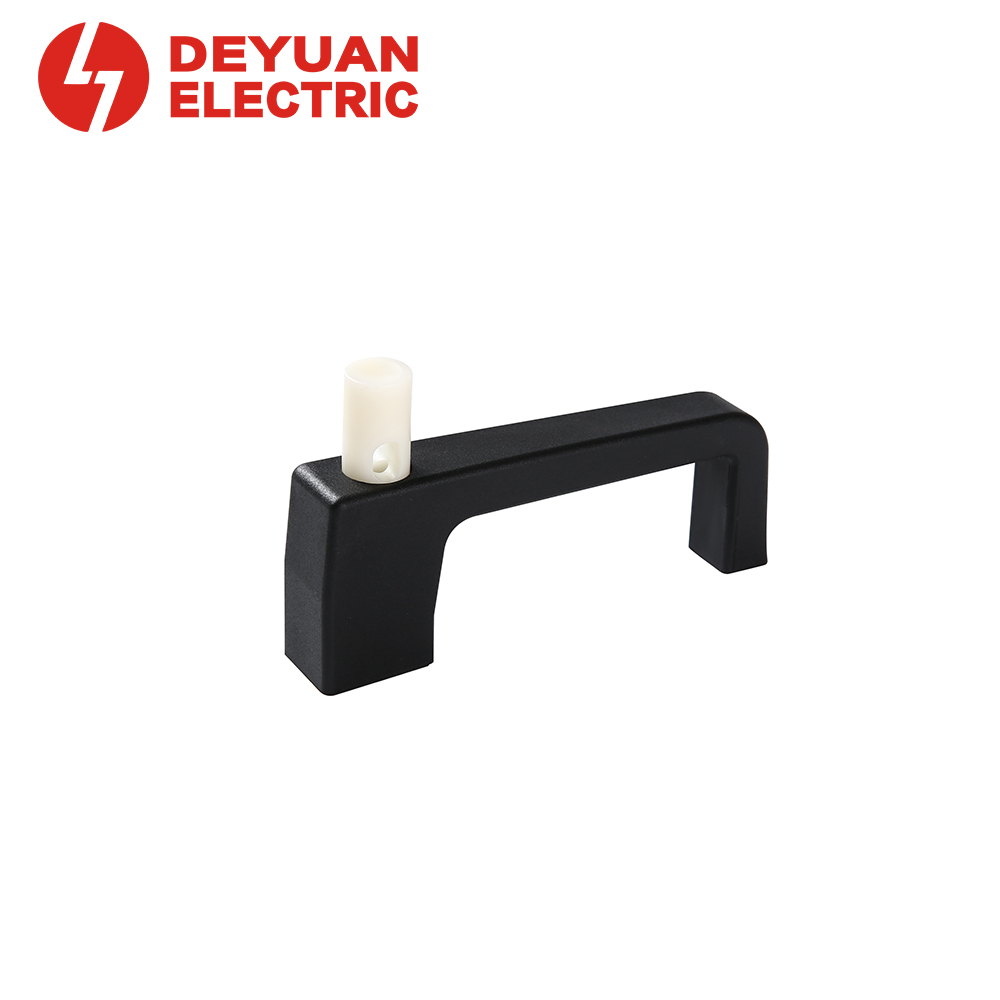

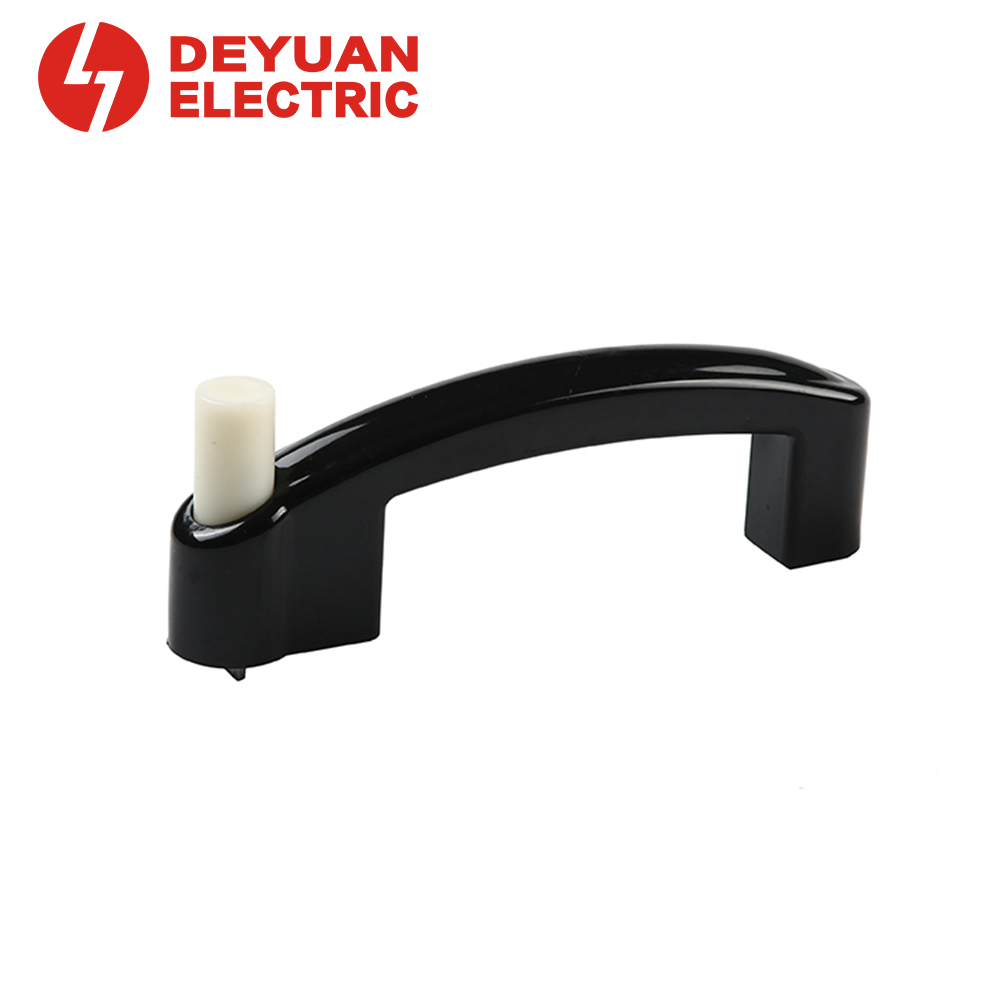

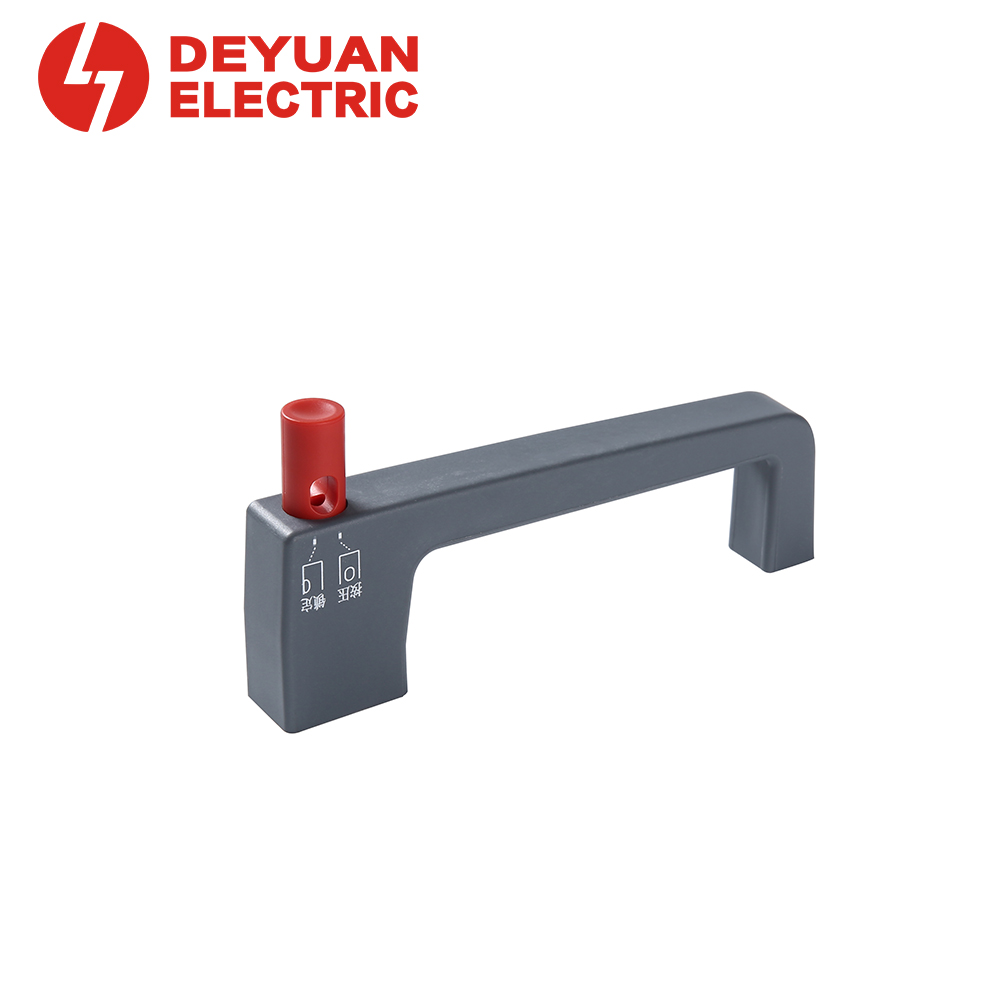

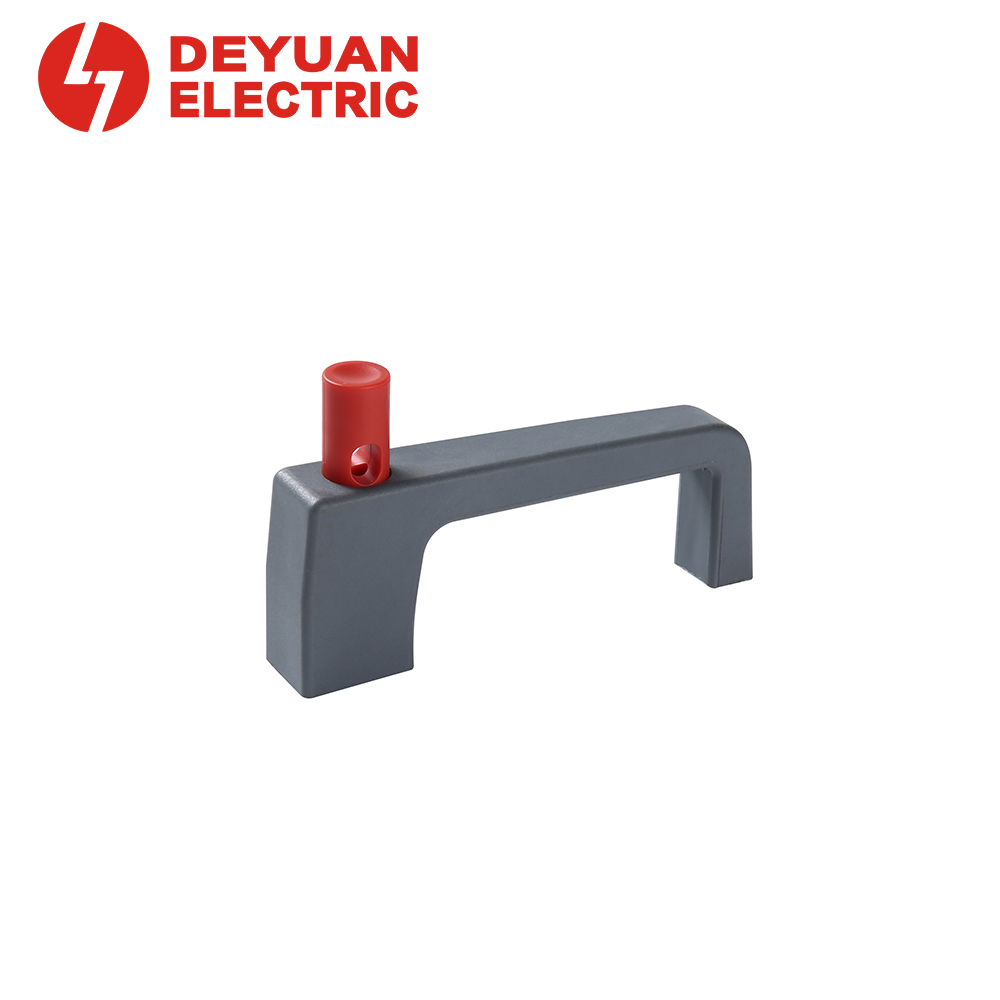

DLJ Switchgear Drawer Handle with Button
For MCC drawout drawers – with lock release button
These drawer handles incorporate a push‑button for unlocking the drawer mechanism. They are designed for use with hand‑pull operating mechanisms on low voltage drawout switchgear. Available in various sizes for different drawer heights (8E/4, 8E/2, 8E, etc.) and left/right hand configurations.
Contact Us
Product Details
- Integrated push‑button – Releases drawer lock for insertion/withdrawal
- Ergonomic design – Comfortable grip for frequent operation
- Multiple mounting screw options – ST4.2 or ST4.8 self‑tapping screws
- Left and right hand versions – Available for both sides of the drawer
- Compatible with standard operating mechanisms – DLC5, DLJ1, DLS5, DLS8, DJG‑7, DLS3 series
| Series / Model | Description | Mounting Screw | Overall Length (mm) | Width / Height (mm) | Remark |
| DLC5.1122 | 8E/4 handle with button | ST4.2 self‑tapping | 97 | 14.8 | For 8E/4 drawers |
| DLC5.2222 | 8E/2 handle with button | ST4.8 self‑tapping | 115 | 14.8 | For 8E/2 drawers |
| DLC5.3200 | Drawer right handle | ST4.8 self‑tapping | 115 | 14.8 | Right side |
| DLJ1.17 | 8E/4 handle assembly | ST4.2 self‑tapping | 97 | 13 | Complete assembly |
| DLJ1.18 | 8E/2 handle assembly | ST4.2 self‑tapping | 110 | 13 | Complete assembly |
| DLJ1.18002 | Right handle | ST4.2 self‑tapping | 110 | 13 | Right side |
| DLS5 series | Handle with button (with LED option) | ST4.8 self‑tapping | 115 | 16 | For DLS5 mechanism |
| DLS8 series | Handle with button | ST4.8 self‑tapping | 110 | 20 | For DLS8 mechanism |
| DJG‑7 series | Left puller parts | ST4.8 self‑tapping | 110 | 20 | Left side for DJG‑7 |
| DJG‑7.70004 | Right handle | ST4.8 self‑tapping | 110 | 20 | Right side for DJG‑7 |
| DLS3.10002 | Right handle | ST4.8 self‑tapping | 115 | 20 | For DLS3 mechanism |
| DLS8.10003 | Right handle | ST4.8 self‑tapping | 110 | 20 | For DLS8 mechanism |
