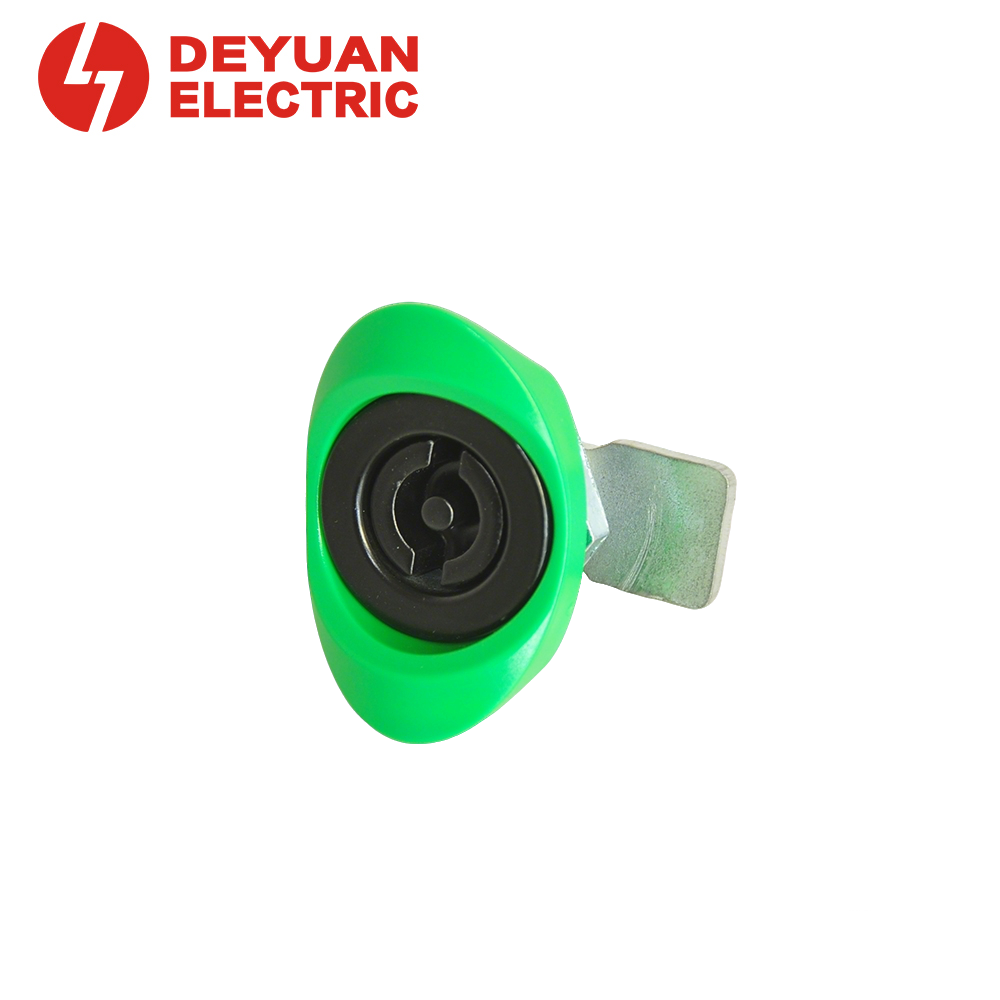

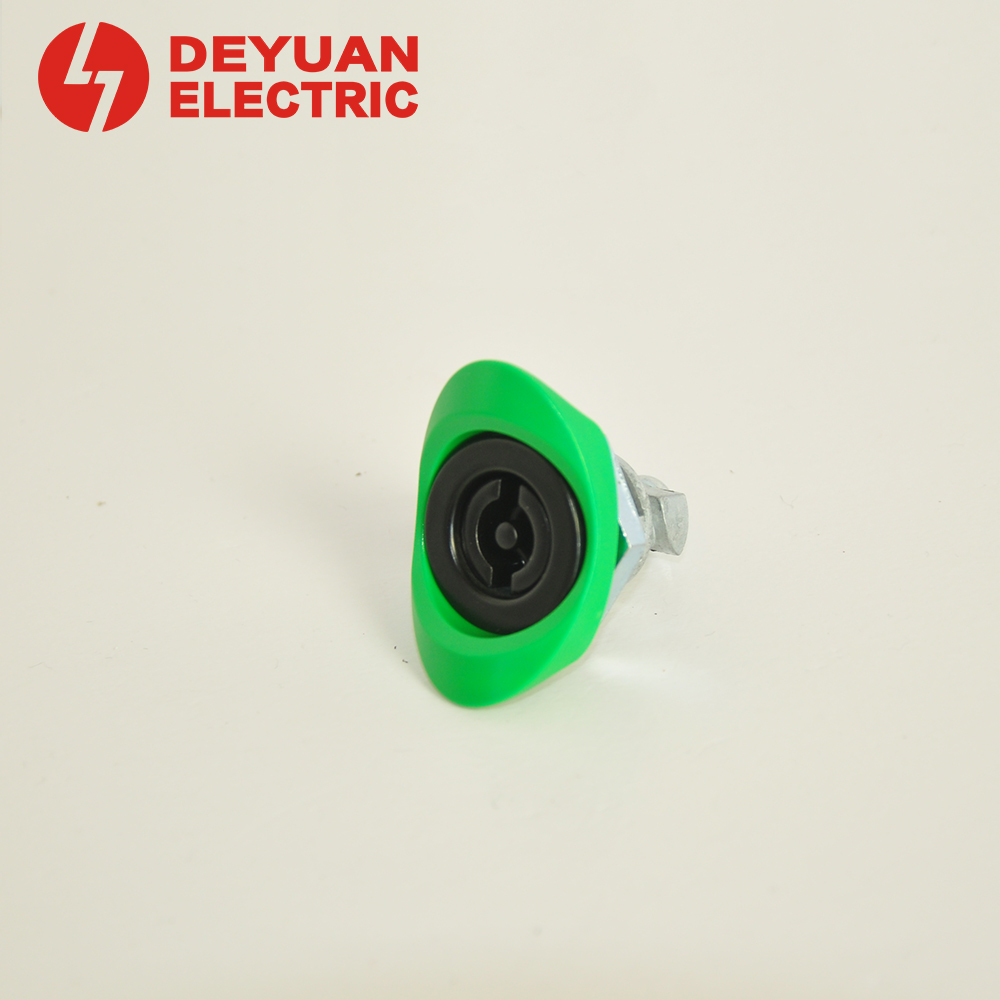

DMS3.36 Electrical Enclosure Lock
Door lock with handle – for LV switchgear and electrical enclosures
The DMS3.36 is a door lock with integrated handle designed for low voltage switchgear enclosures, distribution cabinets, and electrical panels. It provides secure locking combined with an ergonomic pull handle for easy door operation. The lock is supplied with a universal mounting bracket and optional anti‑sagging bracket for heavy doors.
Manufactured from zinc‑alloy or steel with a corrosion‑resistant powder coating finish, this lock offers reliable mechanical locking and long service life in indoor electrical environments.
Contact Us
Product Details
| Property | Value |
| Lock body material | Cold rolled steel |
| Handle material | Zinc alloy / Engineering plastic |
| Surface treatment | Powder coating (black / grey) |
| Bracket material | Cold rolled steel |
| Color | Black /Green |
Product Range & Dimensions
| Model / Part | Description | Key Dimensions (mm) |
| DMS3.36 | Door lock with handle | Overall: 25 × 50 (reference); Mounting: Φ16 |
| DMS3.32001 | Lock bracket | – |
| DMS3.36004 | Door lock bracket (mounting bracket) | 50 × 50; Slotted holes: 4‑7×10 |
| DMS3.36005 | Anti‑sagging bracket (for heavy doors) | 50 × 50; Φ6.2 mounting holes |
| DMS3.36‑1 | Alternative version (details on request) | – |
| Detailed dimensional drawings are available upon request. Contact technical department for exact measurements. | ||
- Lock + handle integrated – Combines door pull and locking in one unit
- Universal cutout – Standard 50×50 mm mounting pattern with 4‑7×10 slotted holes (adjustable)
- Key operated – Cylinder lock (DMS3.32001) with 2 keys included
- Anti‑sagging option – DMS3.36005 bracket prevents door droop on heavy doors
- Corrosion resistant – Powder coated finish for indoor switchgear environments
- Easy installation – Mounts with M5 or M6 screws through slotted holes for fine adjustment
| Model No. | Description | Use |
| DMS3.32001 | Lock bracket | For installing lock on doors without pre‑formed cutouts |
| DMS3.36004 | Lock bracket | For installing lock on doors without pre‑formed cutouts |
| DMS3.36005 | Anti‑sagging bracket | Supports heavy door to prevent sagging over time |
