DJG‑7 Series Hand‑rotary Drawer Operating Mechanism
For 8E or Above 8E drawout units

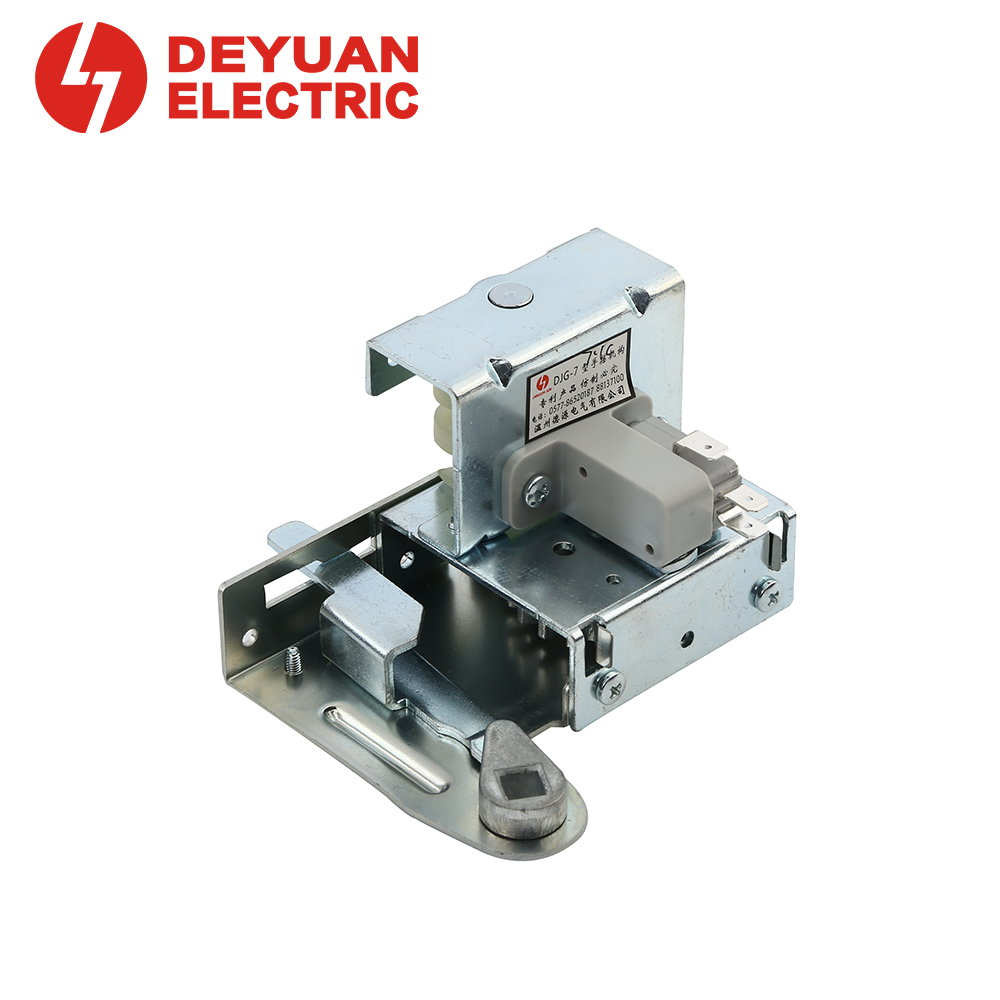

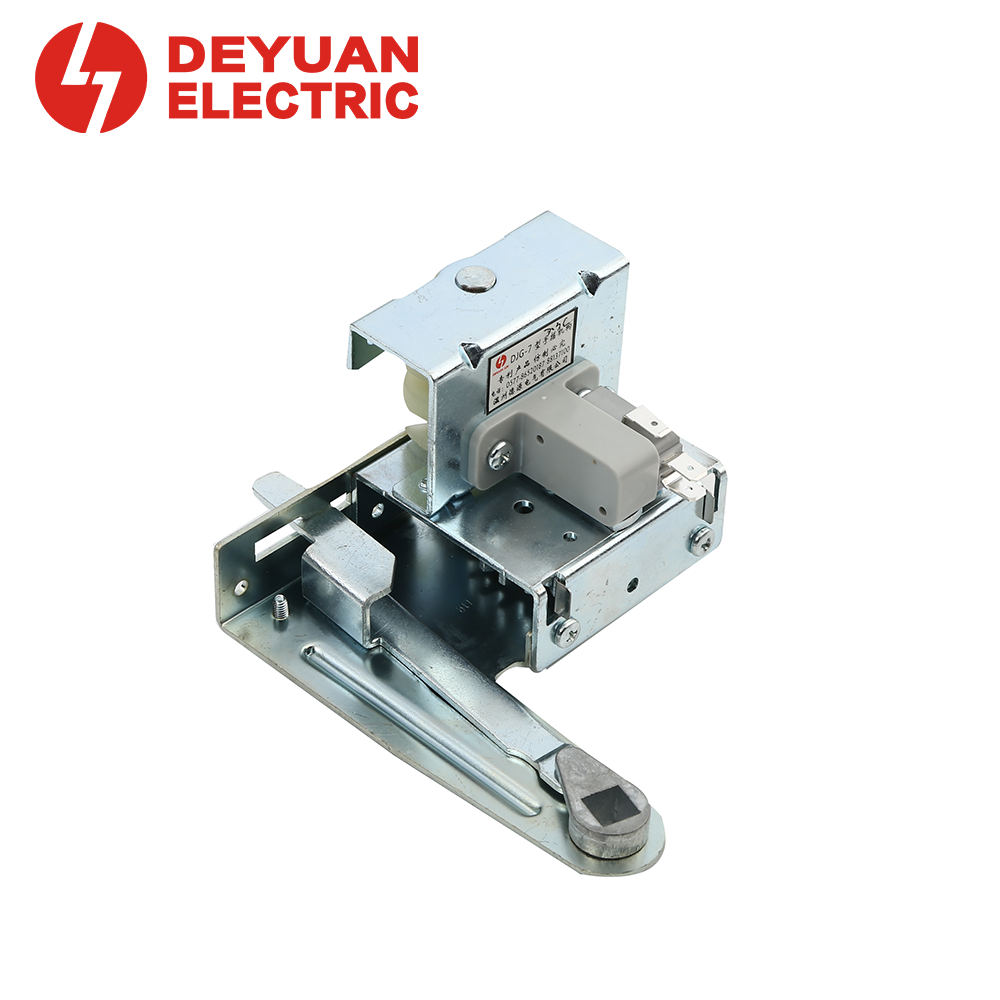

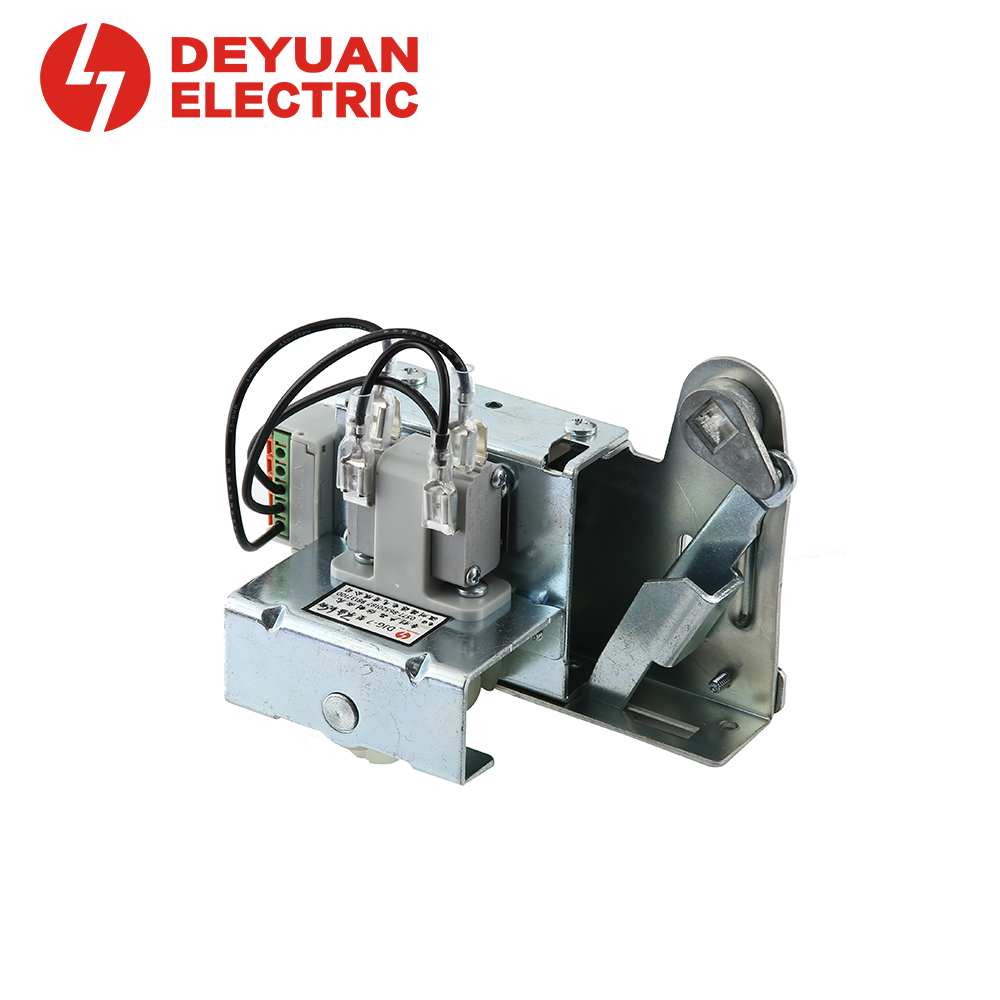

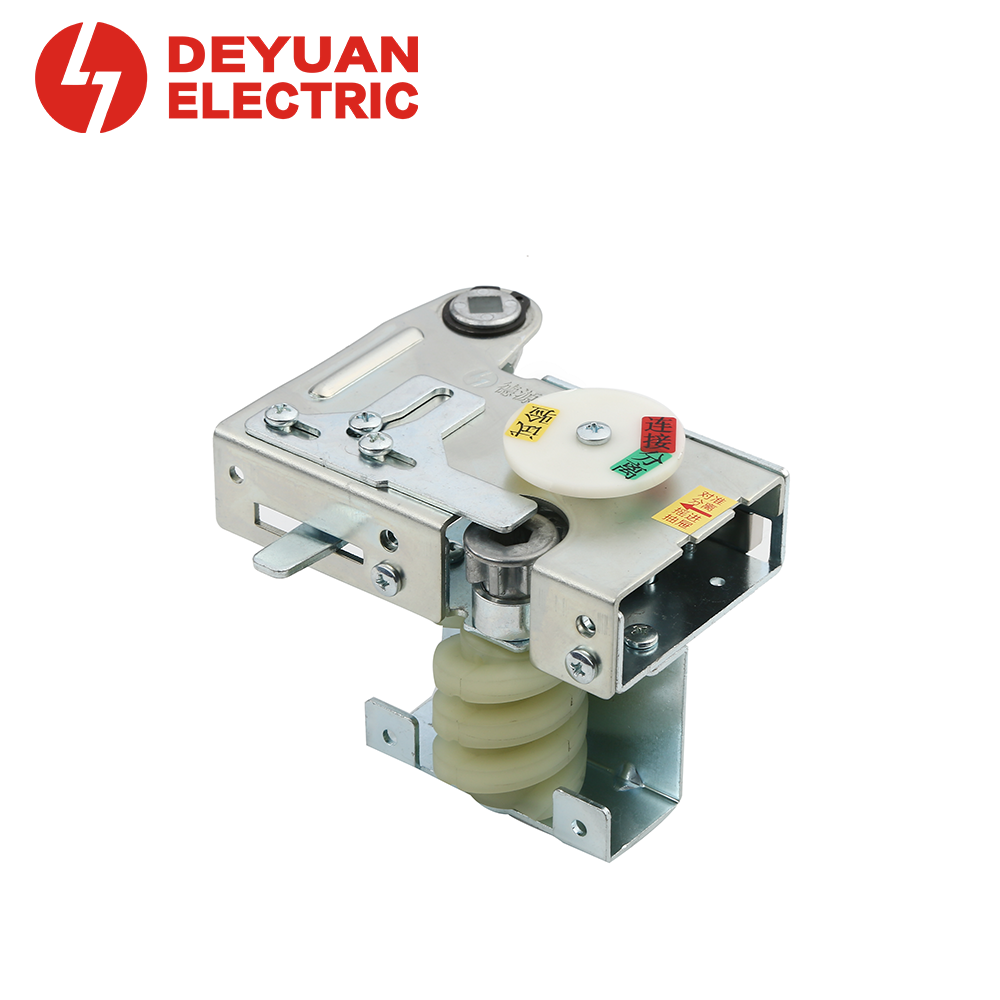

The DJG‑7 series is a T‑shaped hand‑cranked (racking) interlock mechanism designed for low voltage MCC drawout drawers of 8E and above. It provides reliable three‑position operation (disconnect, test, connect) with mechanical interlocking and optional auxiliary switches. The mechanism is compatible with 8×8 mm square drive shafts.
Contact Us
Product Details
- Hand‑cranked operation – Smooth racking in/out via square shaft
- Three‑position control – Disconnect, test, connect
- Mechanical interlock – Prevents incorrect operation
- Optional auxiliary switch – 1 set of electrical switch available at test position
- Electric operation ready – Compatible with electric operation modules (order separately)
- Wide drawer height compatibility – Suitable for 150mm, 200mm, and higher drawers
- Standard mounting holes – Same as DJG‑7.C series (except door panel cutout)
- Travel distance from the test position to the working position is 24mm
| Model No. | Auxiliary Switch at Test Position | Drawer Height | Square Shaft | Remarks |
| DJG‑7.1T | 1 set | 200mm | 8*8 | For hand‑rotary mechanism drawer |
| DJG‑7.2T | 1 set | 150mm | For hand‑rotary mechanism drawer | |
| DJG‑7.3T | 1 set | ≥200mm | For hand‑rotary mechanism drawer | |
| DJG‑7.4T | 1 set | 150mm | For hand‑rotary mechanism drawer | |
| DJG‑7.1T-1 | 1 set | 200mm | 10*10 | For hand‑rotary mechanism drawer |
| DJG‑7.3T-1 | 1 set | ≥200mm | For hand‑rotary mechanism drawer | |
| DJG‑7.5T-1 | 1 set | ≥200mm | For hand‑rotary mechanism drawer |
| Model No | Height | Specifications | Square Shaft |

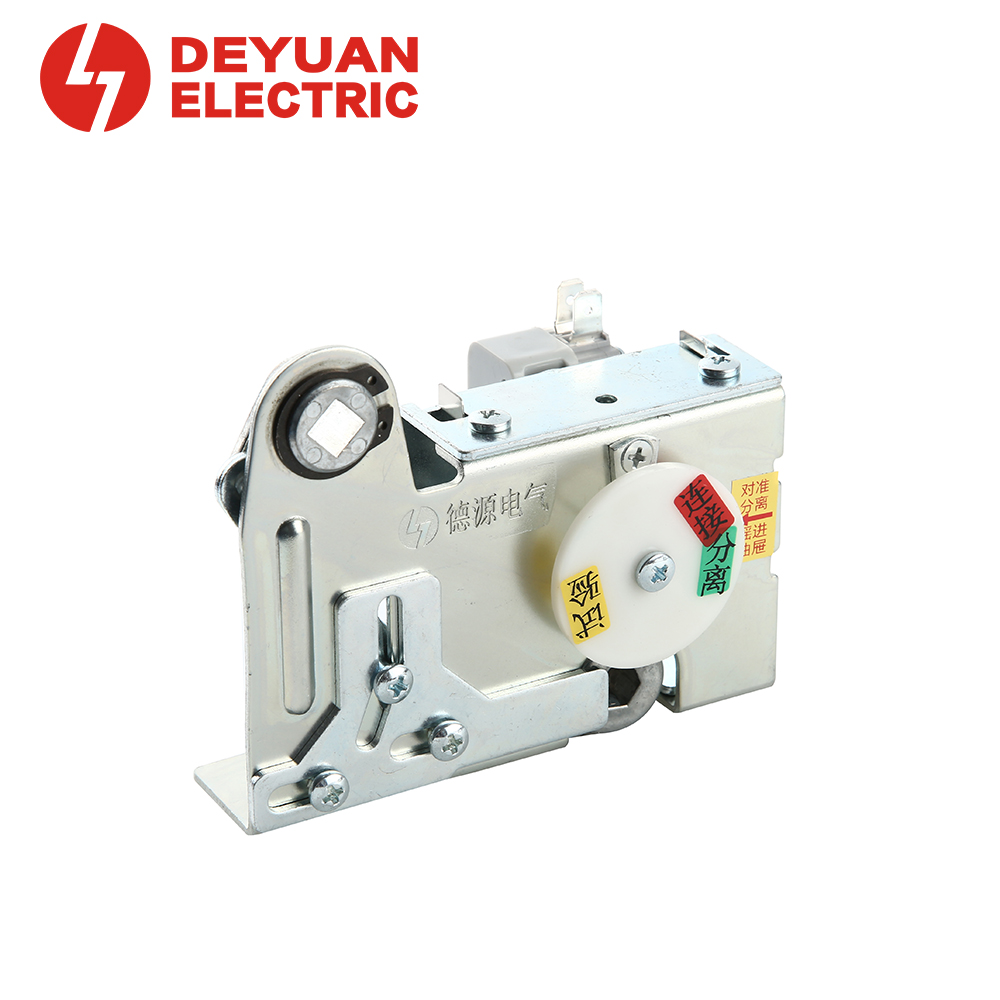

| DJG7.1C | 82 | Regular | 8X8 |
| DJG7.1C-1 | 10X10 | ||

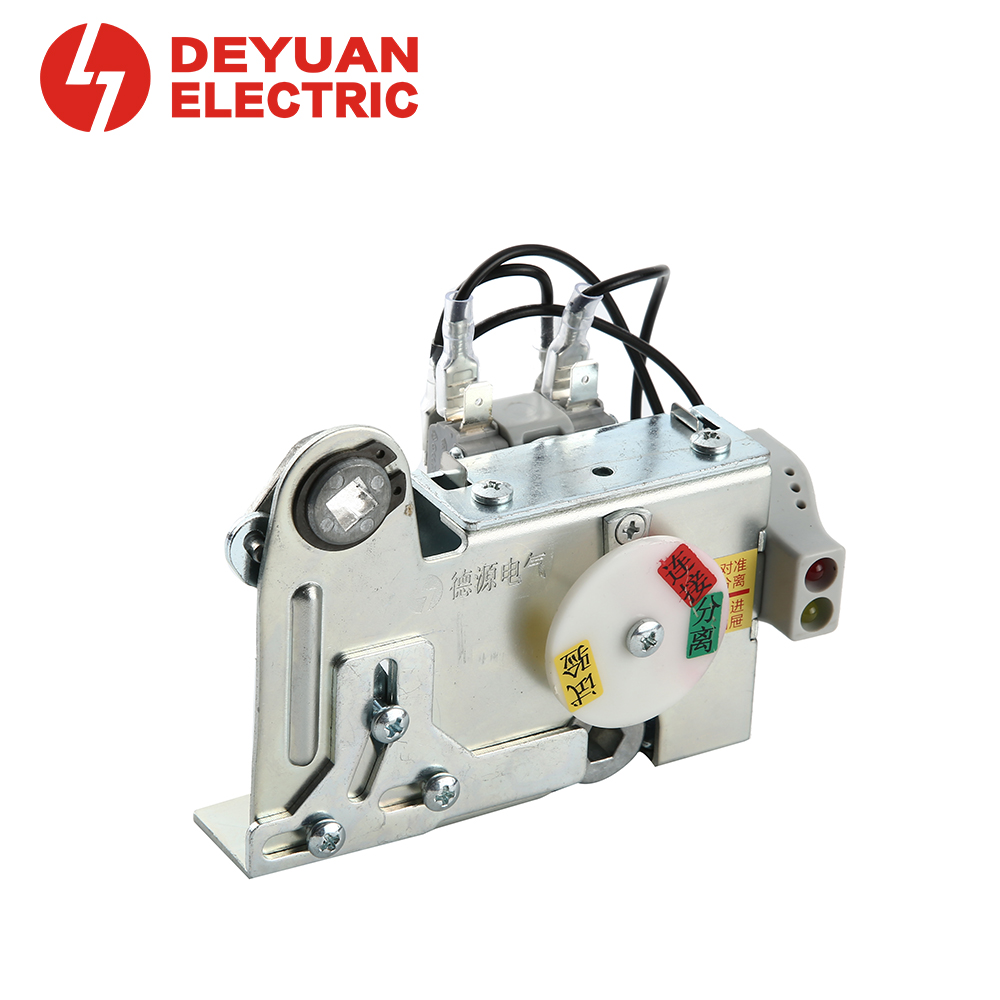

| DJG7.1X | With Light | 8X8 | |
| DJG7.1X-1 | 10X10 | ||
| Model No | Height | Specifications | Square Shaft |
| DJG7.2C | 69 | Regular | 8X8 |
| DJG7.2C-1 | 10X10 | ||
| DJG7.2X | With Light | 8X8 | |
| DJG7.2X-1 | 10X10 | ||
| Model No | Height | Specifications | Square Shaft |
| DJG7.3C | 119 | Regular | 8X8 |
| DJG7.3C-1 | 10X10 | ||
| DJG7.3X | With Light | 8X8 | |
| DJG7.3X-1 | 10X10 |
 |  |
 |  |
 |  |
