DRC7 Secondary Plug
We can support your OEM/ODM needs and provide one-stop customized solutions.
DRC7 Secondary Plug
Reliable control circuit connection with test position function and guide pin.

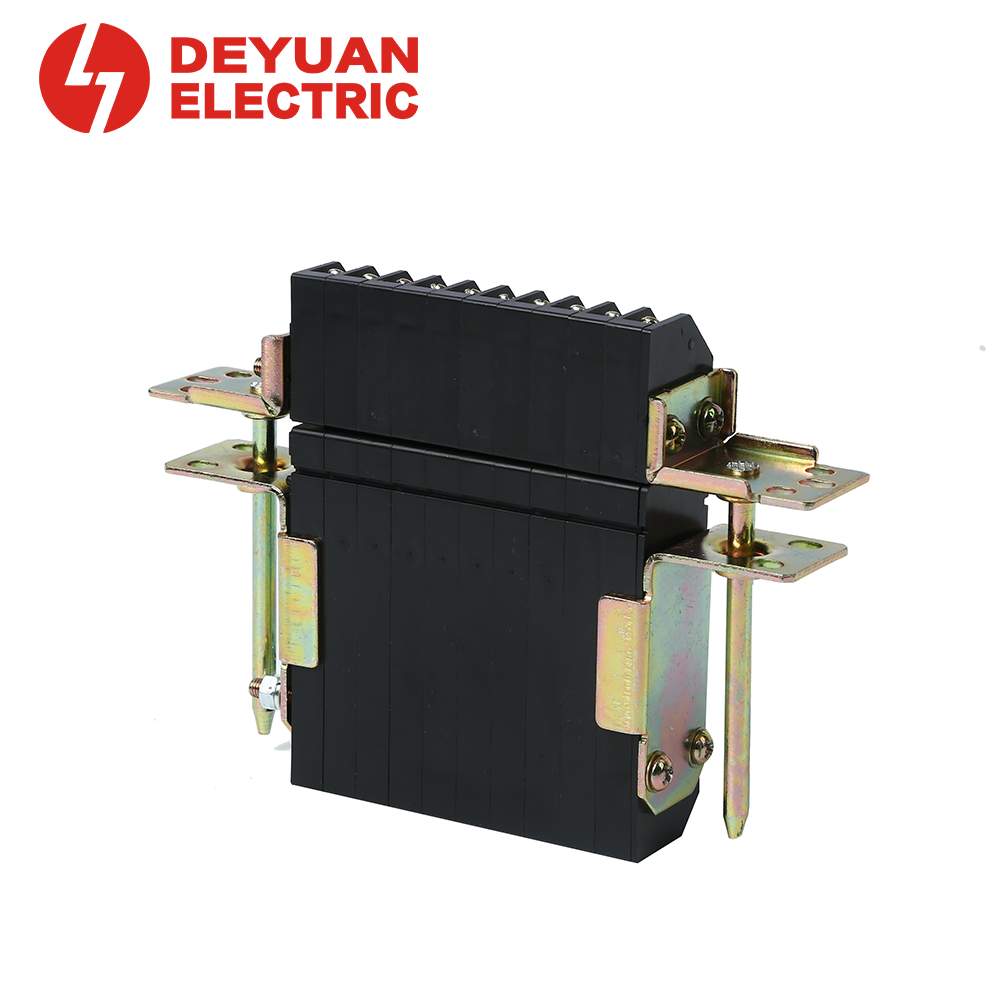

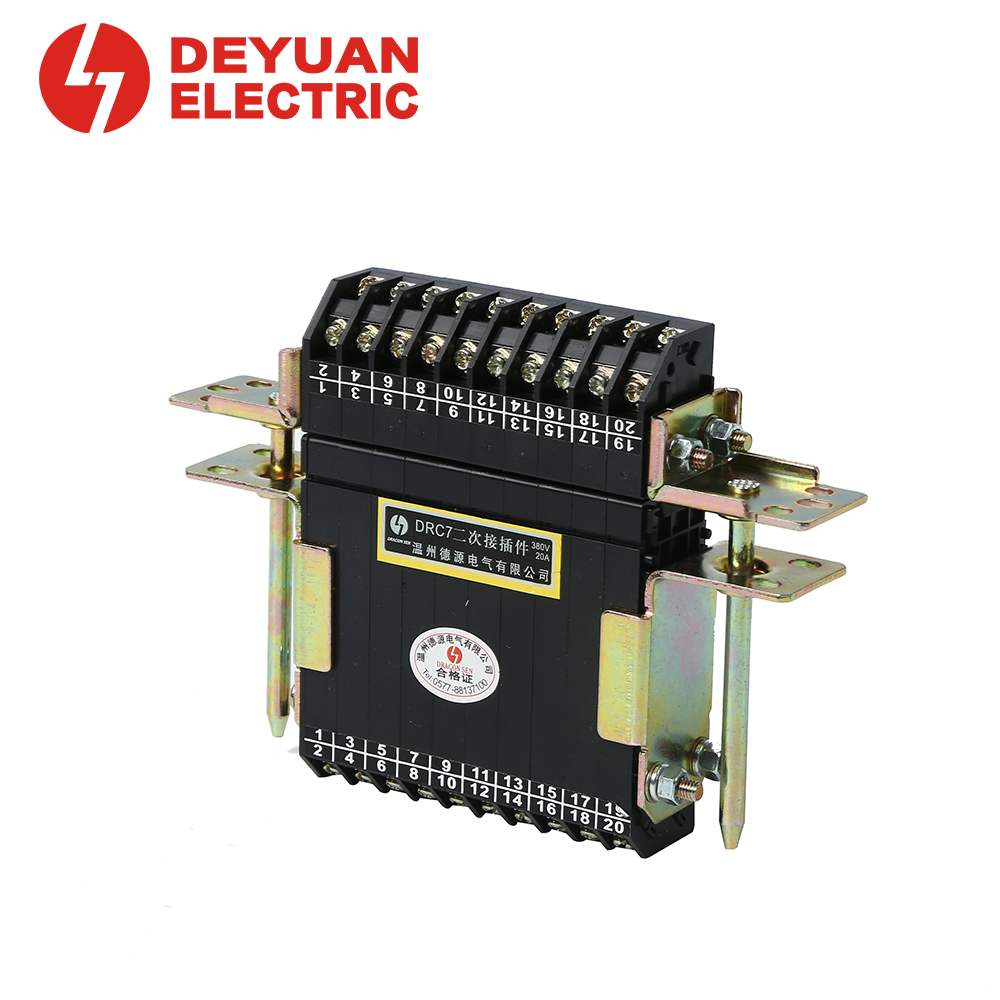

The DRC7 series Secondary plug are designed for low voltage drawout switchgear, providing stable transmission of control, metering, and protection signals between the drawer unit and the enclosure. They feature a guide pin for accurate mating and maintain secondary circuit connectivity when the drawer is in the test position.
Contact Us
Product Details
- Test position connectivity – Secondary circuits remain connected when the drawer is in the test position, allowing safe testing and commissioning.
- Guide pin design – Ensures accurate alignment during plug‑in/out, reducing the risk of contact damage.
- Rated current – 10A
- Rated voltage – AC 220V/380V, DC 110V
- Wide contact range – From 5 to 16 pairs (10 to 32 poles)
| Parameter | Value |
| Rated current | 10A |
| Rated voltage | AC 220V / 380V, DC 110V |
| Test position | Yes |
Available Models
| Model No. | Contact Configuration |
| DRC7-5/10 | 5 pairs / 10 poles |
| DRC7-6/12 | 6 pairs / 12 poles |
| DRC7-8/16 | 8 pairs / 16 poles |
| DRC7-10/20 | 10 pairs / 20 poles |
| DRC7-12/24 | 12 pairs / 24 poles |
| DRC7-15/30 | 15 pairs / 30 poles |
| DRC7-16/32 | 16 pairs / 32 poles |
| Model No. | C (mm) | D (mm) | E (mm) | F (mm) |
| DRC7-5/10 | 110.3 | 55.4 | 82.1 | 130.1 |
| DRC7-6/12 | 119.5 | 64.6 | 91.3 | 139.3 |
| DRC7-8/16 | 137.7 | 83 | 109.7 | 157.7 |
| DRC7-10/20 | 156.1 | 101.4 | 128.1 | 176.1 |
| DRC7-12/24 | 174.5 | 119.8 | 146.5 | 194.5 |
| DRC7-15/30 | 202.1 | 147.4 | 174.1 | 222.1 |
| DRC7-16/32 | 211.3 | 156.6 | 183.3 | 231.3 |
