DRC9 32-Pole Secondary Connector

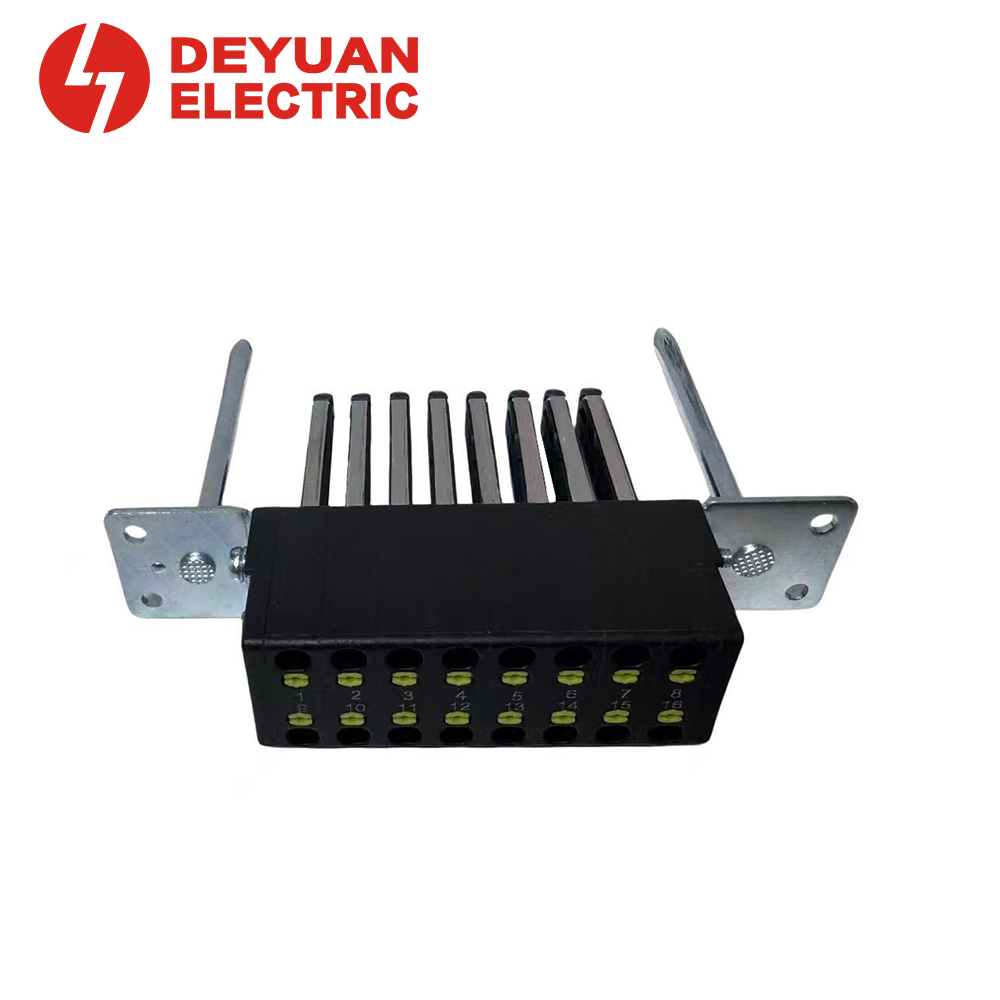

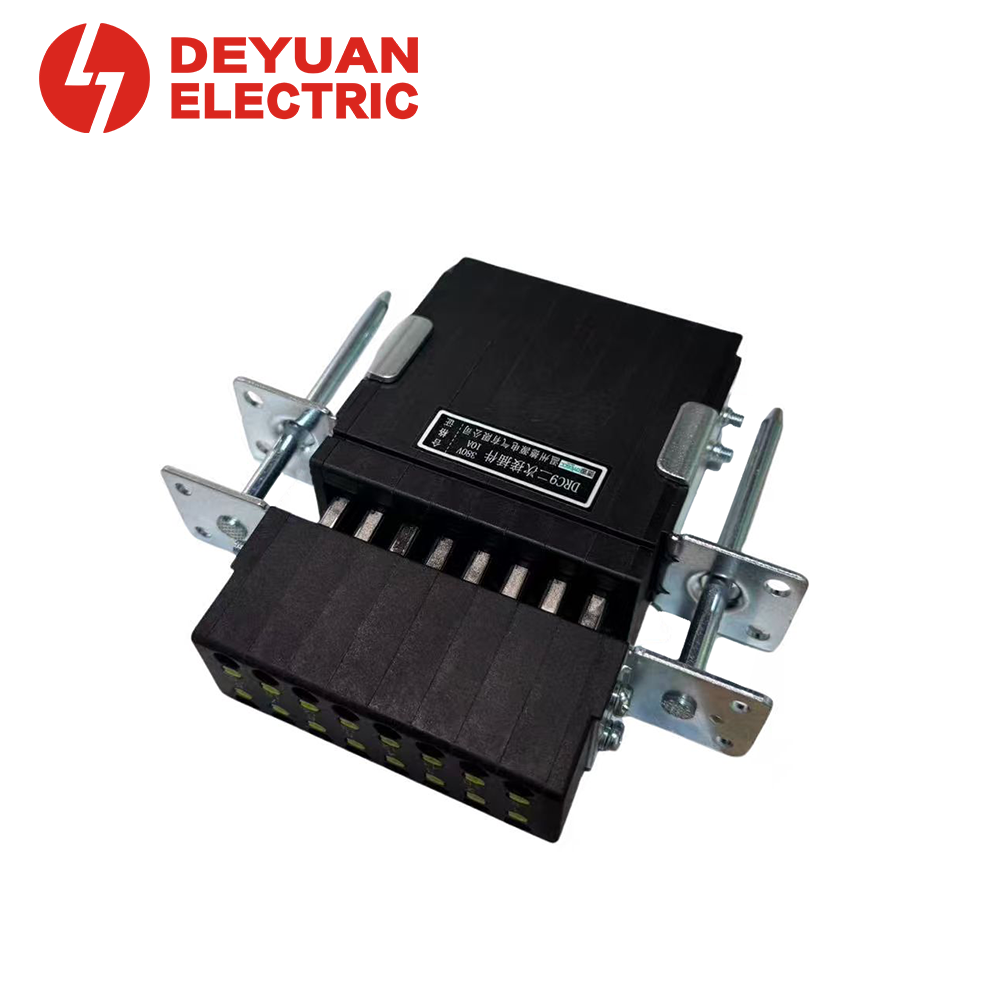

DRC9 Series 32-Pole Secondary Connector (Rear Wiring)
Direct plug‑in secondary connection for drawout switchgear – fast, reliable, and easy to maintain.
The DRC9 series 32-Pole Secondary Connector are designed for rear wiring applications in low voltage drawout switchgear, uses a direct plug‑in design that significantly speeds up wiring and improves production efficiency.
Contact Us
Product Details
| Feature | Benefit |
| Direct plug‑in wiring | No screw terminals – faster wiring, higher efficiency |
| 1mm mating clearance | Lowers precision requirements between drawer and enclosure; ensures smooth plug‑in/out |
| External mounting | The moving plug is fastened from the outside of the drawer – easy to disassemble, repair, or replace |
| M5 self‑tapping screw installation | Quick and convenient mounting |
| Test position connectivity | Secondary circuits remain connected when the drawer is in the test position |
| Optional test contacts | Add “S” suffix for models with built‑in test contacts (order as required) |
Key Features
- Fast wiring – eliminates screw‑terminal labor, ideal for high‑volume production
- Low mating tolerance requirement – 1mm clearance accommodates minor drawer/enclosure alignment variations
- Service‑friendly – moving plug can be removed from outside the drawer without disassembling the drawer
- Test position function – control circuits stay active during testing
- Robust housing – flame‑retardant V0 material
| Parameter | Value |
| Rated current | 10A |
| Rated voltage | AC 220V / 380V, DC 110V |
| Mating clearance | 1mm (plug to socket) |
| Mounting method | M5 self‑tapping screw |
| Wiring type | Direct plug‑in (no screw terminals) |
| Test position connectivity | Yes |
| Description | Model No. (Standard) |
| 5 pairs / 10 poles | DRC9-5/10 |
| 6 pairs / 12 poles | DRC9-6/12 |
| 8 pairs / 16 poles | DRC9-8/16 |
| 10 pairs / 20 poles | DRC9-10/20 |
| 12 pairs / 24 poles | DRC9-12/24 |
| 16 pairs / 32 poles | DRC9-16/32 |
