MNS Series Switch Handle
MNS Series Switch Handle
For drawout operating mechanisms – type B and type D, interchangeable

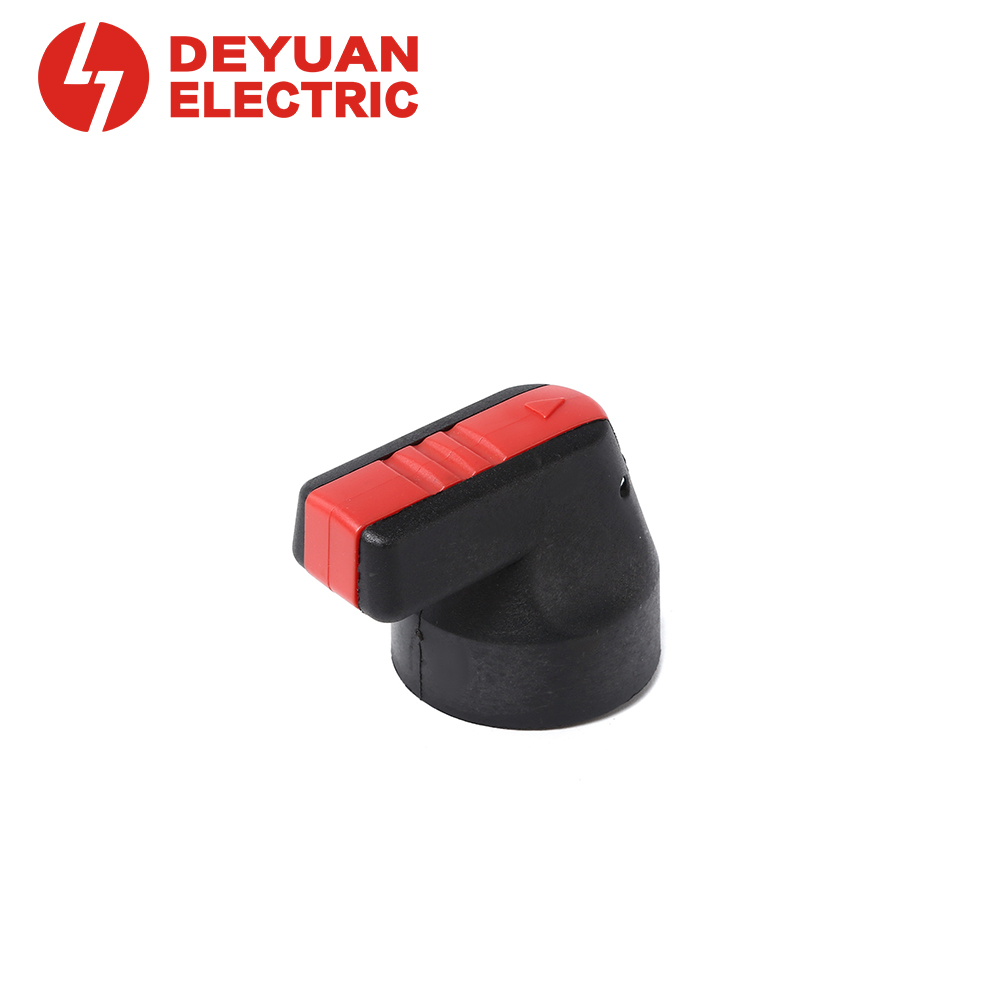

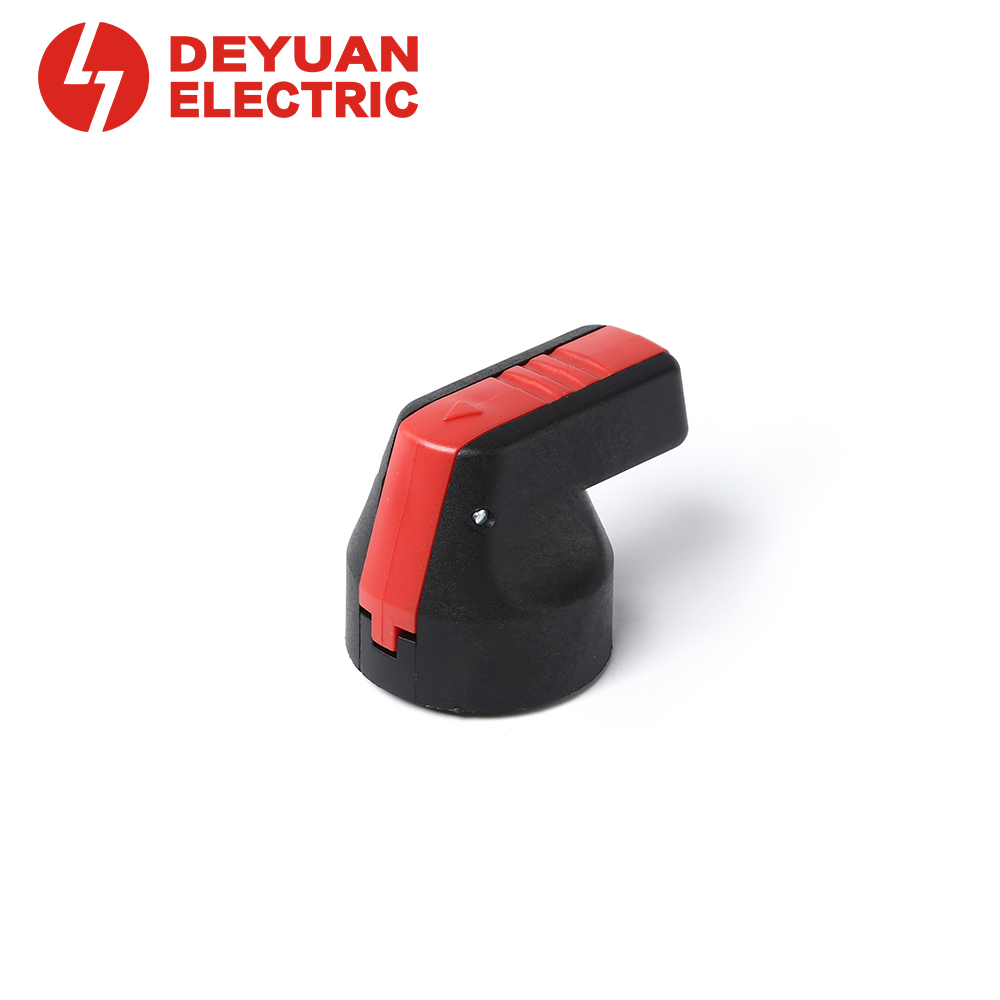

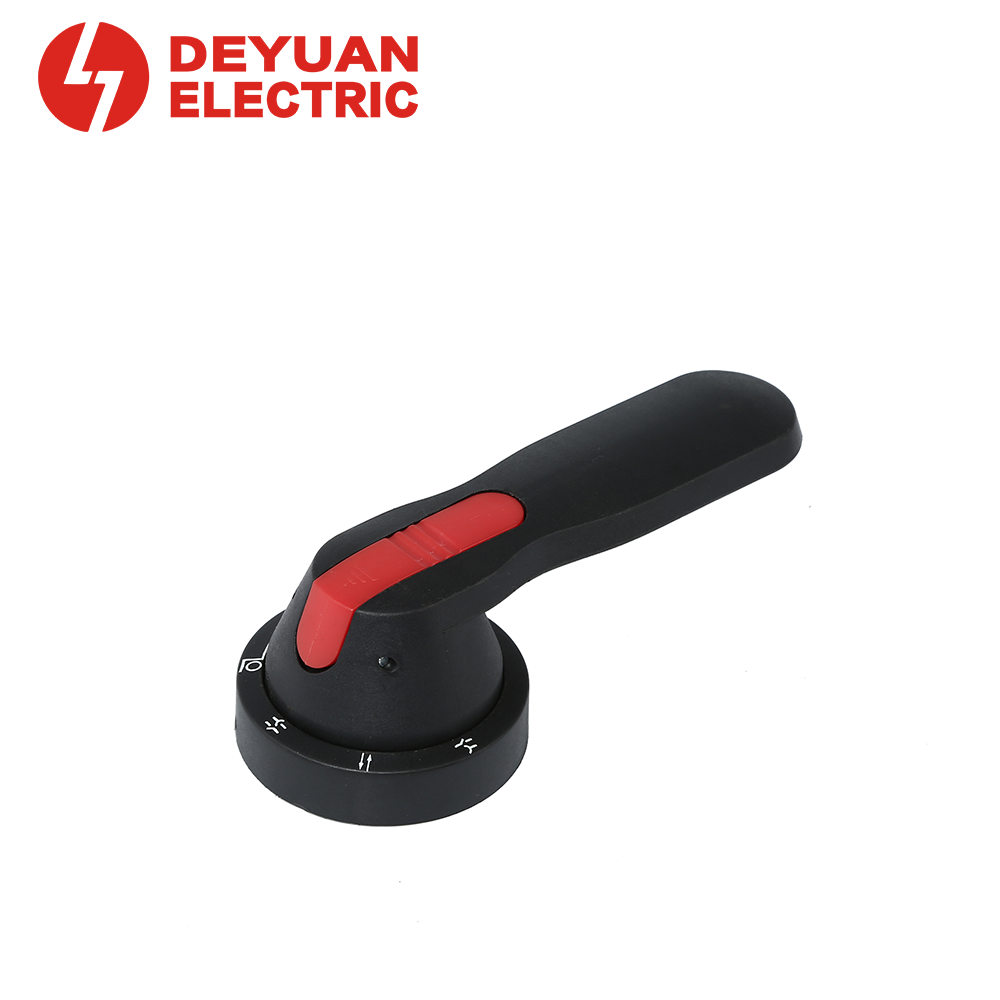

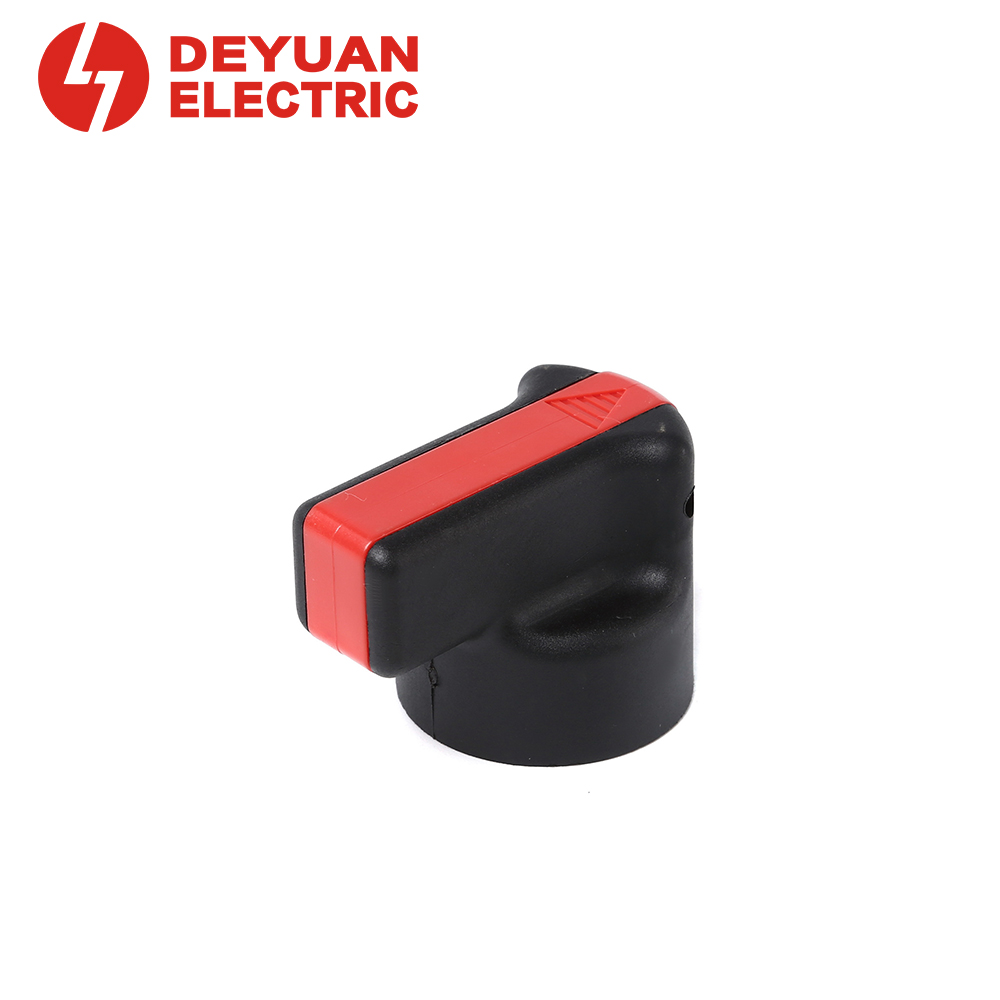

The MNS series switch handles are designed for use with drawout operating mechanisms in low voltage switchgear (MNS, GCS, etc.). They are available in Type B and Type D styles, which are interchangeable with each other. These handles are compatible with both large and small interlock systems and are offered in multiple shaft sizes (8×8 mm or 10×10 mm) and lengths to suit different drawer heights and mechanism requirements.
Contact Us
Product Details
- Interchangeable – Type B and Type D handles can be swapped without modification
- Two shaft sizes – 8×8 mm and 10×10 mm square drive
- Multiple lengths – 65 mm, 80 mm, 95 mm, 125 mm to fit various drawer front thicknesses
- Robust construction – Suitable for frequent operation and mechanical interlocking
- Standard mounting – Direct fit with MNS series operating mechanisms
Type B and Type D handles are mechanically interchangeable. When replacing or selecting a handle, ensure the shaft size (8×8 mm or 10×10 mm) matches the operating mechanism’s drive socket, and the length L is appropriate for the drawer front panel thickness.
