5DY.573.007.2 Distance 50mm 3 Poles Fixed Socket
We can support your OEM/ODM needs and provide one-stop customized solutions.

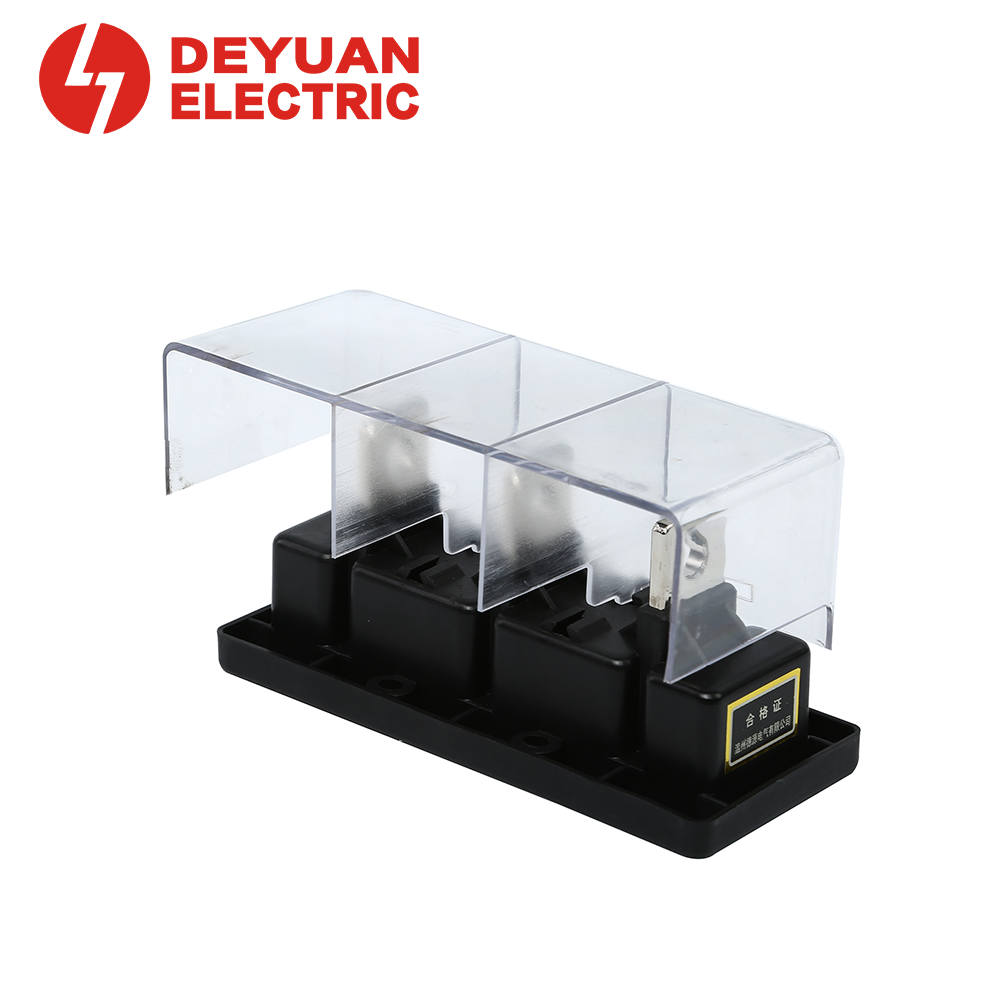

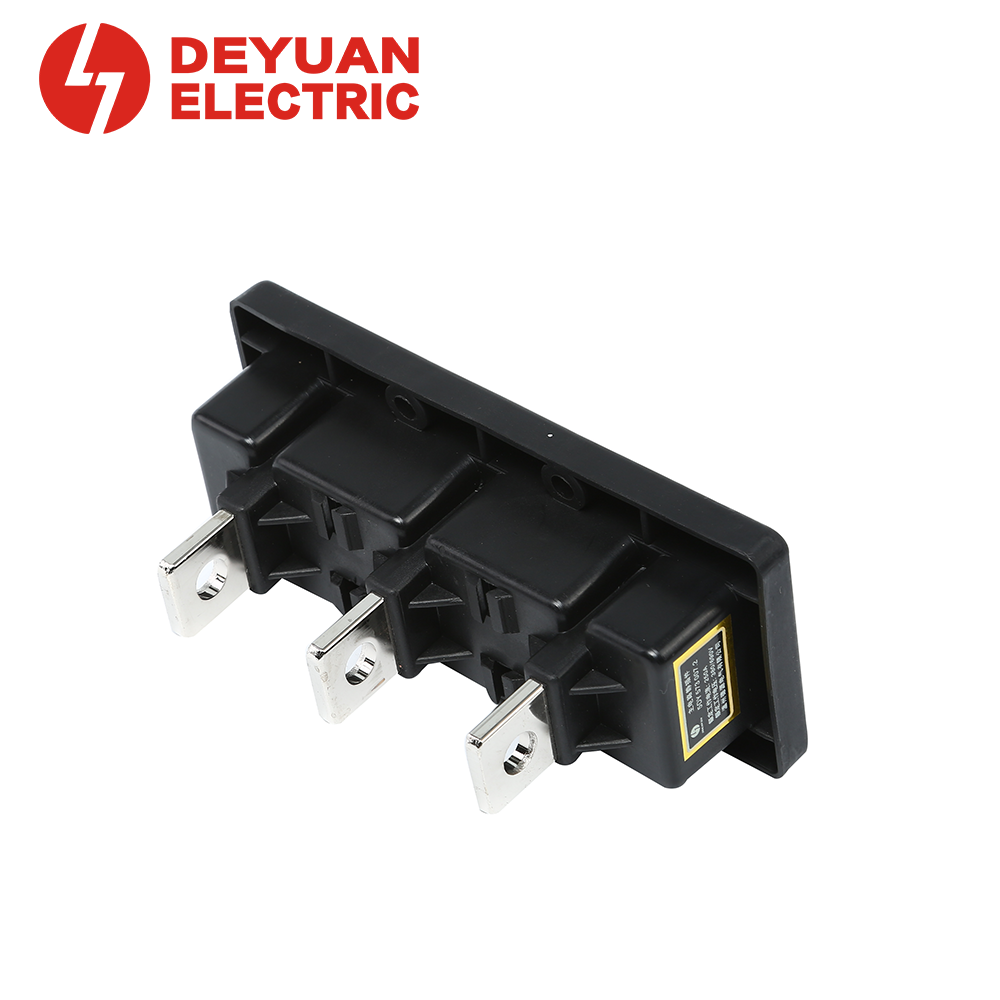

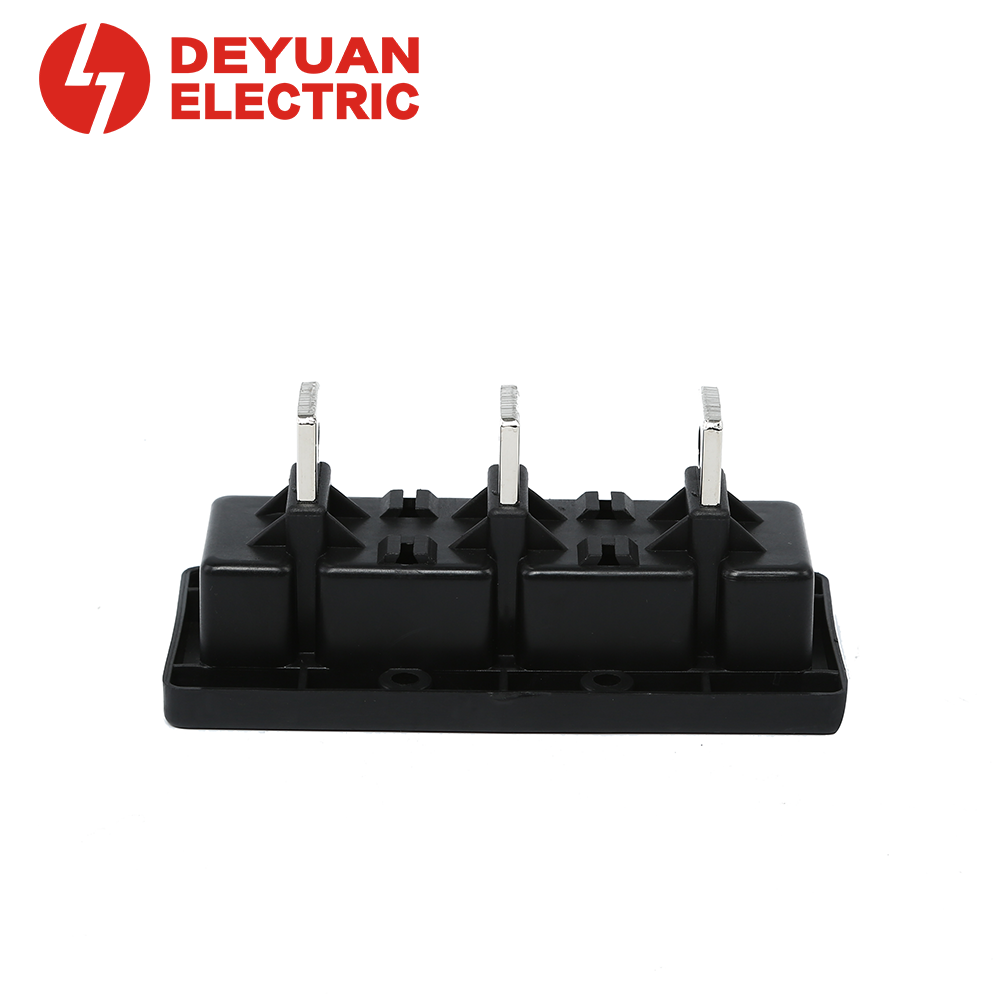

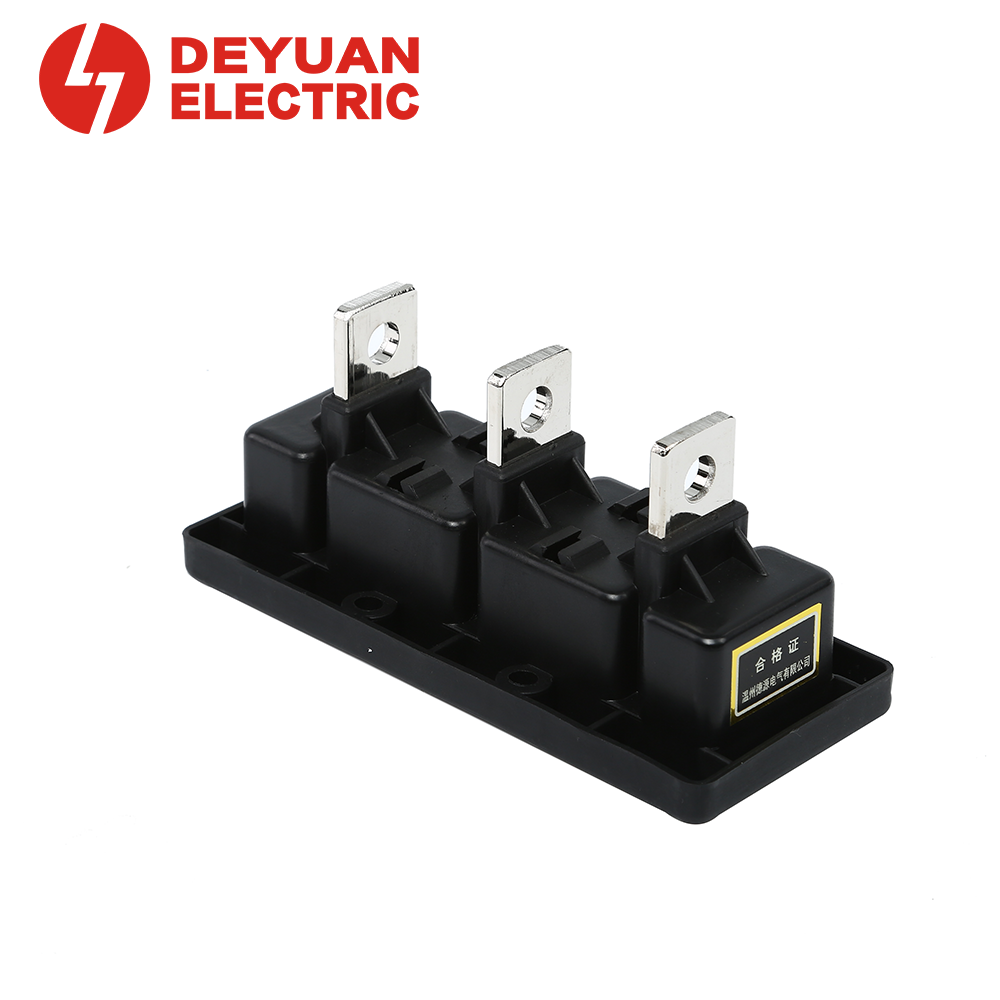

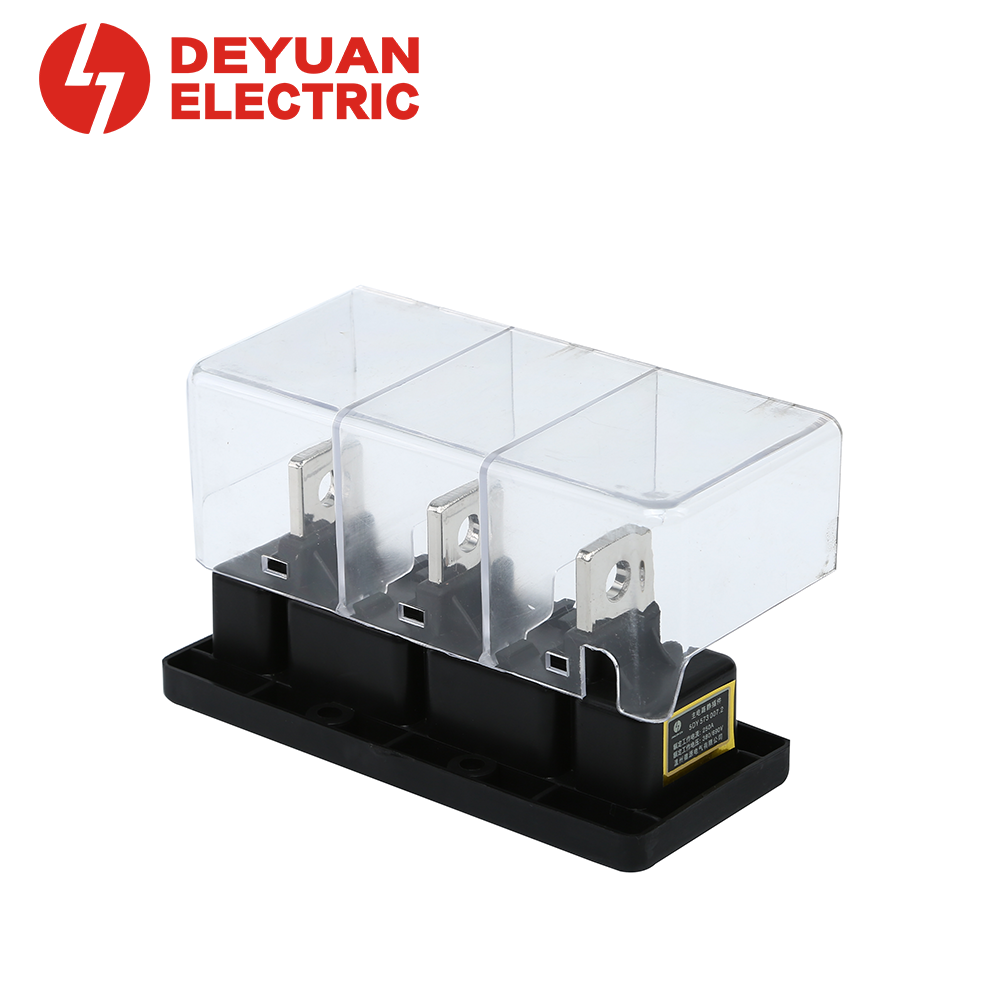

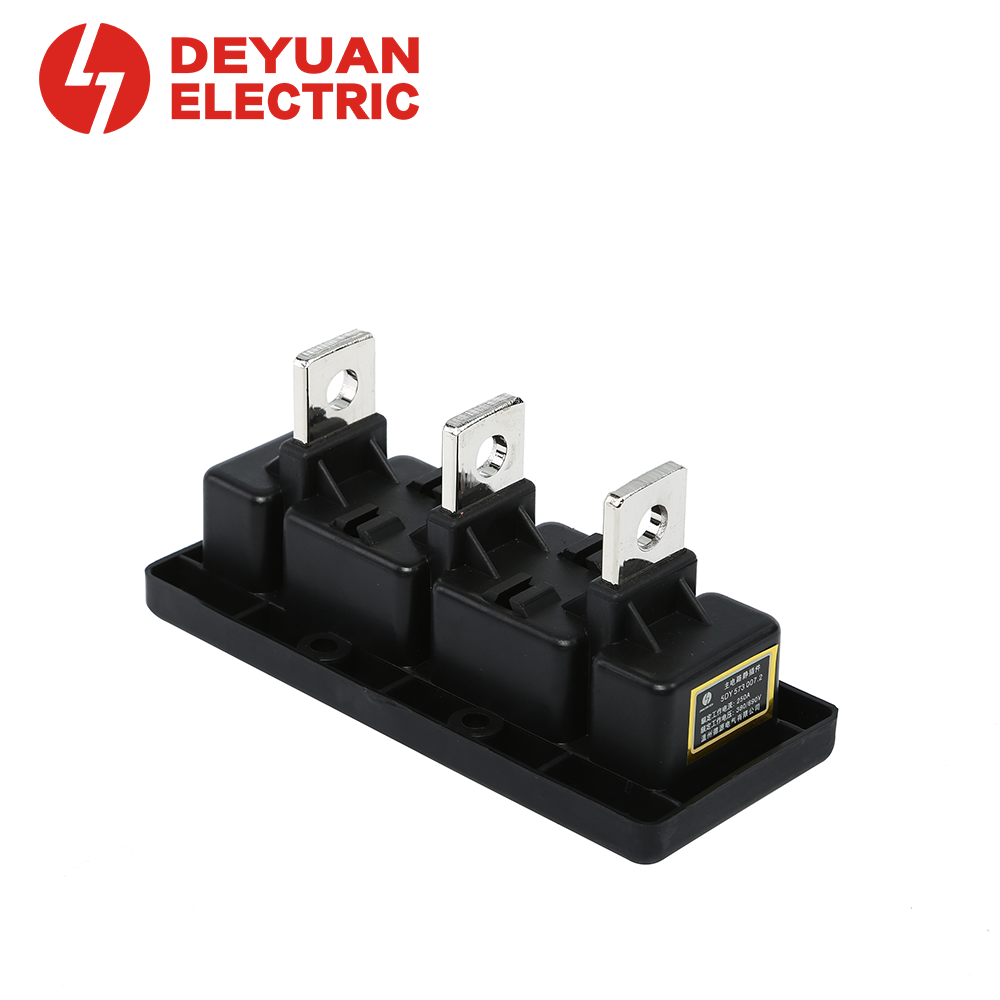

5DY.573.007.2 Distance 50mm 3 Poles Fixed Socket
Matching fixed connector for DCT9 series moving connectors
This fixed socket is specifically designed to pair with the DCT9 series 3-pole main circuit moving connectors, forming a complete primary connection system for LV drawer switchgear with 50mm busbar phase clearance and 5mm thick vertical busbars.
Contact Us
Pairing Moving Connector
Product Details
| Description | Code | Rating |
| 250A 3-pole fixed socket | 5DY573007.2 | 250A / 50mm |
| 400A 3-pole fixed socket | 5DY573008.2 | 400A / 50mm |
Key Features
- Designed for 50mm phase distance – compact switchgear applications
- Mounts directly on vertical busbar (5mm thickness)
- Reliable clamping force for stable main circuit connection
- Flame‑retardant insulating housing
Perfect for switchgear projects requiring 50mm phase spacing – reliable, precise, and ready to install.
 |  |
This fixed socket must be used with DCT9 3-pole main circuit connector as a matched pair. Both are required for proper drawer‑to‑busbar connection.
 | | |  | | |
| DCT9-B-3-125A | DCT9-B-3-250A | DCT9-B-3-400A | DCT9-B-4-125A | DCT9-B-4-250A | DCT9-B-4-400A |
