DCZ2-B-3 Side Wiring Fixed Connectors
Matching fixed connector for DCT2 side‑outgoing moving plug
The DCZ2 series is a primary fixed connector designed exclusively to pair with the DCT2 series main circuit moving plug. It mounts directly on the vertical busbar and completes the side‑wiring primary connection system for drawout switchgear.
Contact Us
Pairing Moving Connector
Product Details
- Side‑wiring design – optimised for economic drawer outgoing schemes
- Robust insulating housing – flame‑retardant V0 material
- Reliable clamping force – maintains stable contact with 6mm vertical busbar
- Compatible with 55mm phase clearance

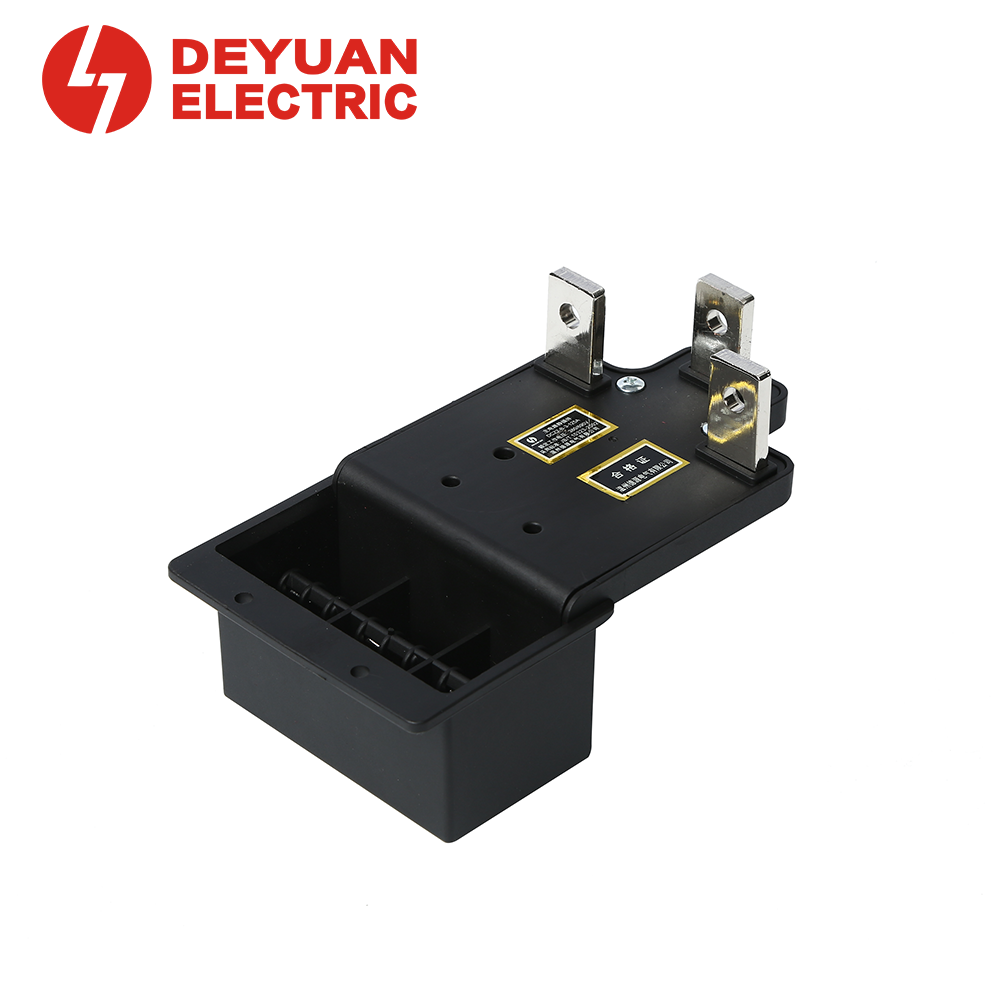

| Model No. DCZ2-B-3-125A |  |  |  |  |
| Rated Current 125A |  | |||
| Side Wiring Assembly Drawing |  | |||

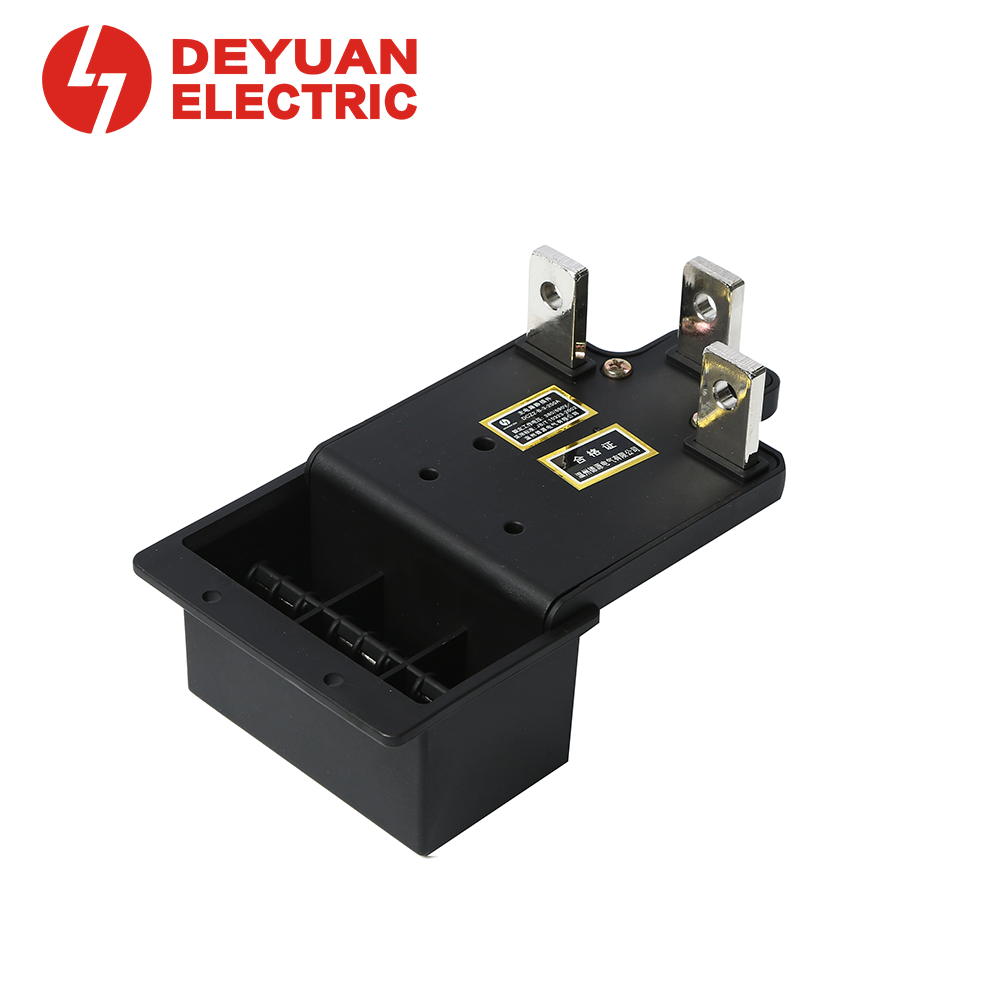

| Model No. DCZ2-B-3-250A |  |  |  |  |
| Rated Current 250A | | |||
| Side Wiring Assembly Drawing | | |||

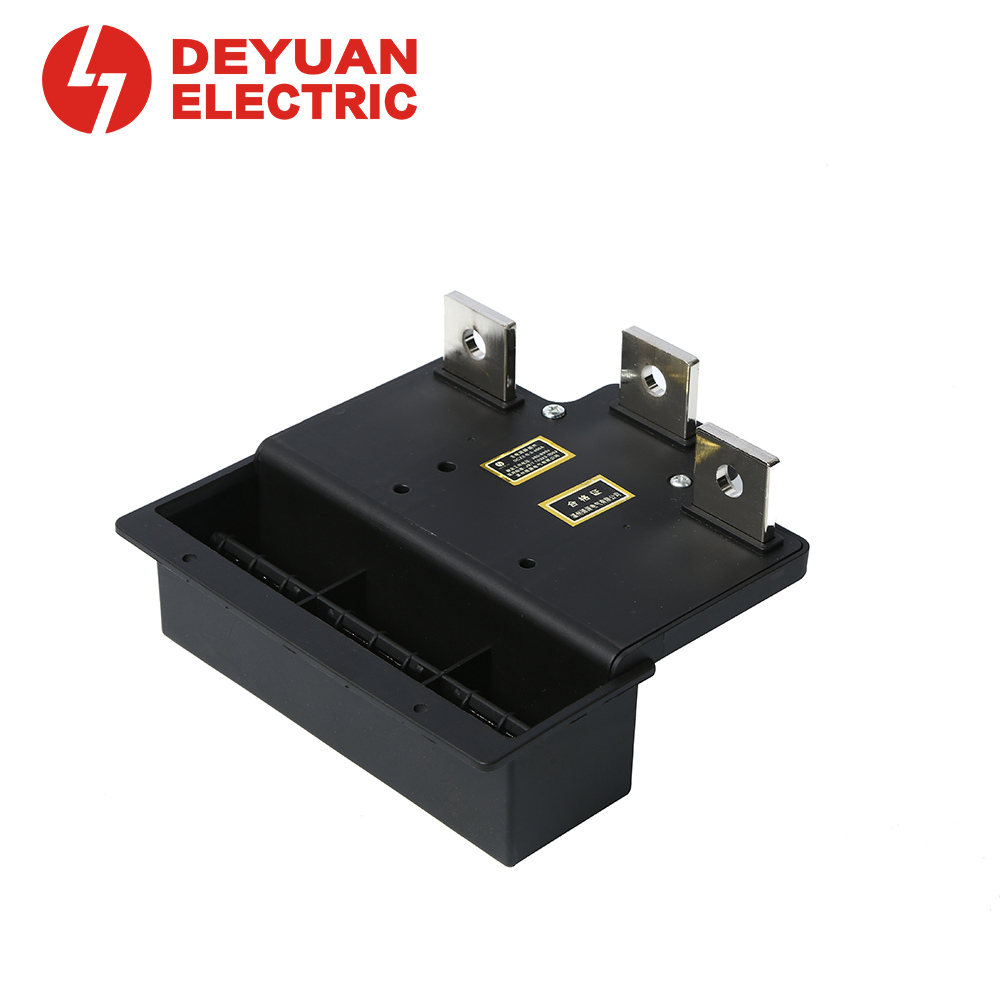

| Model No. DCZ2-B-3-400A |  |  |  |  |
| Rated Current 400A |  | |||
| Side Wiring Assembly Drawing | | |||

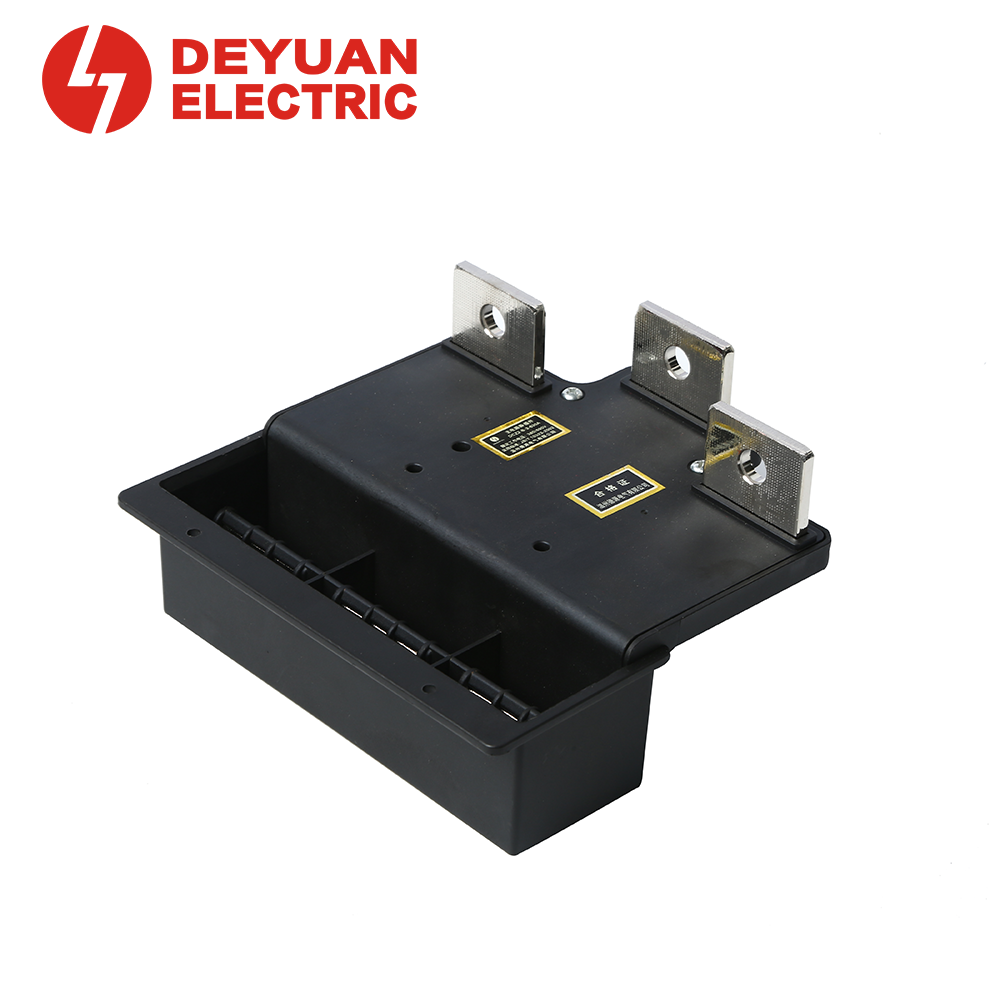

| Model No. DCZ2-B-3-630A |  |  |  |  |
| Rated Current 630A | | |||
| Side Wiring Assembly Drawing | | |||
 |  |  |  |
| DCT2-B-3-125A | DCT2-B-3-250A | DCT2-B-3-400A | DCT2-B-3-630A |
