DCZ7-B-3 Primary Fixed Connectors
Matching fixed connector for DCT7 series moving connectors

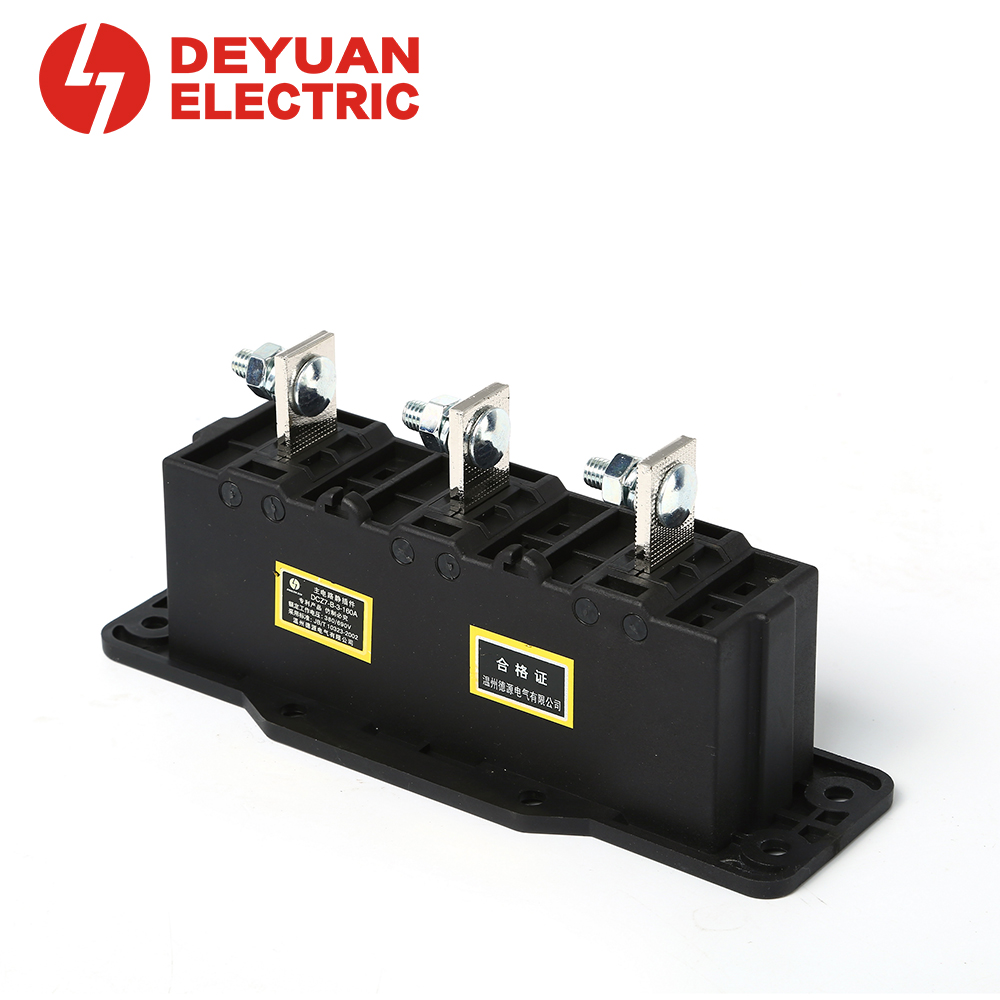

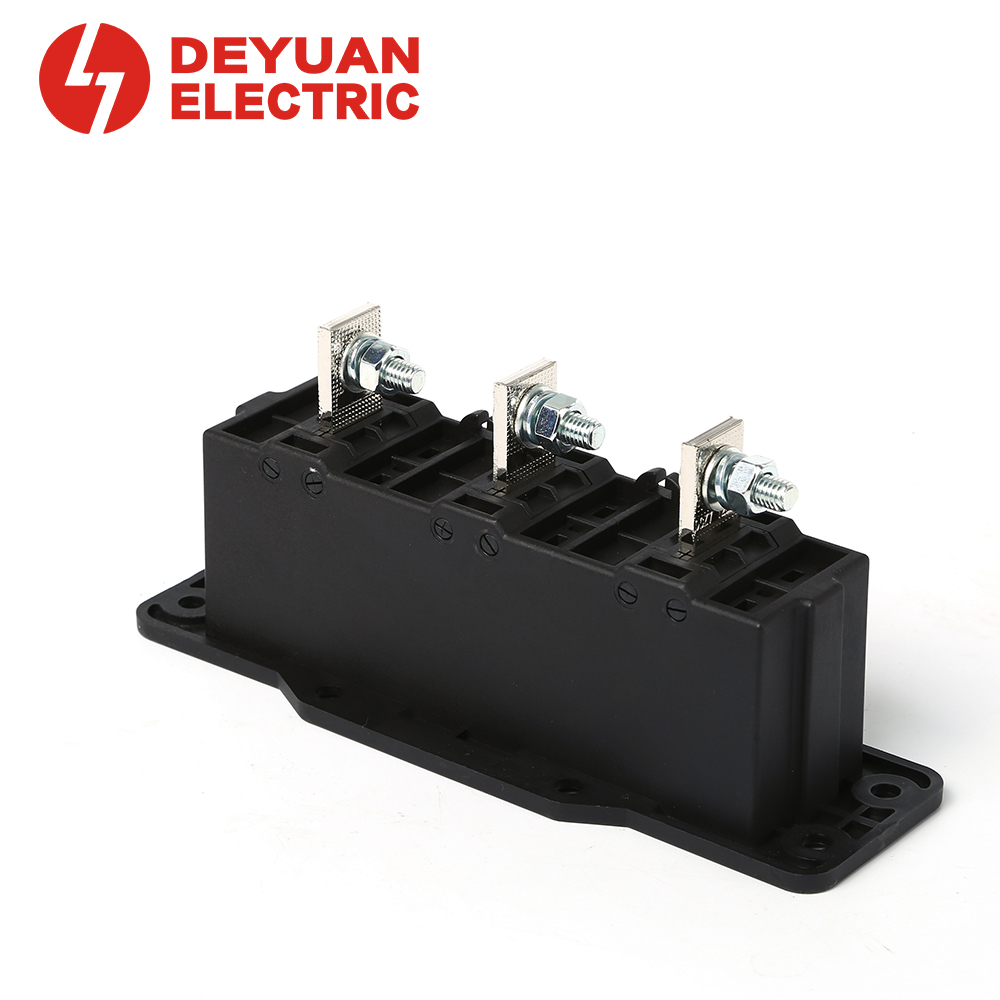

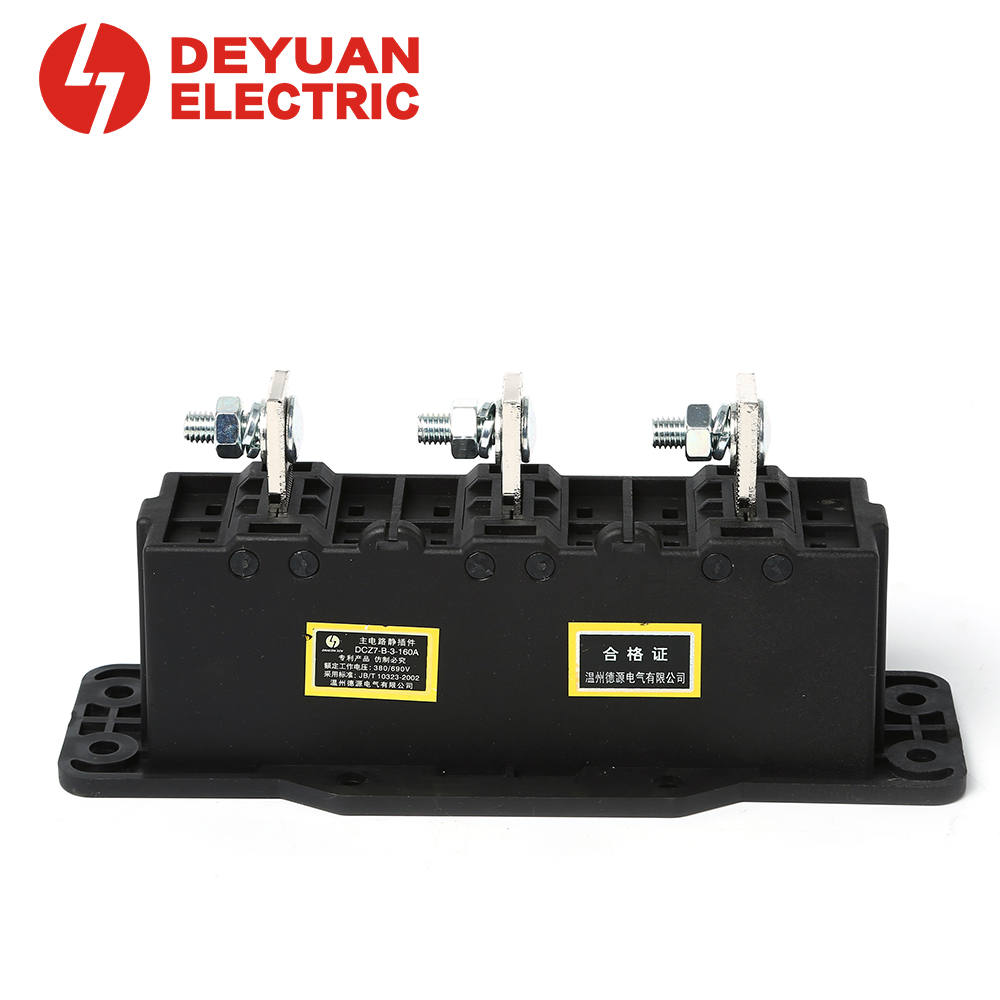

The DCZ7 series fixed connector is mounted on the vertical busbar inside the switchgear enclosure. It is designed exclusively to pair with the DCT7 series moving connector, completing a reliable primary circuit connection system.
Contact Us
Pairing Moving Connector
Product Details
- Unified cutout size with DCT7 series – same mounting hole pattern for 125A‑630A
- Flat‑type termination for easy busbar connection
- Rated current: 80A, 125A, 160A, 250A, 400A, 630A
- Rated voltage: AC690V | Insulation voltage: 1000V
- Phase clearance: 55mm | Busbar thickness: 6mm
Matching accessories

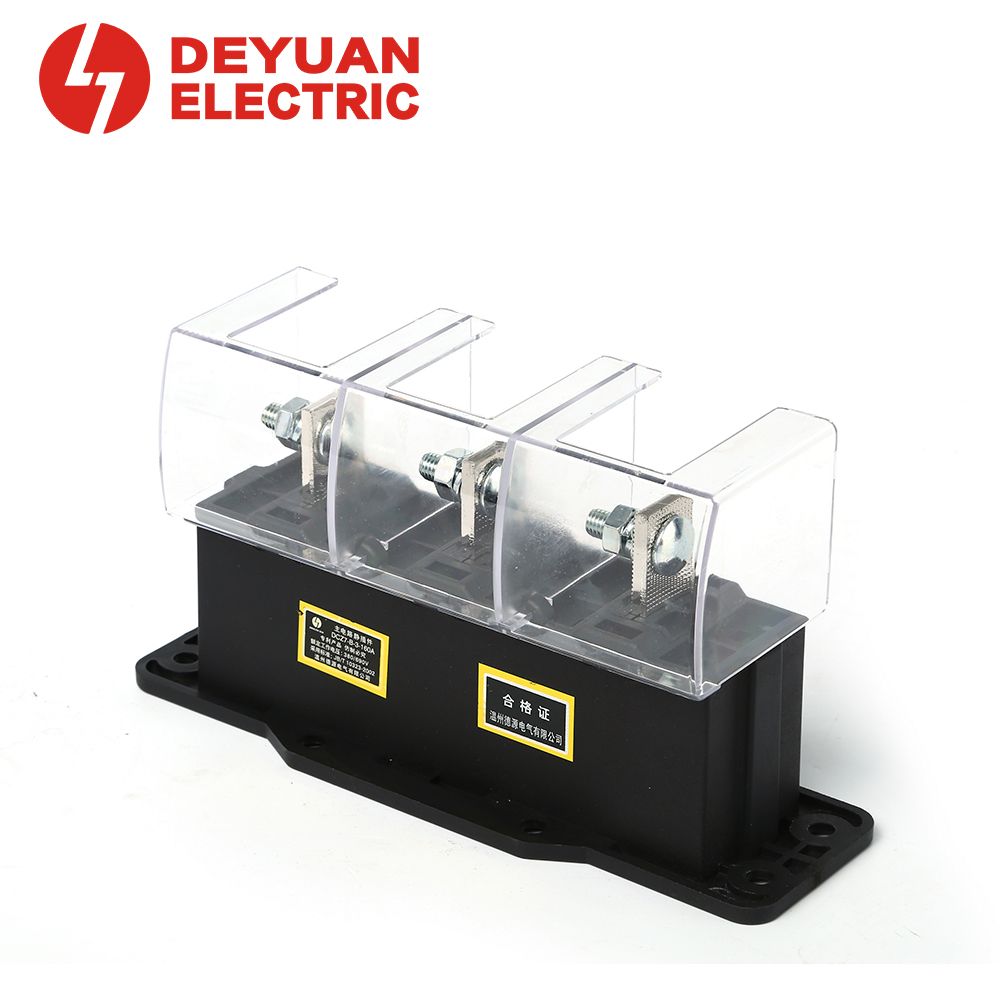

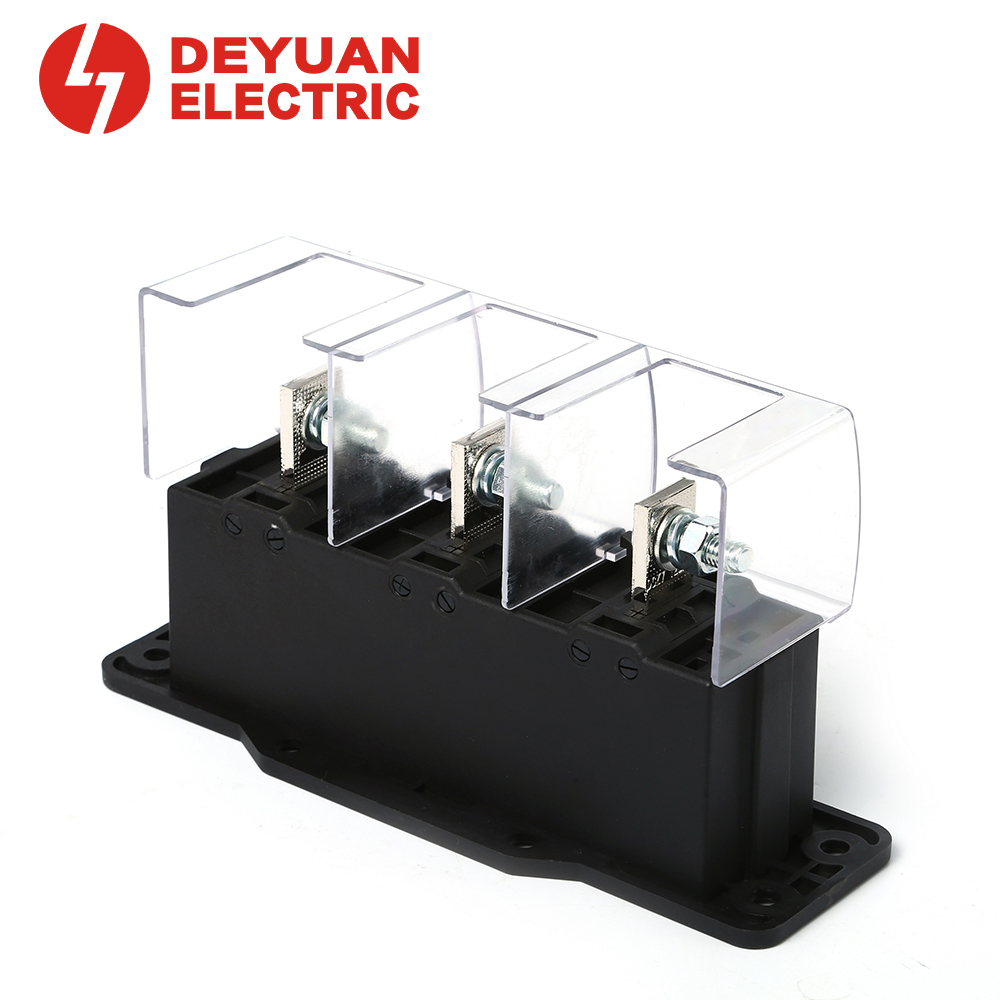

- DJXZ7 Primary Incoming Cover (125‑630A common)
- DXCZ7 Series Busbar Holder (for 6×30 to 6×100 mm busbars)
DCZ7 Series fixed connector must be used with the DCT7 series moving connector as a matched pair.
 | | | |
| DCT7-B-3-125A | DCT7-B-3-250A | DCT7-B-3-400A | DCT7-B-3-630A |
