DJCF2 Series Auxiliary Contact Connector

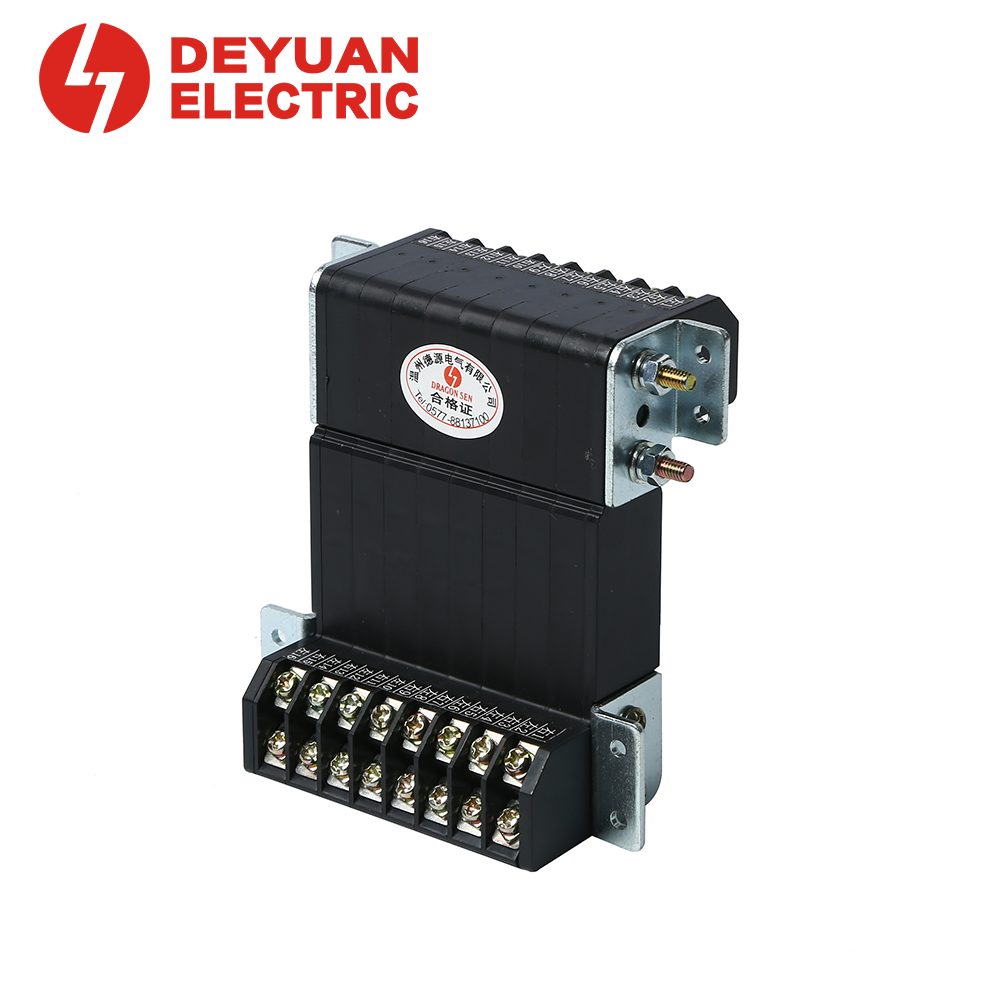

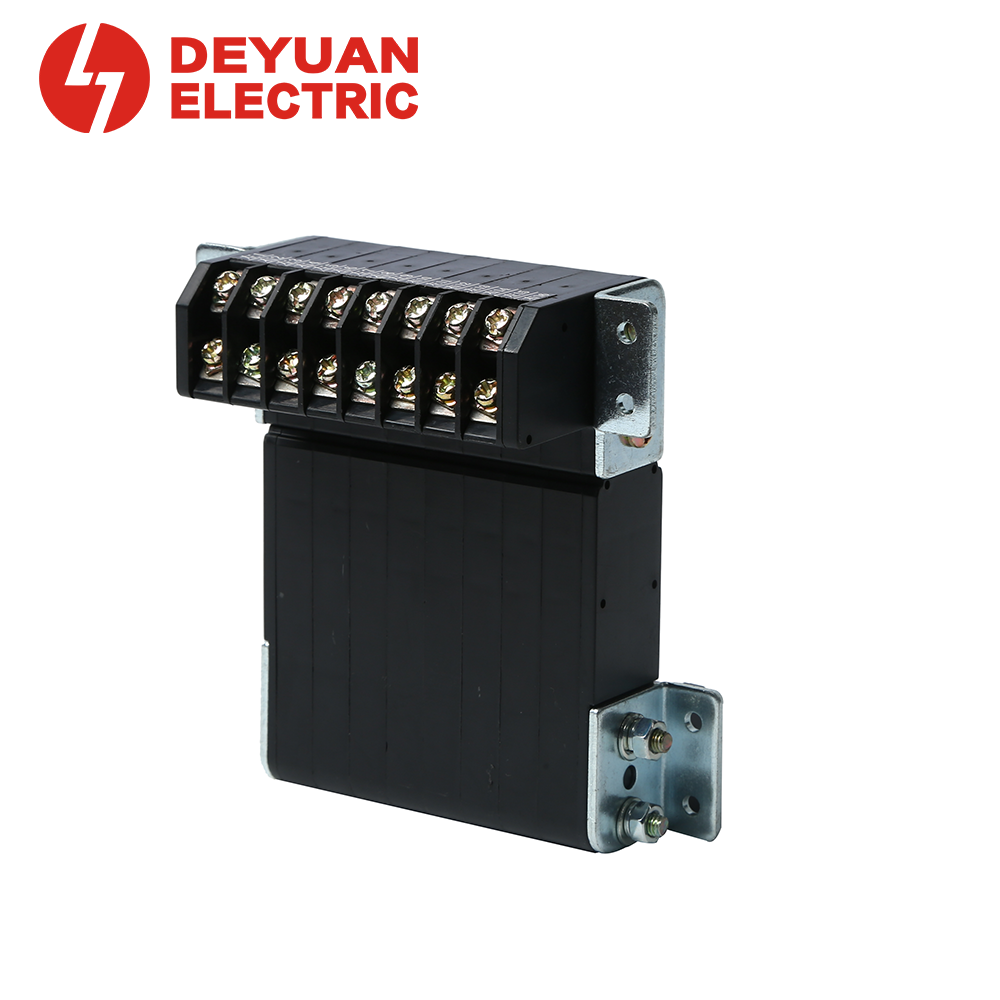

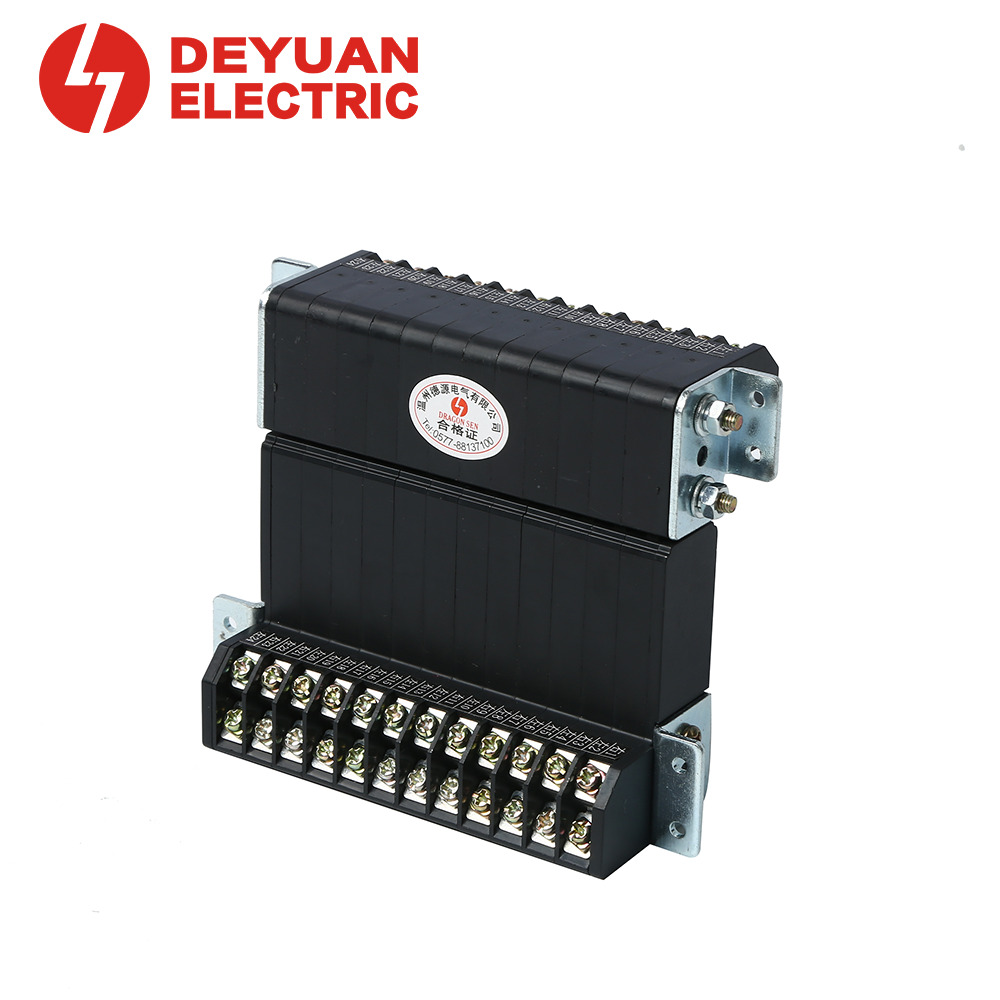

DJCF2 Series Auxiliary contact connector (Side Wiring)
Economical side outgoing solution with three‑position function
The DJCF2 series Auxiliary contact connector are specifically designed for economical side outgoing schemes in low voltage drawout switchgear. They provide reliable control circuit connection with three‑position functionality (test, connection, disconnect) and can be equipped with optional test terminals. This series can directly replace B8E‑S8E type connectors.
Contact Us
Product Details
- Side wiring design – Optimized for side outgoing drawer configurations
- Three‑position function – Supports test, connection, and disconnect positions
- Optional test terminals – Available upon request
- Direct replacement – Compatible with B8E‑S8E type secondary connectors
- Rated current – 10A
- Rated voltage – AC 220V/380V, DC 110V
| Model No. | Contacts | A (mm) | B (mm) | C (mm) |
| DJCF2-6/12 | 6 pairs / 12 poles | 58.8 | 68.8 | 70.6 |
| DJCF2-8/16 | 8 pairs / 16 poles | 75 | 85 | 86.8 |
| DJCF2-12/24 | 12 pairs / 24 poles | 107.4 | 117.4 | 119.2 |
| DJCF2-15/30 | 15 pairs / 30 poles | 131.7 | 141.7 | 143.5 |
| Model No. | C (mm) | D (mm) | E (mm) | F (mm) |
| DRC7-5/10 | 110.3 | 55.4 | 82.1 | 130.1 |
| DRC7-6/12 | 119.5 | 64.6 | 91.3 | 139.3 |
| DRC7-8/16 | 137.7 | 83 | 109.7 | 157.7 |
| DRC7-10/20 | 156.1 | 101.4 | 128.1 | 176.1 |
| DRC7-12/24 | 174.5 | 119.8 | 146.5 | 194.5 |
| DRC7-15/30 | 202.1 | 147.4 | 174.1 | 222.1 |
| DRC7-16/32 | 211.3 | 156.6 | 183.3 | 231.3 |
