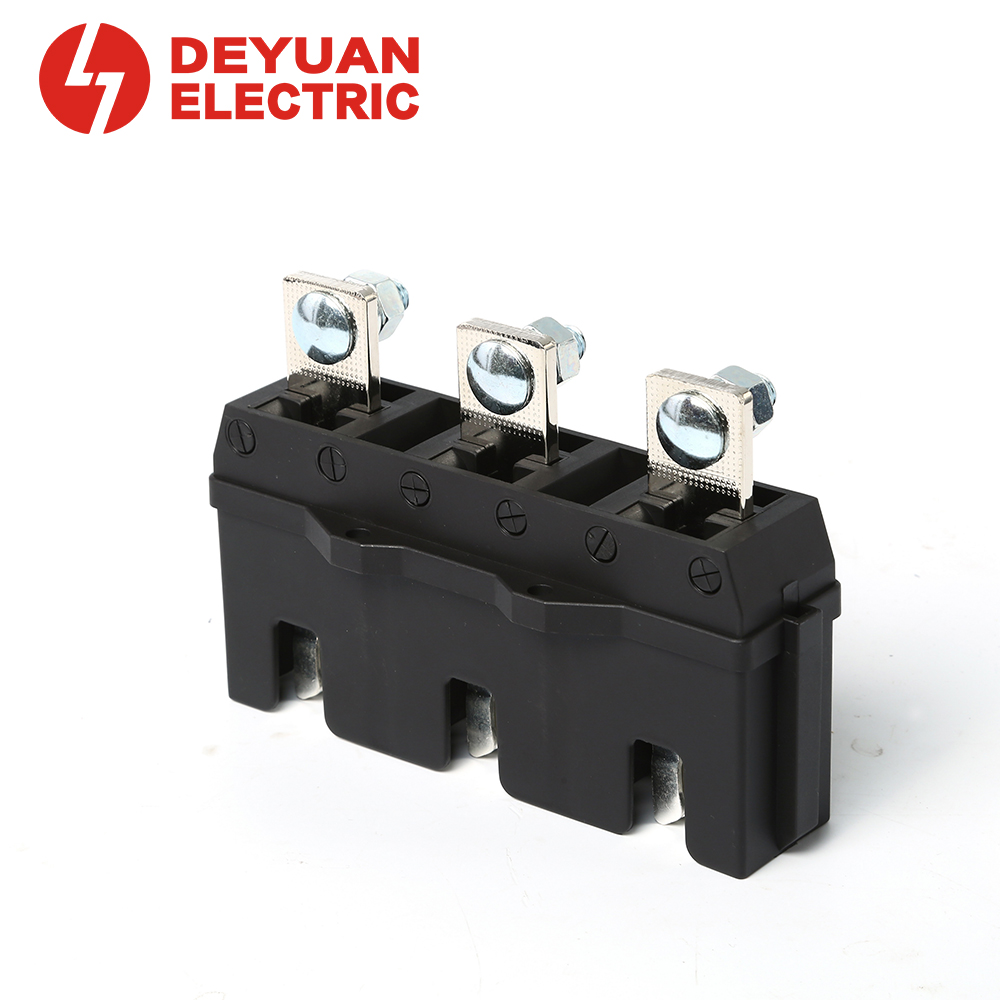

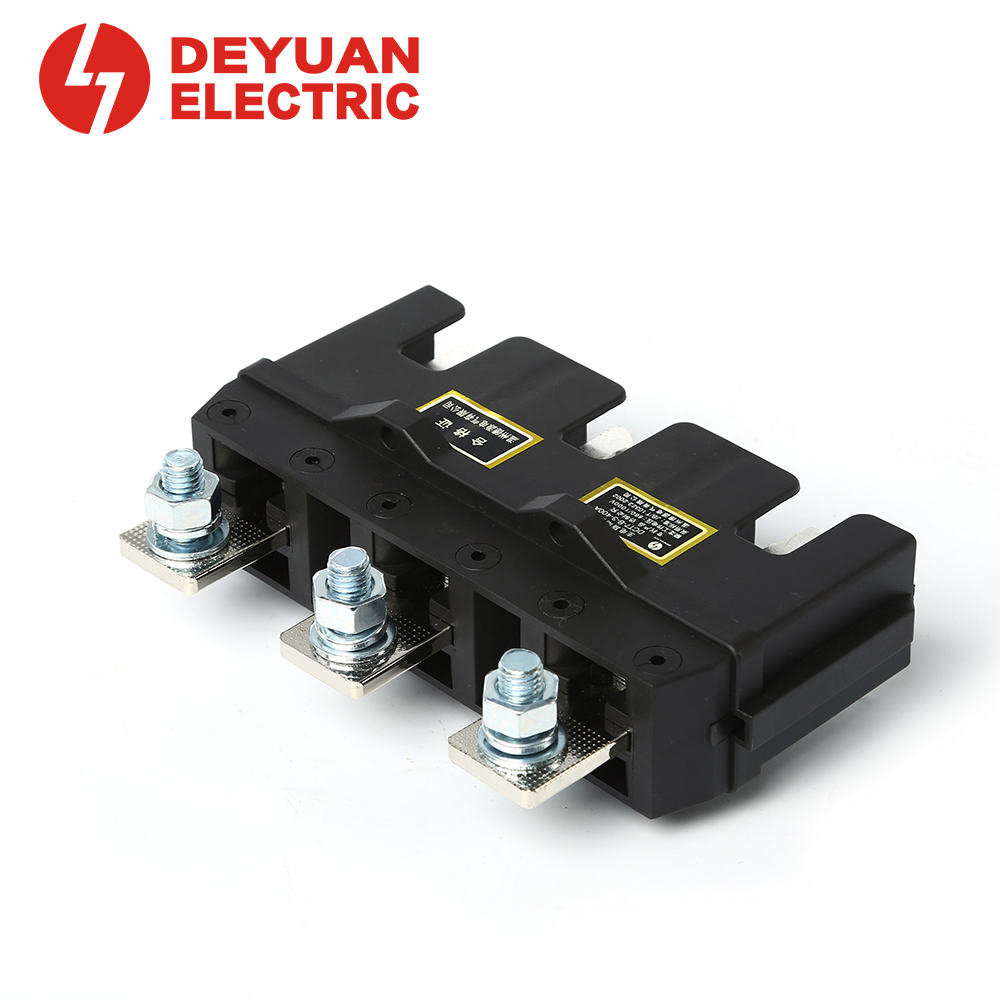

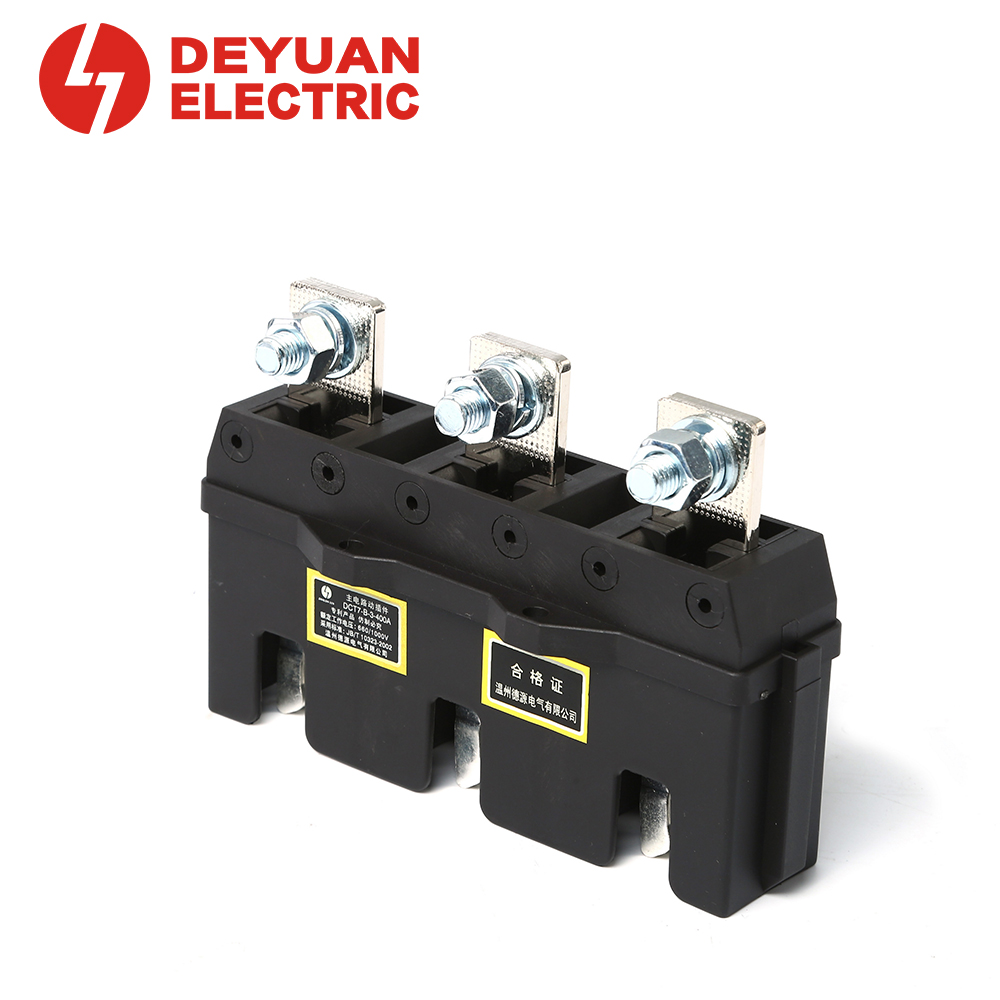

DCT7 Series 3-Pole Drawout Connector
3-Pole Drawout Connector – DCT7 Series for LV Switchgear

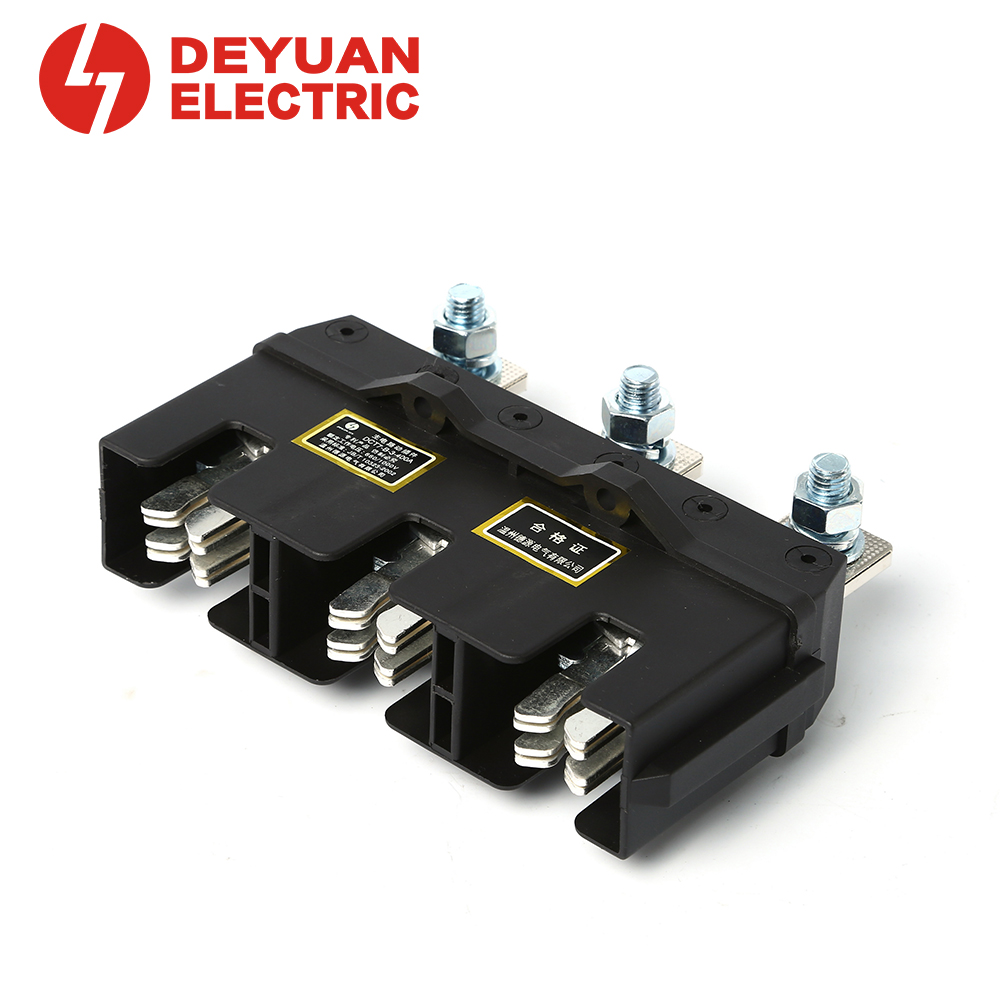

Reliable main circuit connection with U‑type spring contact
The DCT7 series Drawout Connector is designed for drawer‑type LV switchgear. Its U‑type spring contact ensures consistent contact pressure and reliable power transmission. Built‑in guiding features make mating with the fixed connector effortless and accurate.
From standard assemblies to high‑volume OEM – DCT7 delivers economy, standardization, and reliable performance.
Contact Us
Pairing Fixed Connector
Product Details
- Unified cutout size for 125A to 630A – simplifies panel production and reduces inventory
- Flat‑type termination with square neck screws – allows power tool assembly for higher efficiency
- Rated current: 80A, 125A, 160A, 250A, 400A, 630A
- Rated voltage: AC690V | Insulation voltage: 1000V
- Withstand voltage: 3500V | Phase clearance: 55mm | Busbar thickness: 6mm
The DCT7 series Drawout Connector must be used with the DCZ7 series fixed connector as a matched pair.
 | | | |
| DCZ7-B-3-125A | DCZ7-B-3-250A | DCZ7-B-3-400A | DCZ7-B-3-630A |
