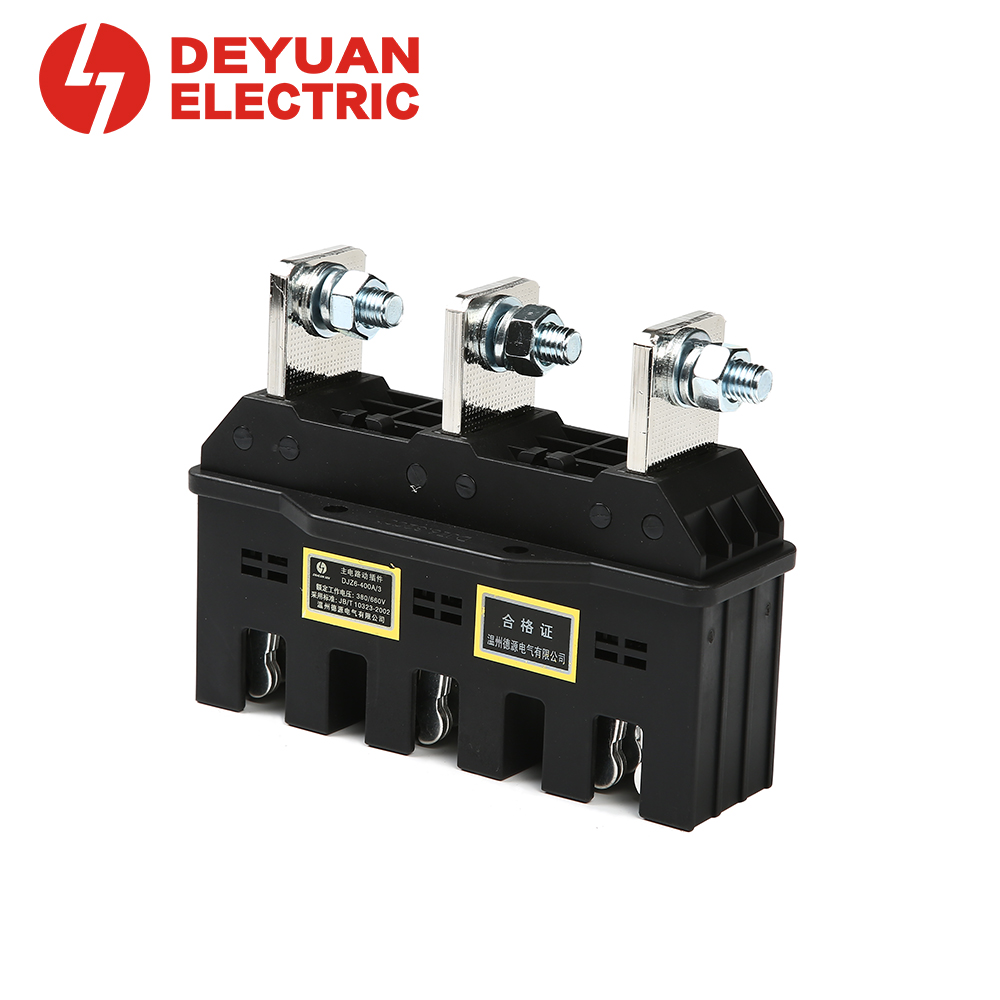

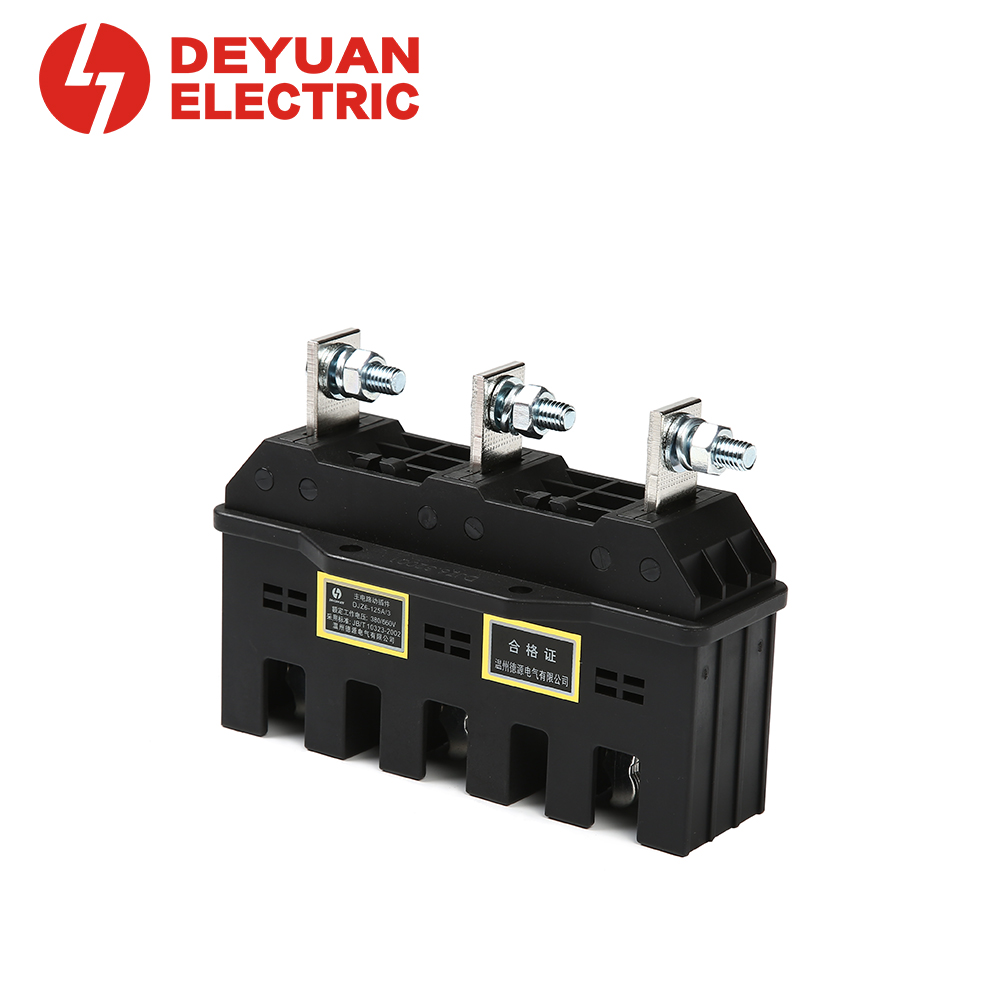

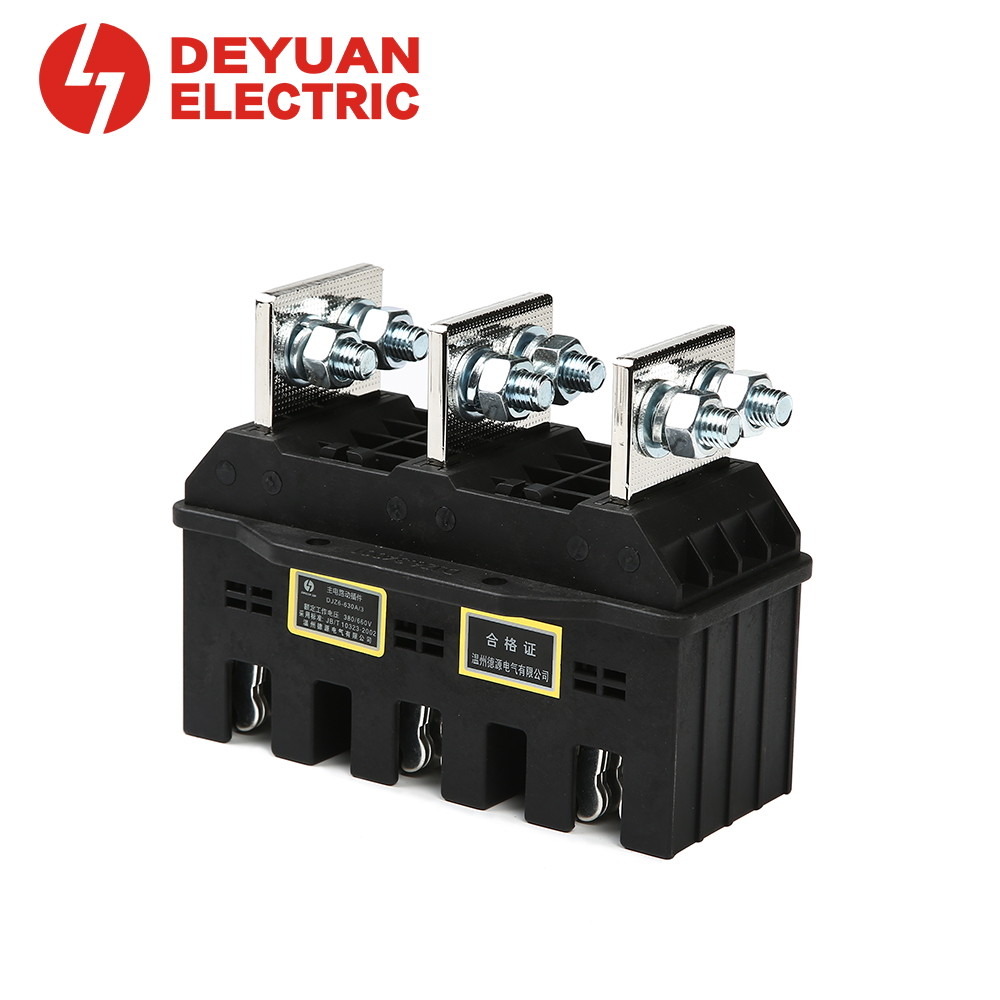

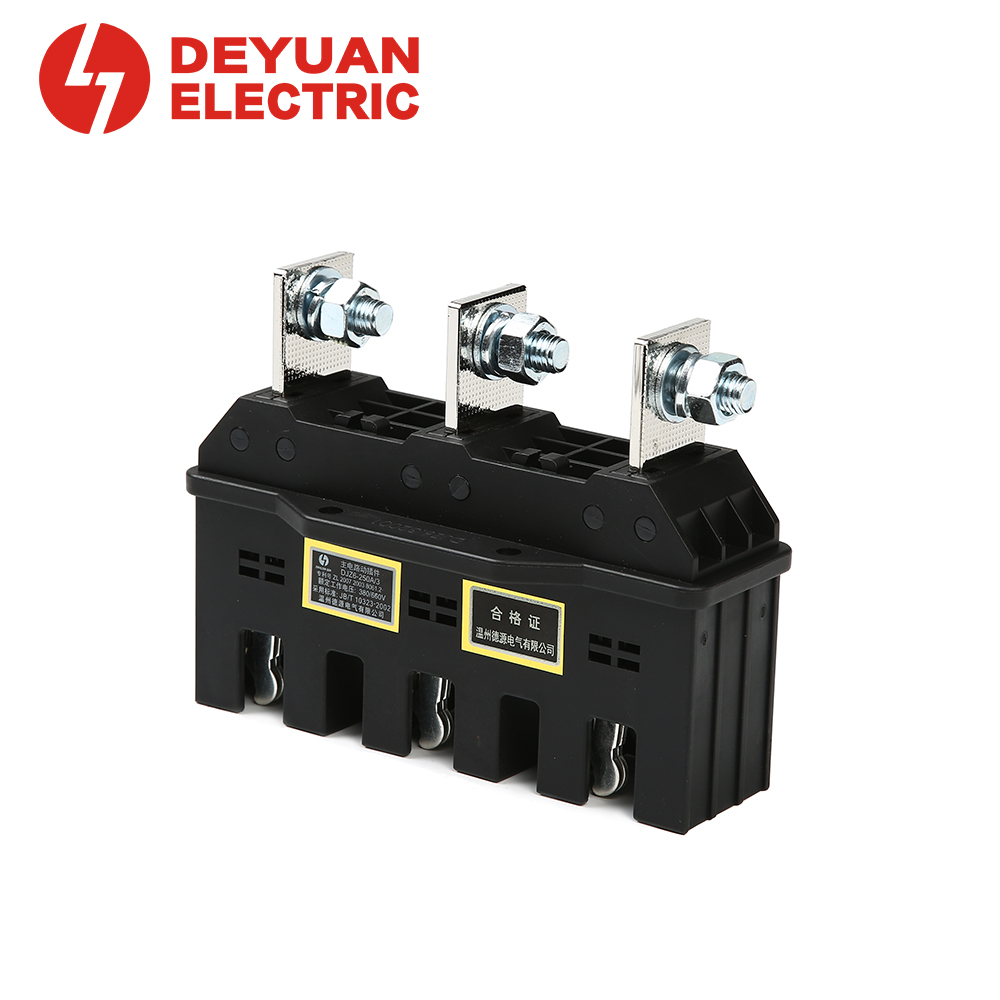

DJZ6 Series Main Circuit Moving Connectors
The DJZ6 moving connectors are designed for main circuit power transmission between MCC drawer units and vertical busbars. Featuring a patented double‑clip contact structure, they ensure stable plug‑in performance even after repeated operations.
Contact Us
Pairing Moving Connector
Product Details
| Rated voltage | AC690V |
| Rated current | 80A, 125A, 250A, 400A, 630A |
| Rated insulation voltage | 1000V |
| Power frequency withstand voltage | 3500V |
| Vertical busbar phase clearance | 55mm |
| Vertical busbar thickness | 6mm |
Key Advantages:
- Double‑clip design – reliable and durable connection
- Convex point between inserts – increases surface area for better heat dissipation
- Ventilation slots on both plug and socket housing – effectively reduces temperature rise
- Full current range – 80A, 125A, 250A, 400A, 630A
- Standardized cutout – 80A to 400A share the same mounting hole size, simplifying panel production and inventory management
 |  |
DJZ6-3 Series Main circuit moving connectors must be used with our DJT1-3 Series Main Circuit Fixed connectors
 |  |  |  |
| DJT1-125A/3 | DJT1-250A/3 | DJT1-400A/3 | DJT1-630A/3 |
