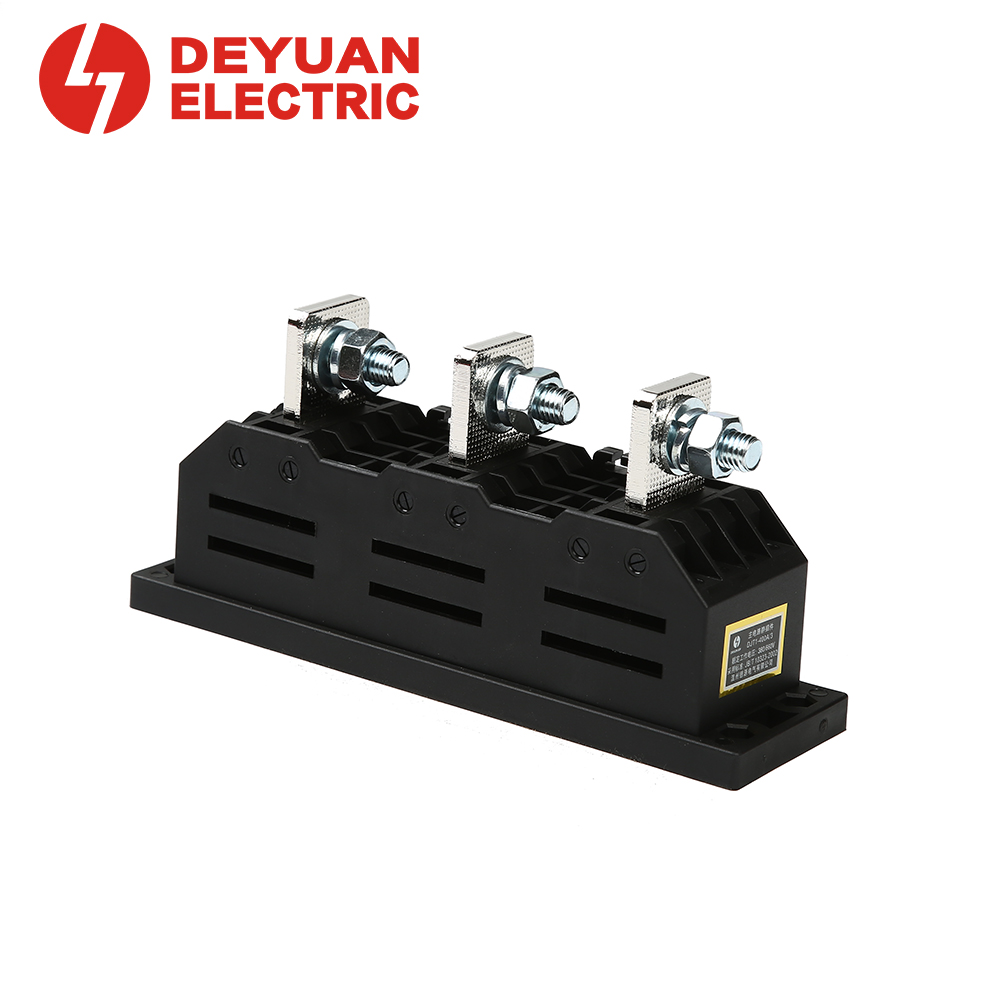

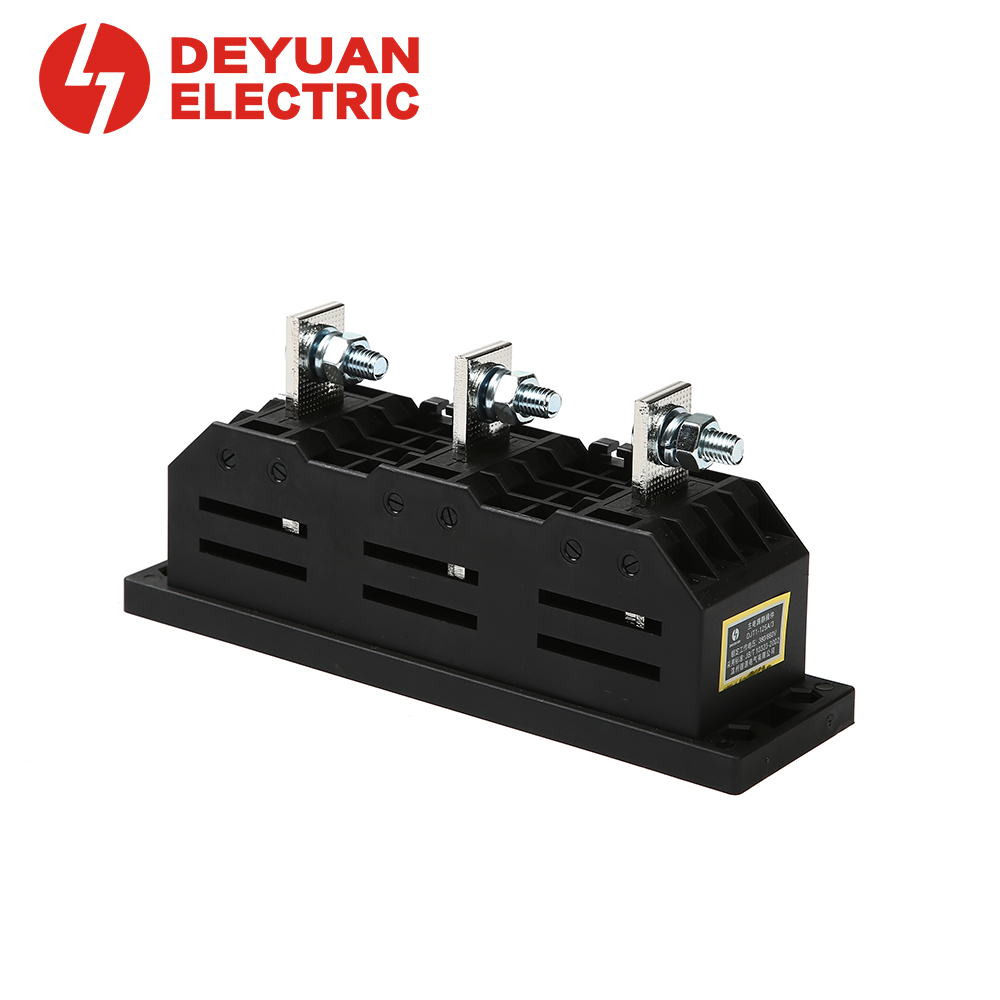

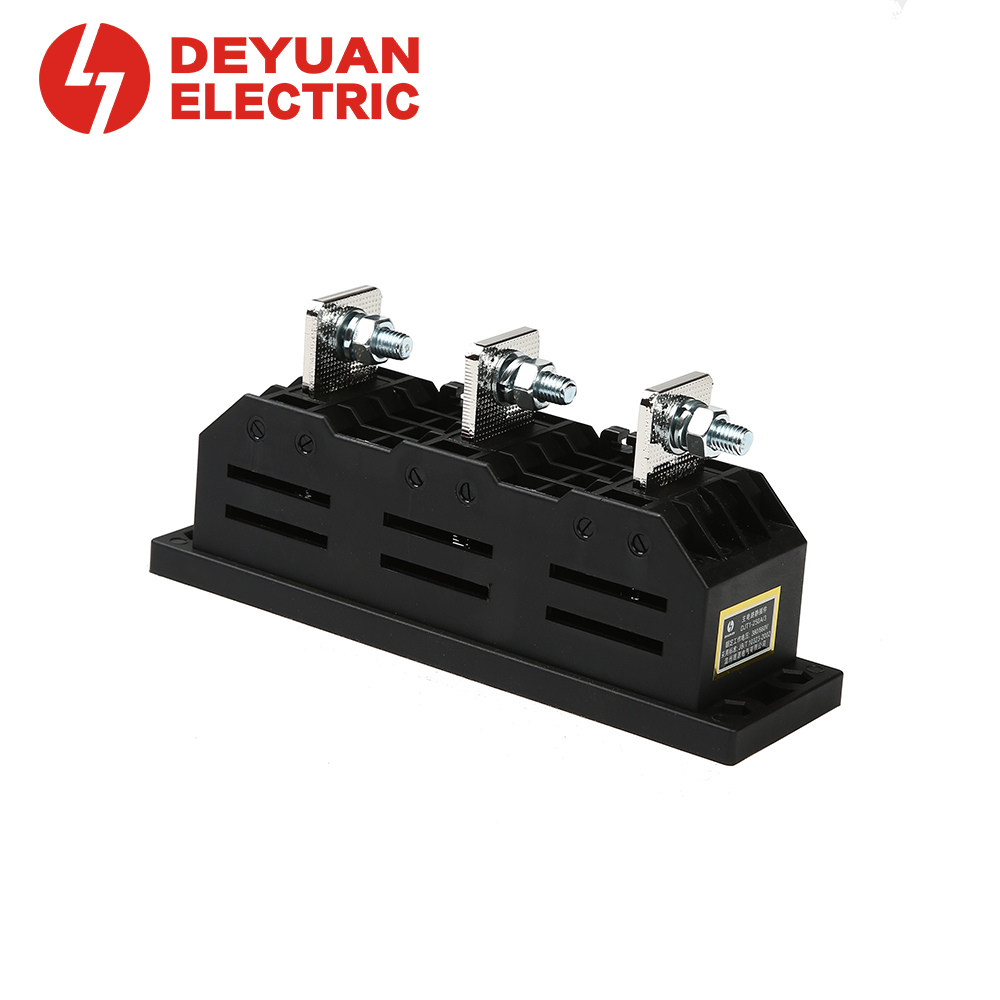

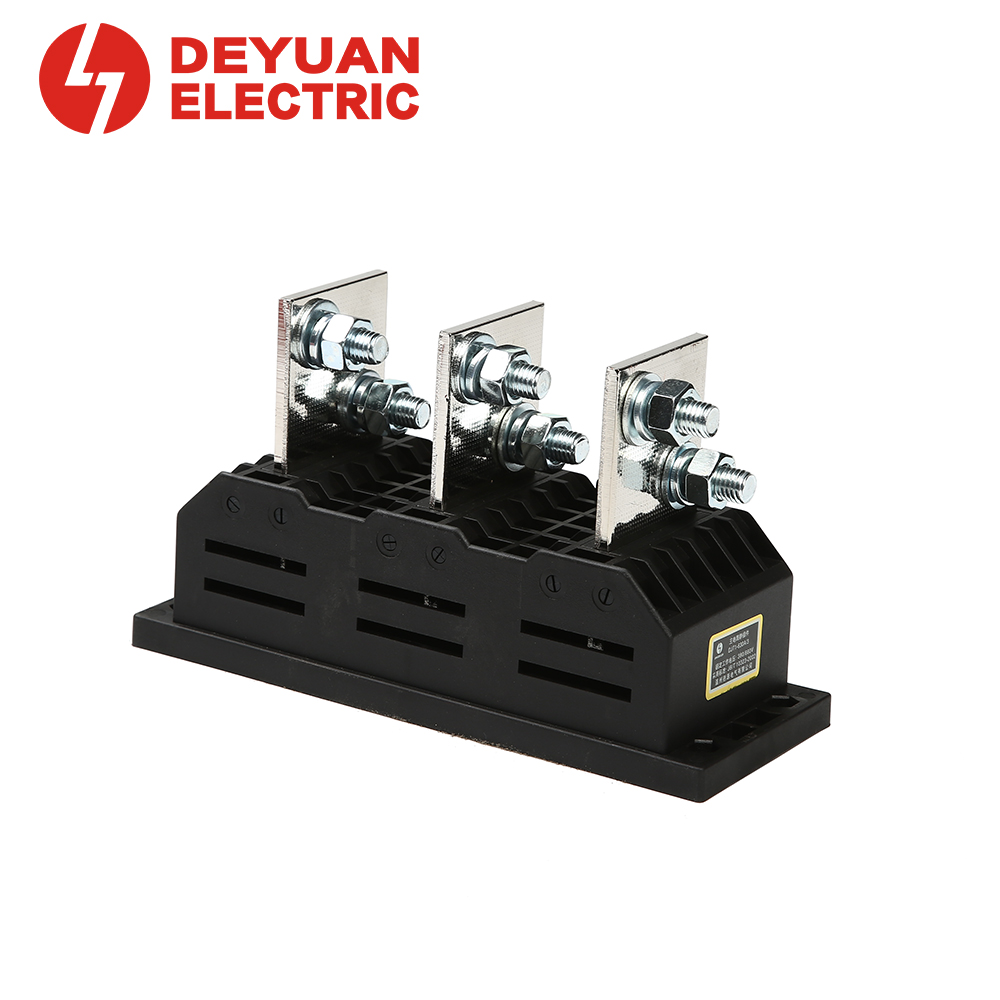

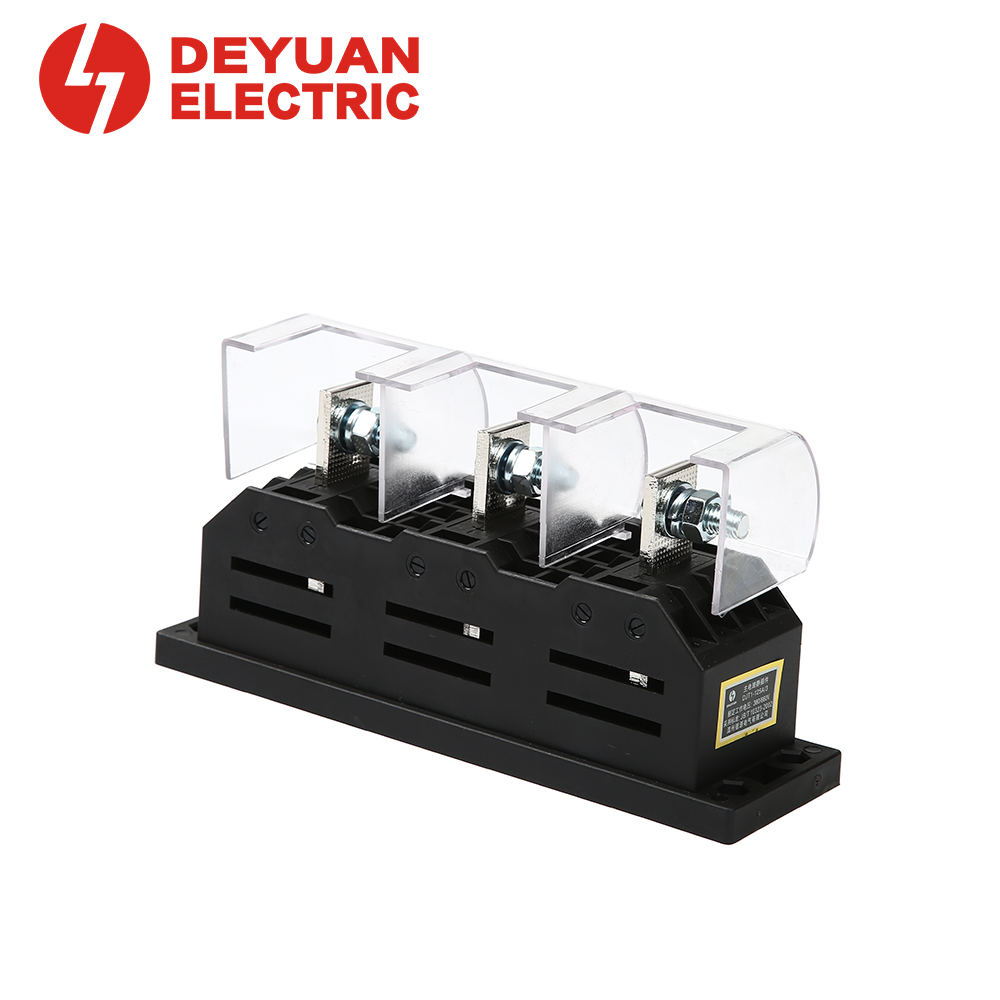

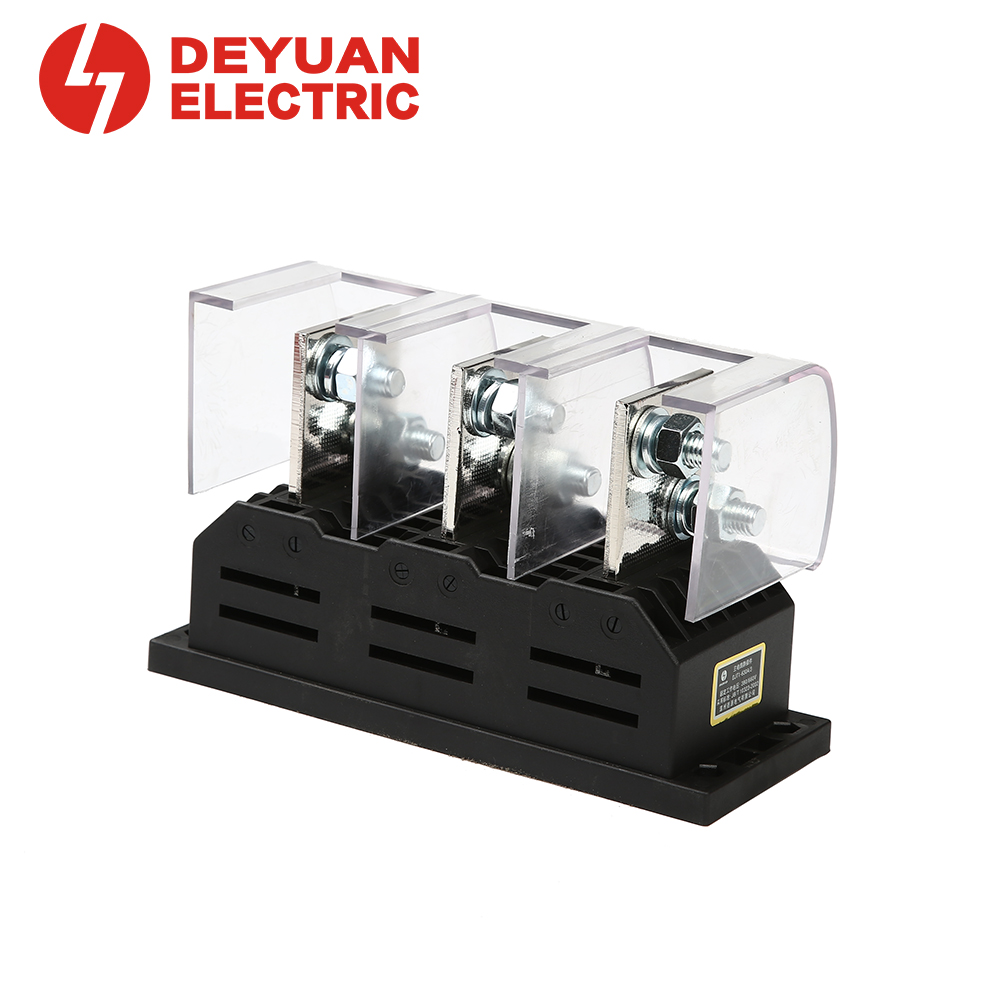

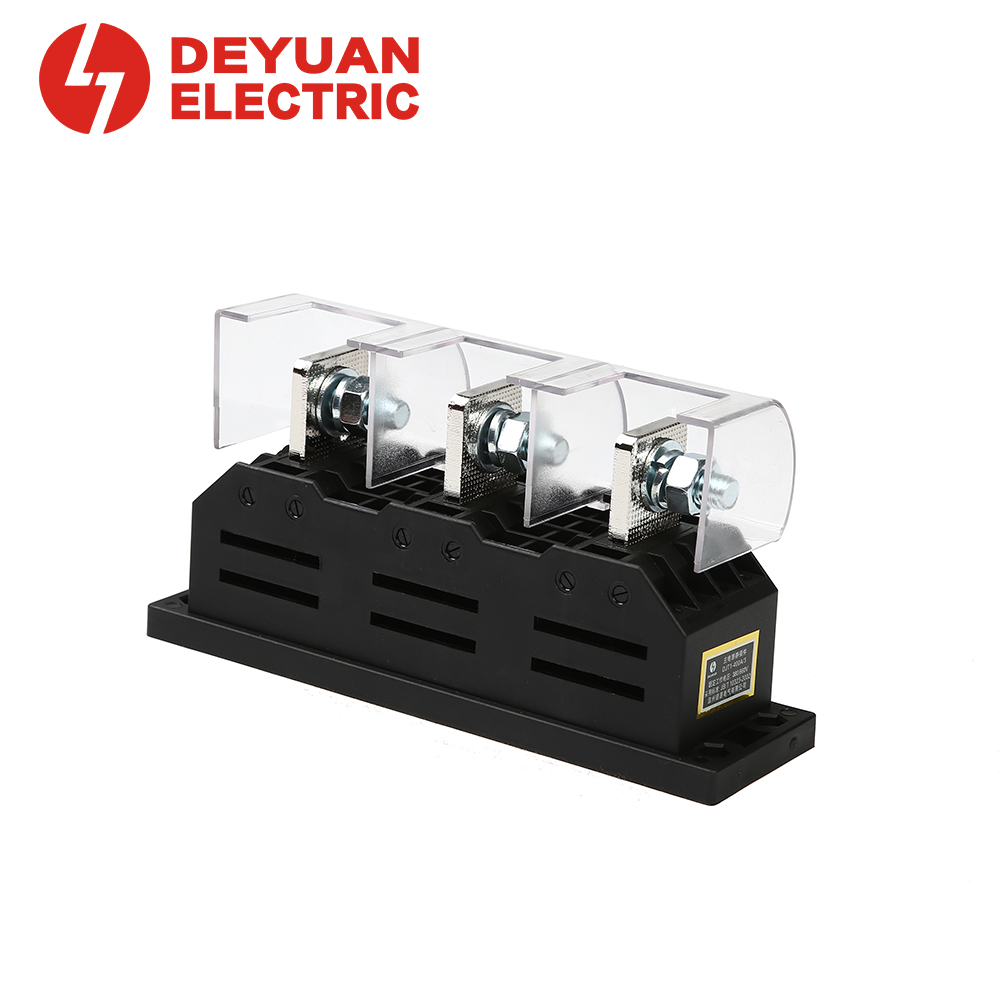

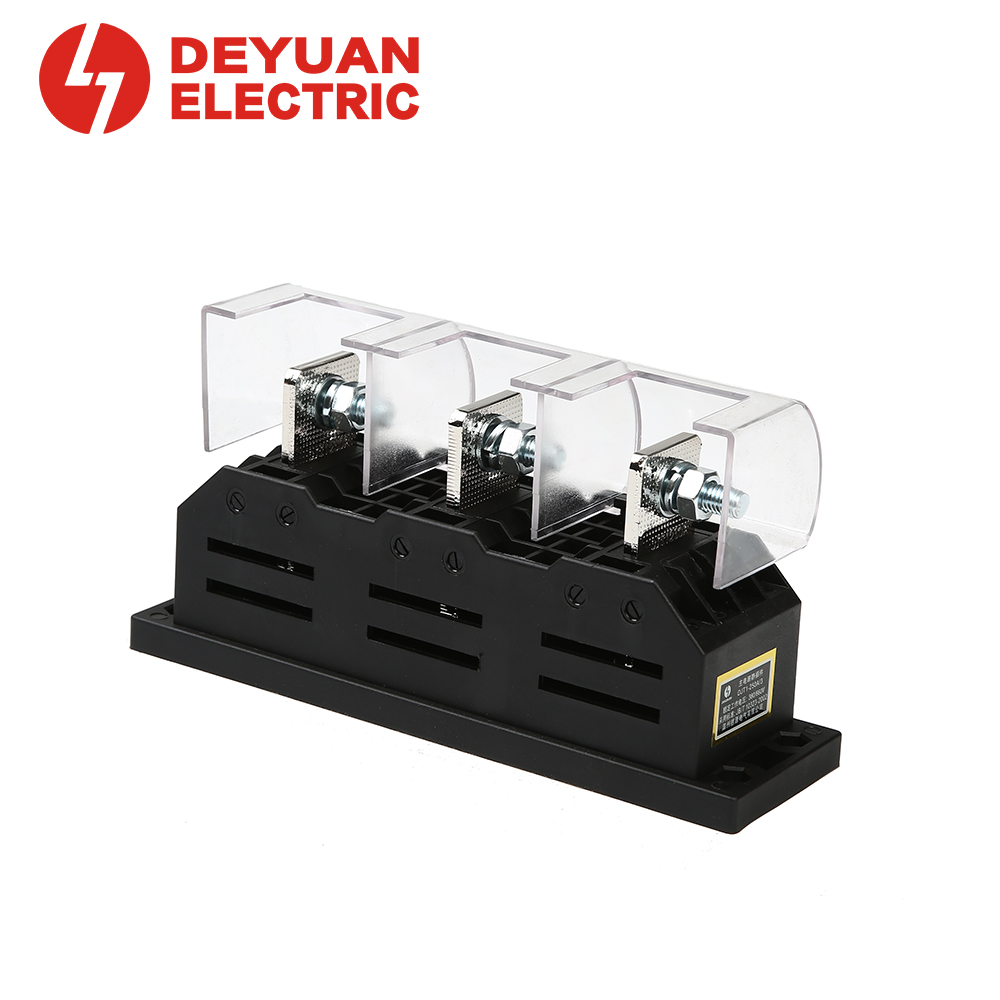

DJT1 Series Main Circuit Fixed Connectors
Matched fixed connector for DJZ6 series moving connectors
The DJT1 series fixed connectors are designed exclusively to pair with our DJZ6 series moving connectors, forming a complete primary circuit connection system for LV drawer switchgear. Mounted on the vertical busbar inside the enclosure, they provide reliable power transmission with low temperature rise and stable contact force.
Contact Us
Pairing Fixed Connector
Product Details
- Exact mating – engineered specifically for DJZ6 moving connectors
- Rated current – compatible with 80A to 630A applications
- Standard phase clearance – 55mm for easy integration
- Robust housing – flame‑retardant V0 material
 |  |
This DJT1 Series Main Circuit Fixed connectors must be used with the DJZ6 series moving connector as a matched pair. Both are required for proper main circuit connection.
 |  |  |  | | |
| DJZ6-125A/3 | DJZ6-250A/3 | DJZ6-400A/3 | DJZ6-630A/3 | DJZ2-125A/3 | DJZ2-250A/3 |
